SPECIAL - Electric Over Air Control System 12V - 4 Function - WIRED

PART #: CS110121SYS-12V-4-SP2

SPECIAL - Electric Over Air Control System 12V

RRP $2,179.63
$915.00
SAVE $1,264.63 (58%)
In Stock

SPECIAL - LOWER THAN COST OF COMPONENTS - 1 UNIT ONLY

58% DISCOUNT

ORIGINAL PRICE $2179.63

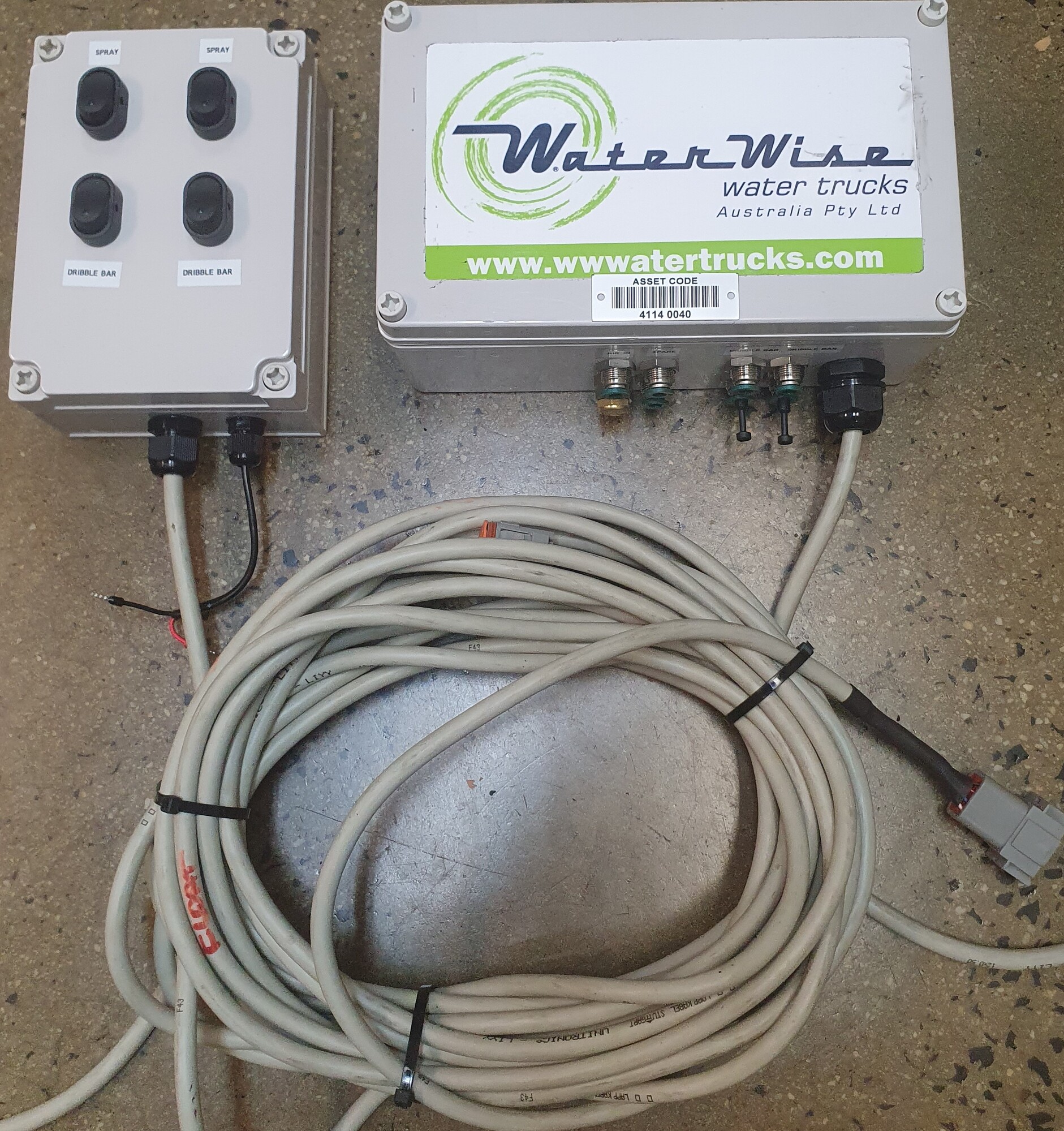

The CS110121SYS-12V-4-SP2 is a completely wired 4 Function 12 Volt control system, the in cab control box is internally wired with switches with LED's, while the air solenoids are housed in an external weather proof (IP65 rated) box that can be mounted on the tank.

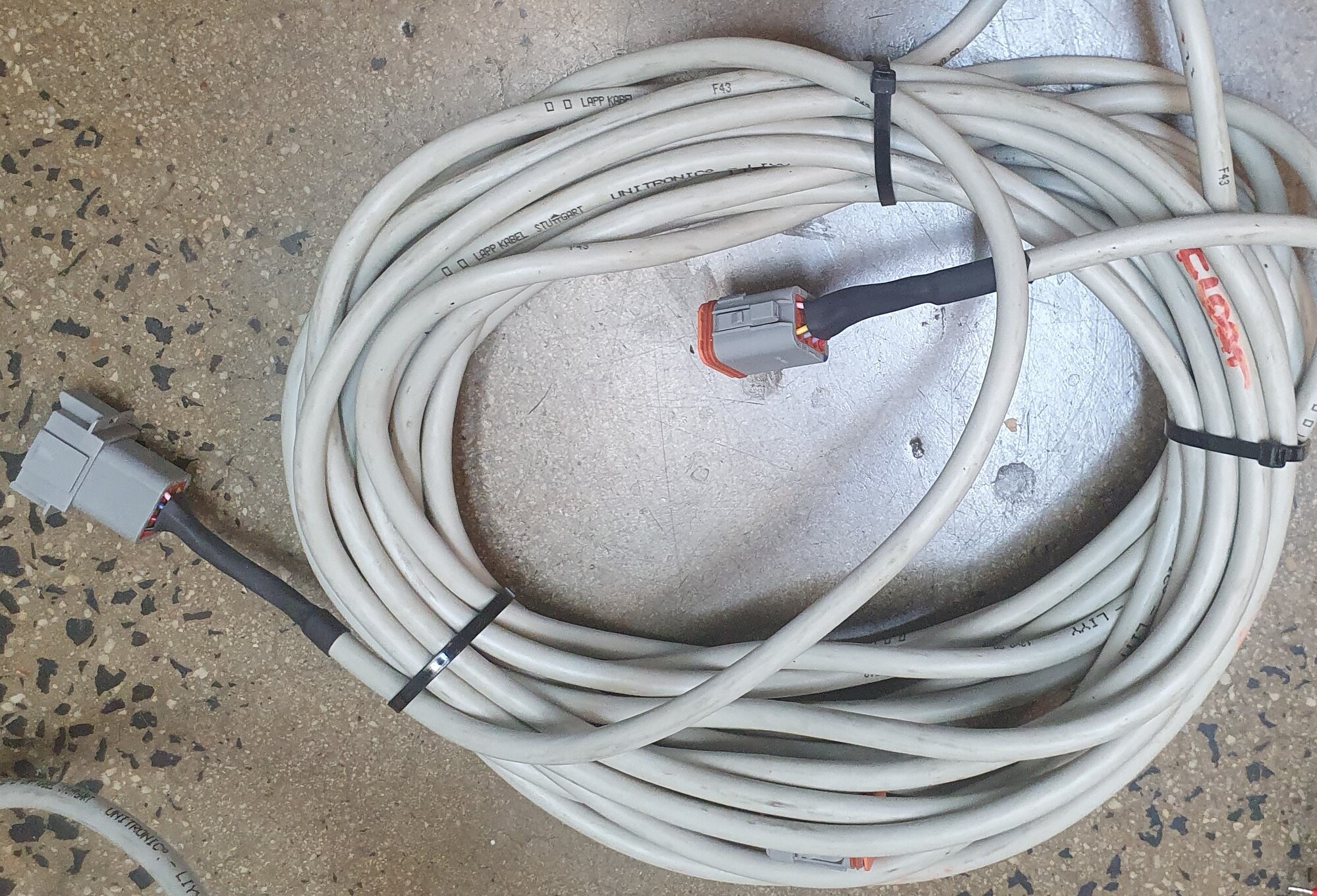

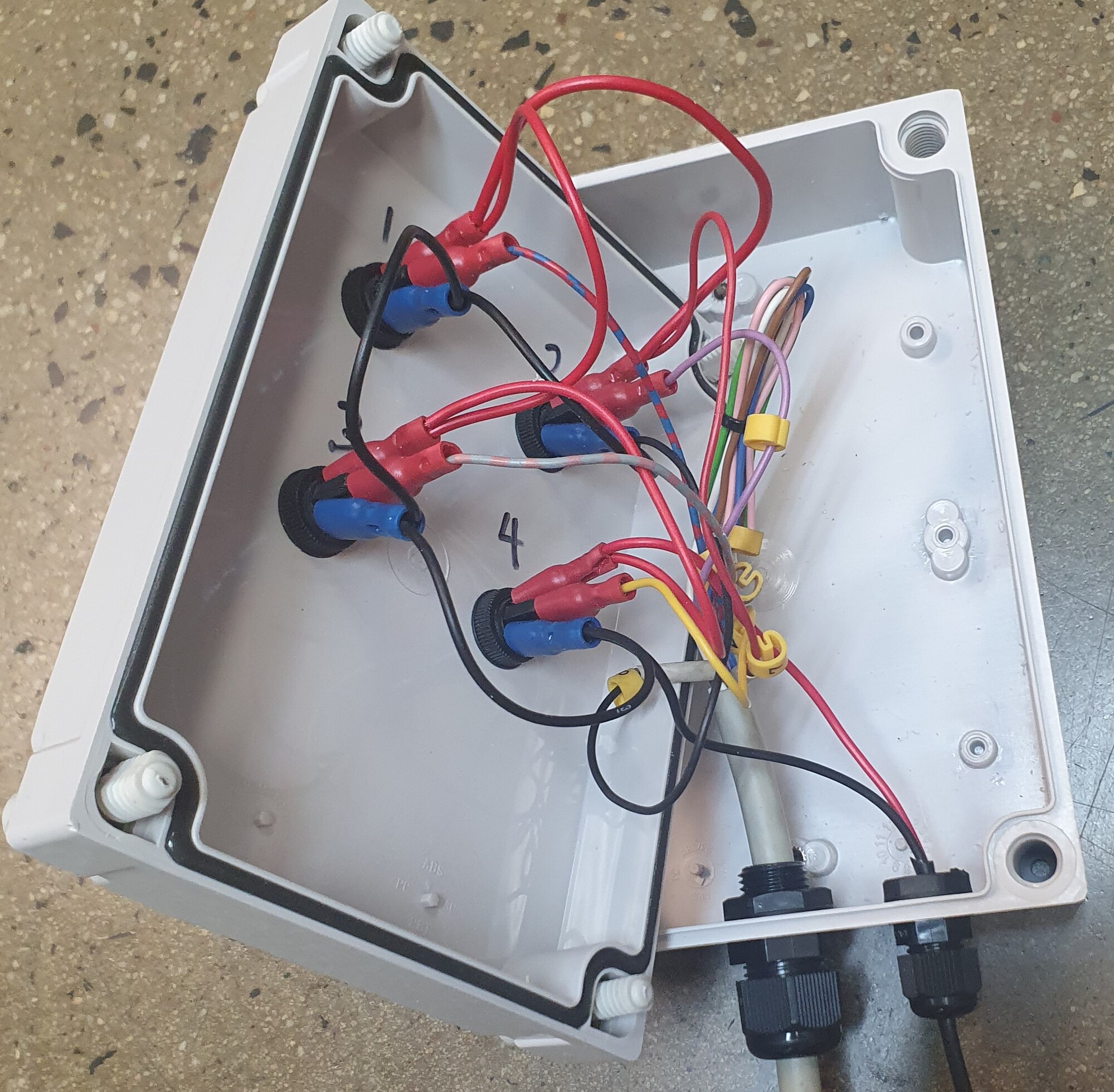

'In cab' control box has four (4) switches fully wired and mounted in a plastic enclosure (130 mm x 180 mm x 100 mm) with separate control cable and 8 pin deutsch plug & power lead.  Electrical solenoid cabinet has six (6) SMC solenoids mounted on a manifold in a plastic weatherproof IP65 rated enclosure (260 mm x 150 mm x 100 mm).  Solenoid valves, air fittings, bulkhead fittings and internal air hoses are mounted in the enclosure. Electrical wiring (numbered and colour coded). Wiring and air schematic. Control cable (8 core, 10 metres in length) has an 8 pin deutsch plug & socket fitted on each end.  The 'in cab'control box has a lead fitted with an 8 pin deutsch plug and a power lead.

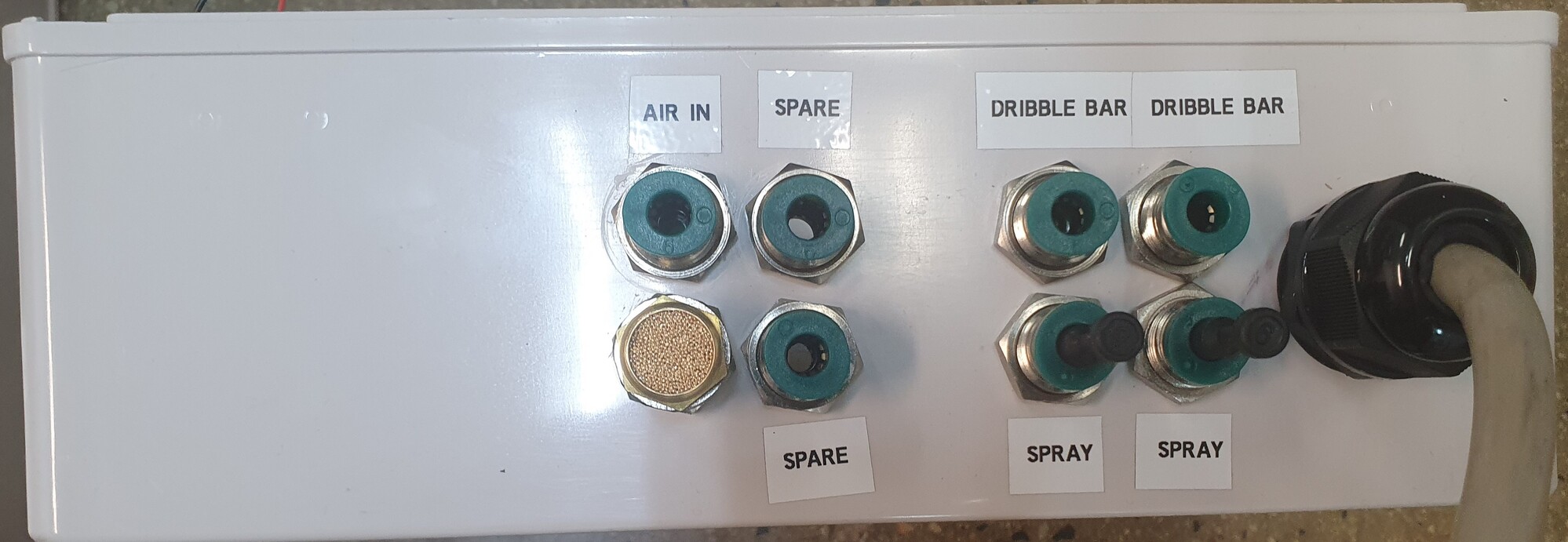

External bulkheads (Input & Output) are for 6mm air line.

Four (4) Functions

  • Two (2) x Sprays - Normally Open (N/O) 'One Way'
  • Two (2) x Dribble Bars or Butterfly Valves - Normally Closed (N/C) 'One Way'

SHIPPING

Dimensions: 0.260m (w) x 0.360m (l) x 0.300m (h)
Weight: 3.6kg
Cubic: 0.02808 m3



(CS110121SYS-12V-4-SP2)

SKU CS110121SYS-12V-4-SP2
Brand Water Wise Truck Parts
Shipping Weight 3.6000kg
Shipping Width 0.260m
Shipping Height 0.300m
Shipping Length 0.360m
Shipping Cubic 0.028080000m3
Assembled Length 0.390m
Assembled Height 0.310m
Assembled Width 0.320m
