SPECIAL - Electric Over Air Control System 24V - 4 Function - WIRED

SPECIAL - SIGNIFICANTLY LOWER THAN COST OF COMPONENTS - 1 UNIT ONLY

GREAT DEAL - 70% DISCOUNT

ORIGINAL PRICE $2179.63

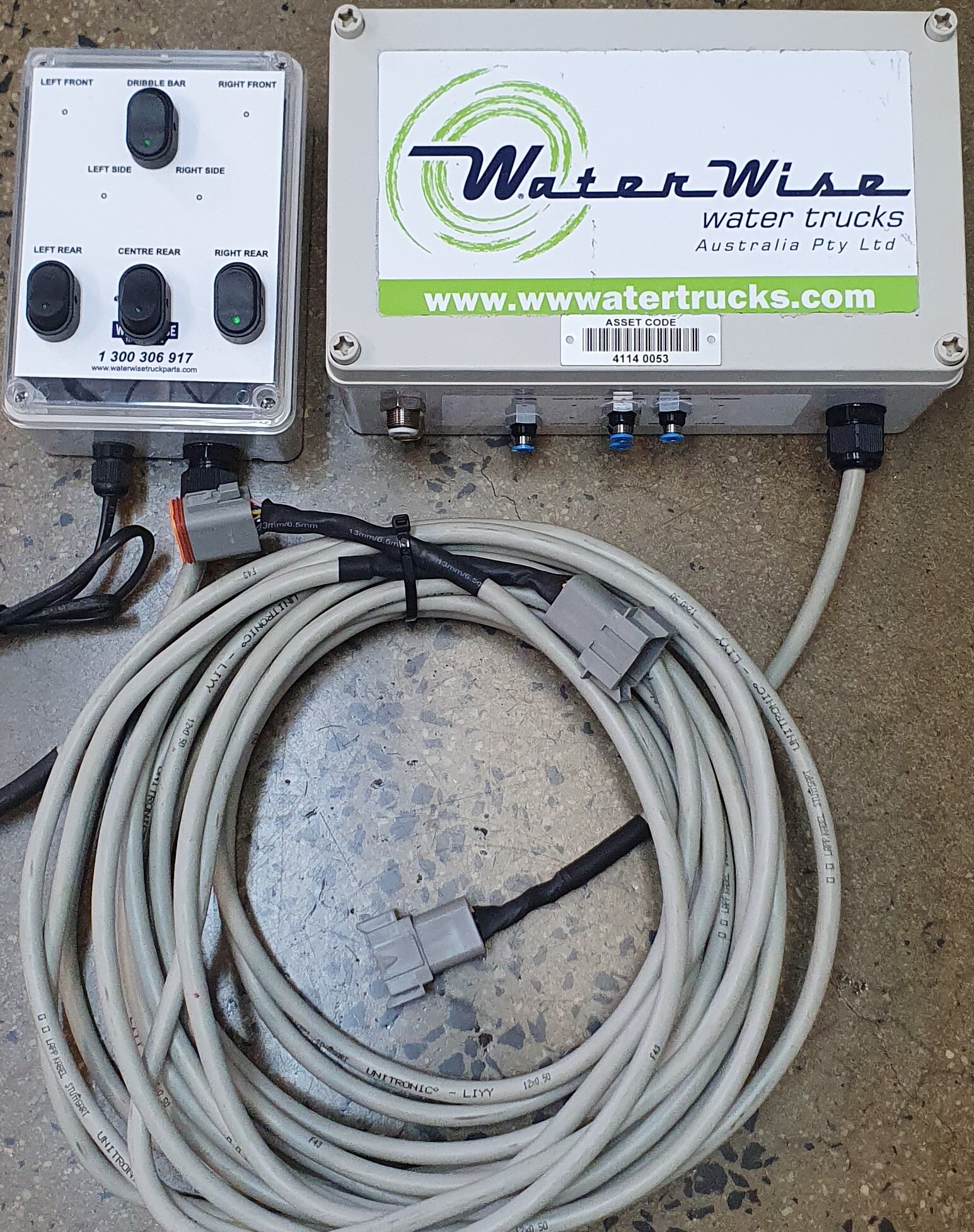

The CS110121SYS-24V-4-SP3 is a completely wired 4 Function 24 Volt control system, the in cab control box is internally wired with switches with LED's, while the air solenoids are housed in an external weather proof (IP65 rated) box that can be mounted on the tank.

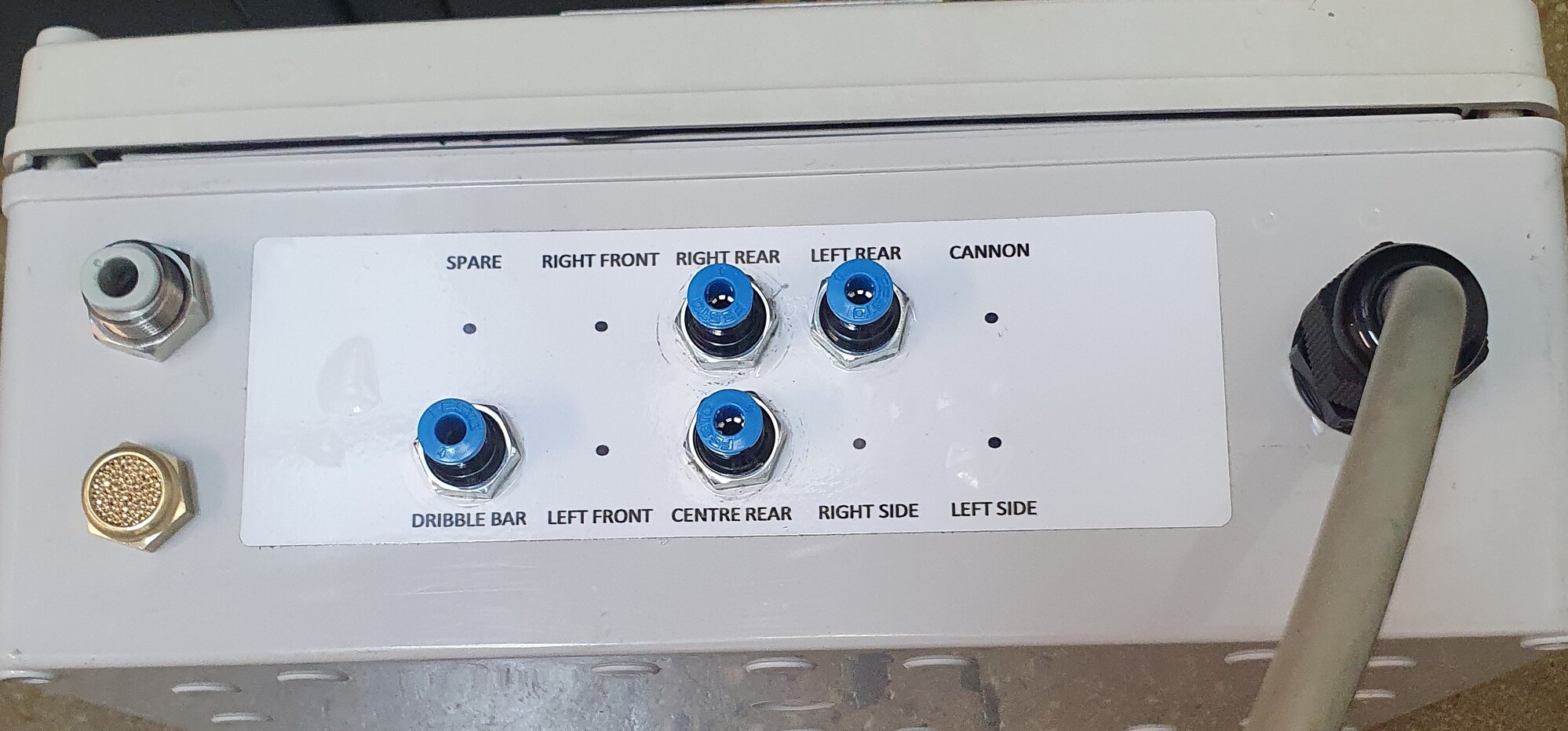

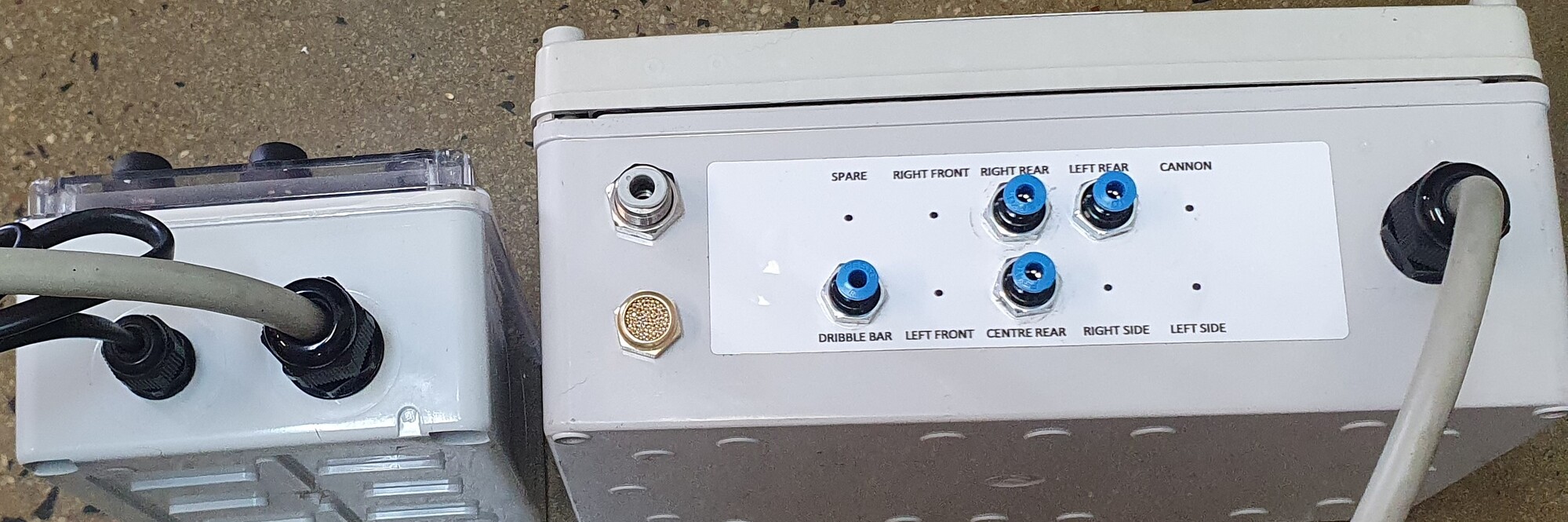

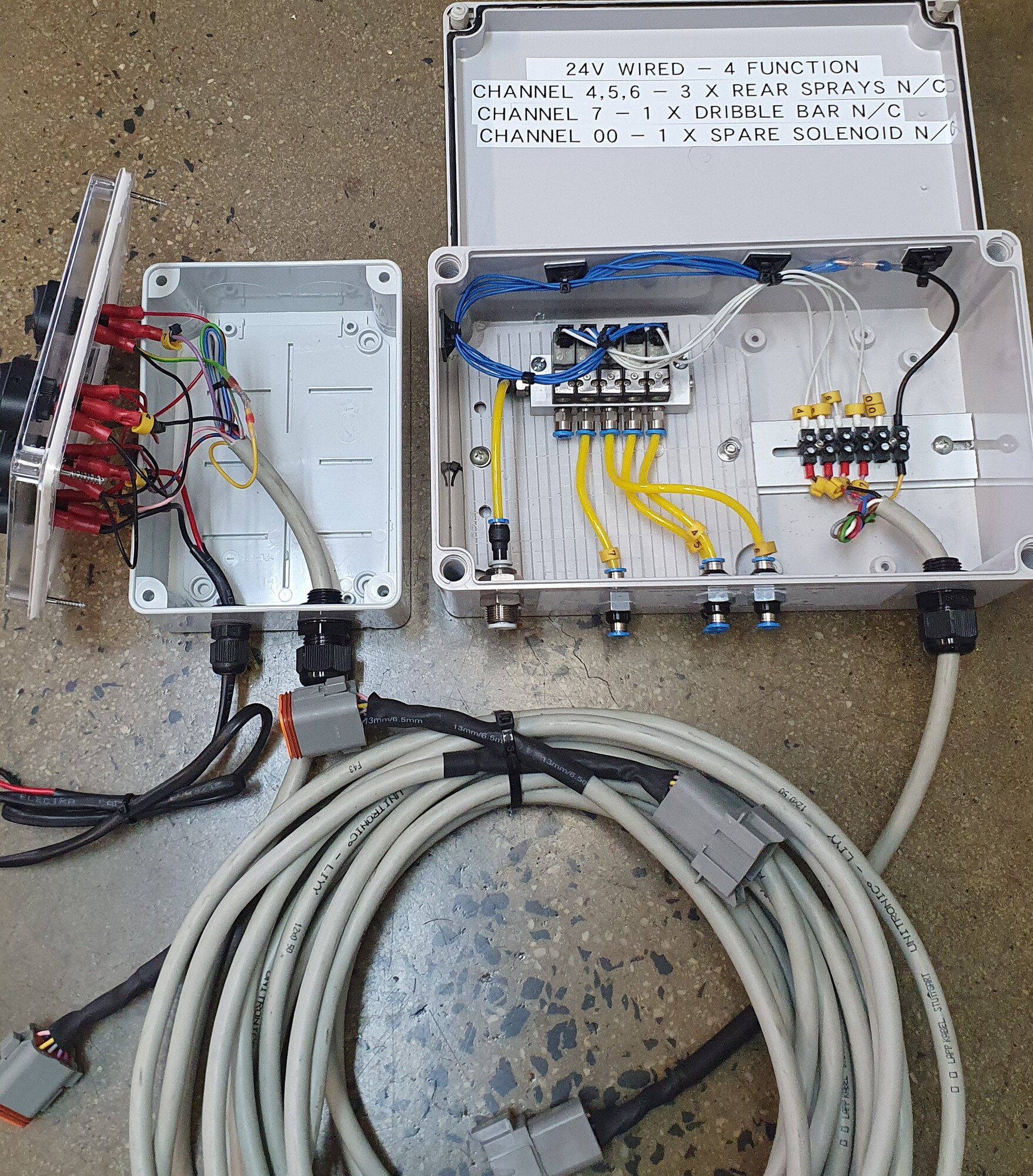

'In cab' control box has four (4) switches fully wired with a face plate mounted in a small plastic enclosure (120 mm x 160 mm x 70 mm) with separate control cable & power leads.  Electrical solenoid cabinet has five (5) solenoids mounted on a manifold in plastic weatherproof IP65 rated enclosure (200 mm x 180 mm x 80 mm).  Solenoid Valves are micro type with a maximum pressure of 0.7 MPa and a maximum air flow rate of 22 litres per minute (LPM).  Solenoid valves, air fittings, bulkhead fittings and internal air hoses are mounted in the enclosure. Electrical wiring (numbered and coloured). Wiring and air schematic. Control cable (10 metres in length) has a Deutsch socket fitted on both ends.  The 'in cab'control box has a lead fitted with a Deutsch plug and a power lead. Air inlet is for 6mm tubing while outlets are for 4mm tubing

Four (4) Functions

• Three (3) x Sprays - Normally Closed (N/C) or 'One Way'
• One (1) x Dribble Bar  - Normally Closed (N/C) or 'One Way'

SHIPPING

Dimensions: 0.2m (w) x 0.2m (l) x 0.2m (h)
Weight: 2.4kg
Cubic: 0.008m3
