SPECIAL - Pneumatic Switch Control Box - Steel Enclosure (4 Function)

PART #: CS110121PLPN-WT-S4-SP

SPECIAL - Air Switch Control Box - Steel Enclosure

RRP $693.31
$346.66
SAVE $346.65 (50%)
In Stock

SPECIAL PRICING - WELL BELOW COST

ONE (1) UNIT ONLY

50% DISCOUNT

ORIGINAL PRICE $693.31

Pneumatic control box can be used to control spray valves & butterfly valves (4 Function)

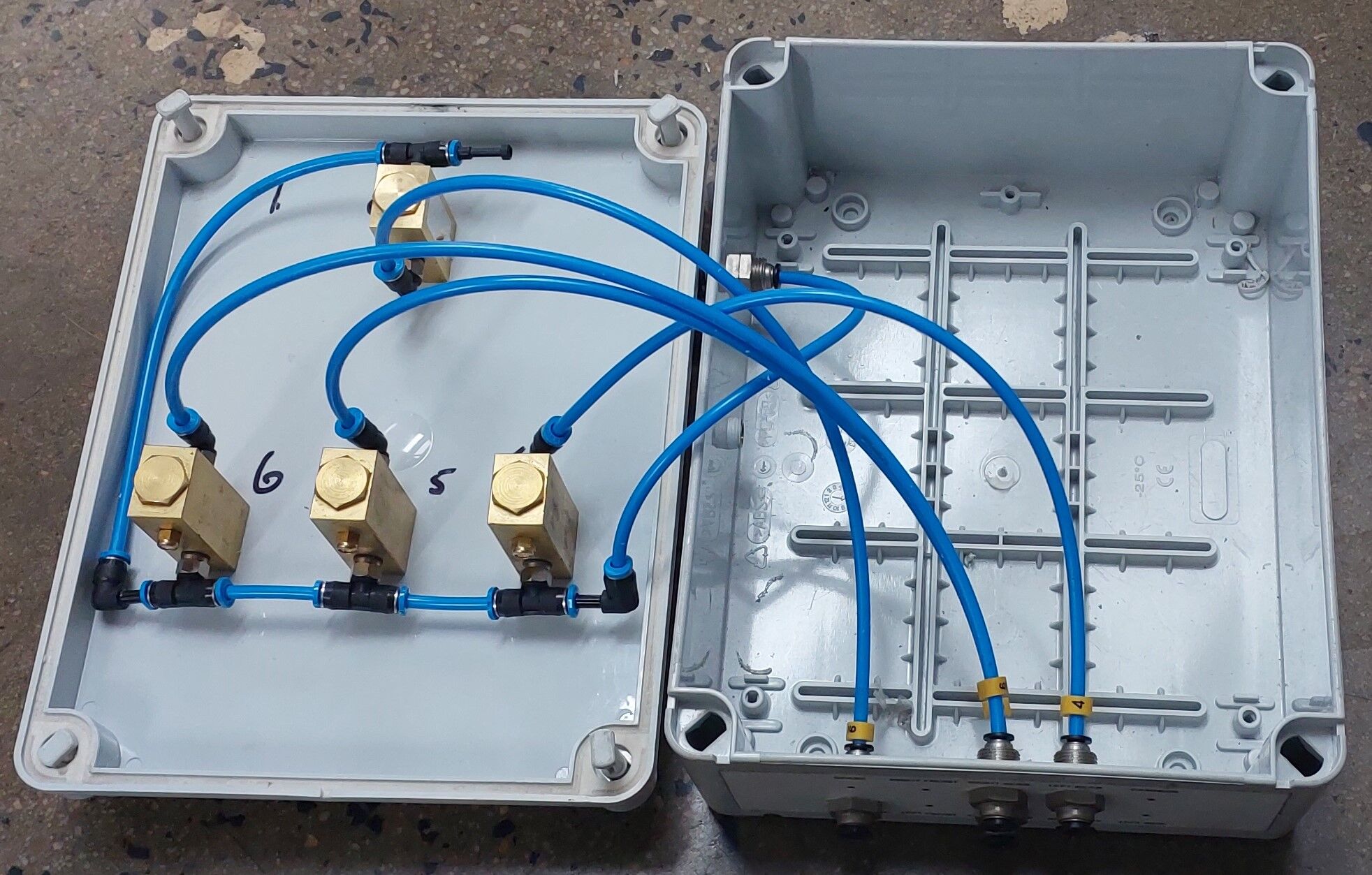

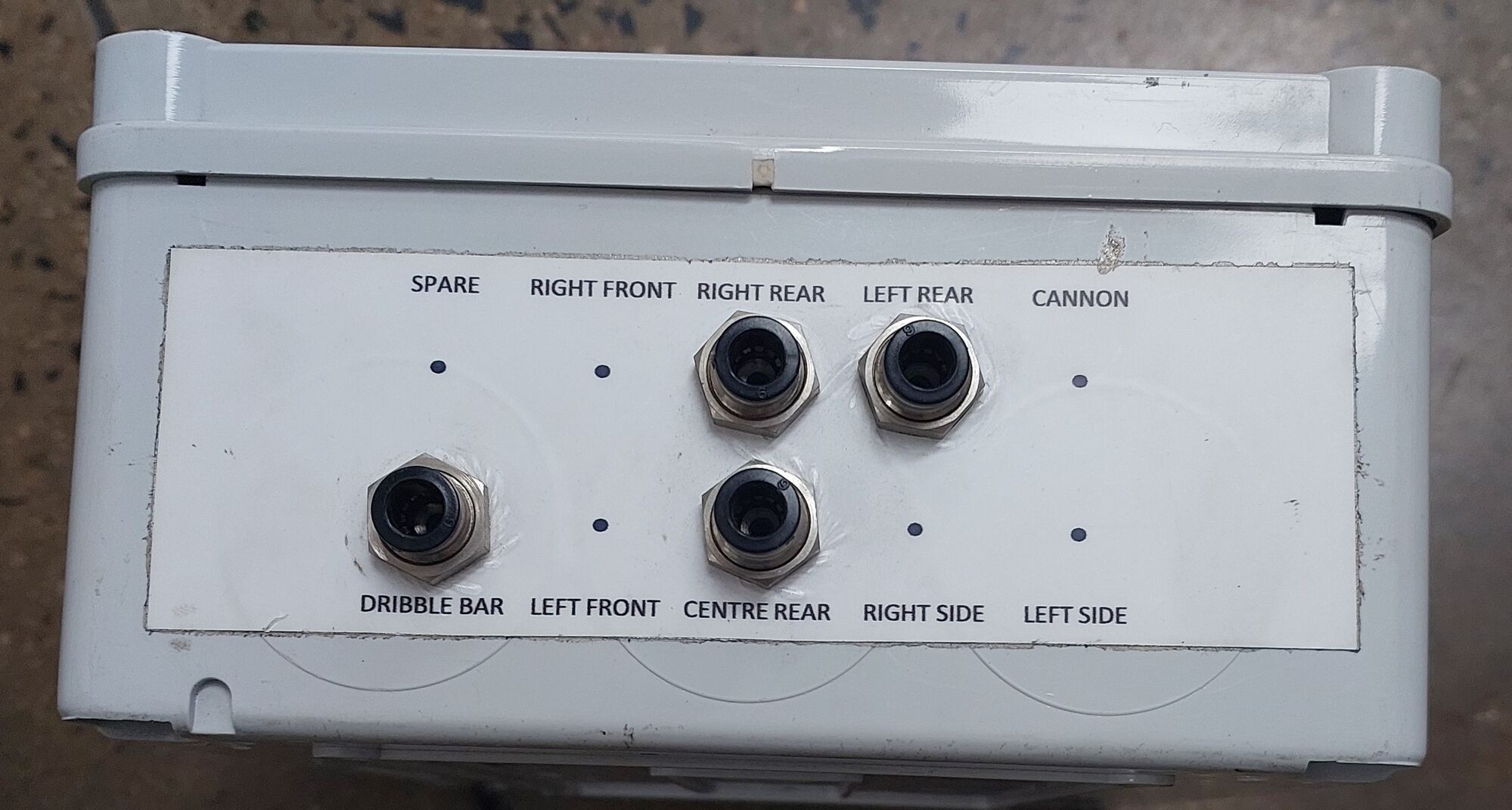

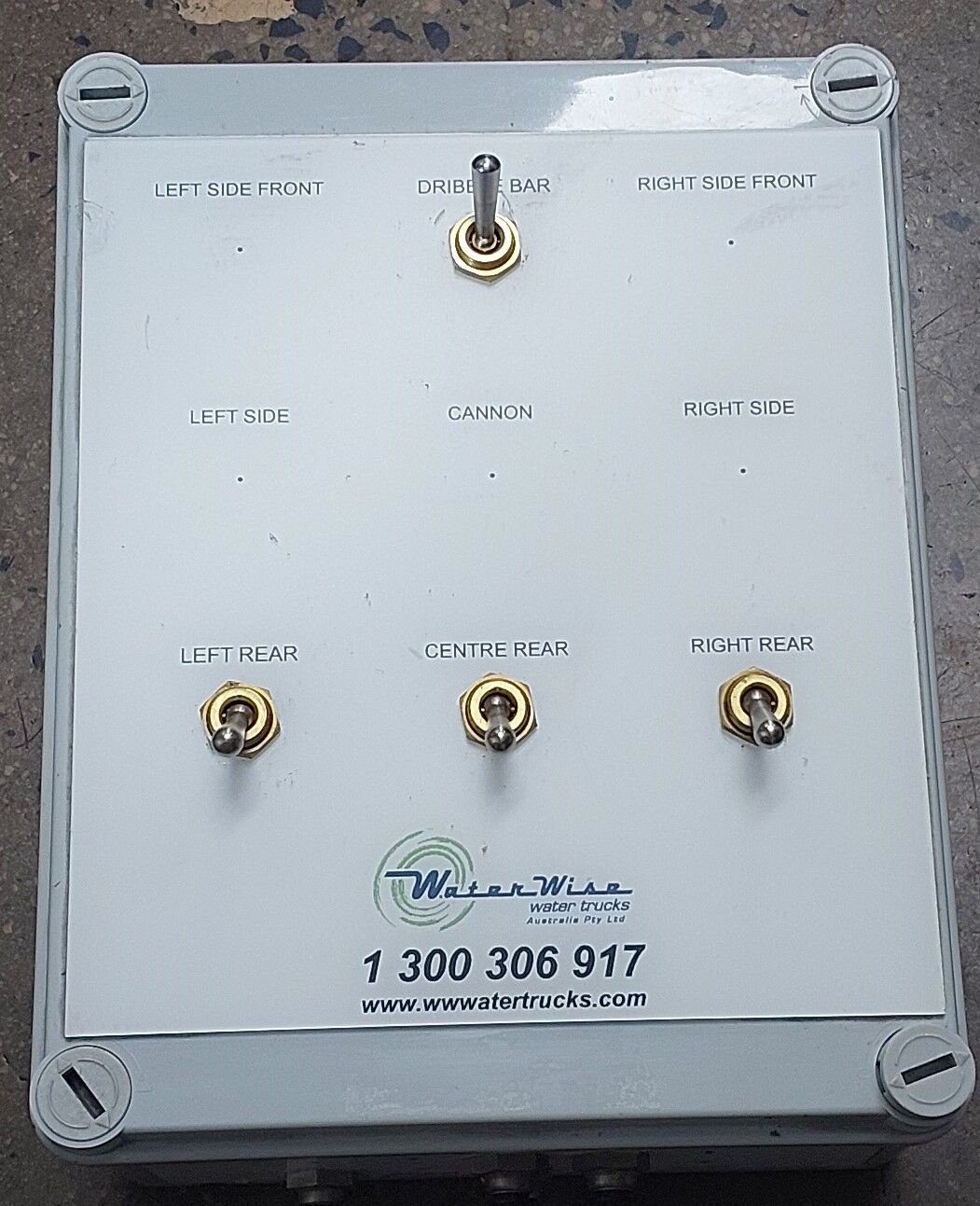

The box comes with a single air inlet (6mm air line), four (4) Pneumatic (aluminium body & metal toggle) toggle switches.  Three (3) switches are set as Normally Open (N/O) for spray valves and One (1) switch is set as Normally Closed (N/C) for a single acting or one way butterfly valve all switches are plumbed to 6mm bulkheads in an steel enclosure (200 x 300 x 90)  individually labelled on the box face plate & outlet or bulkhead face plate.

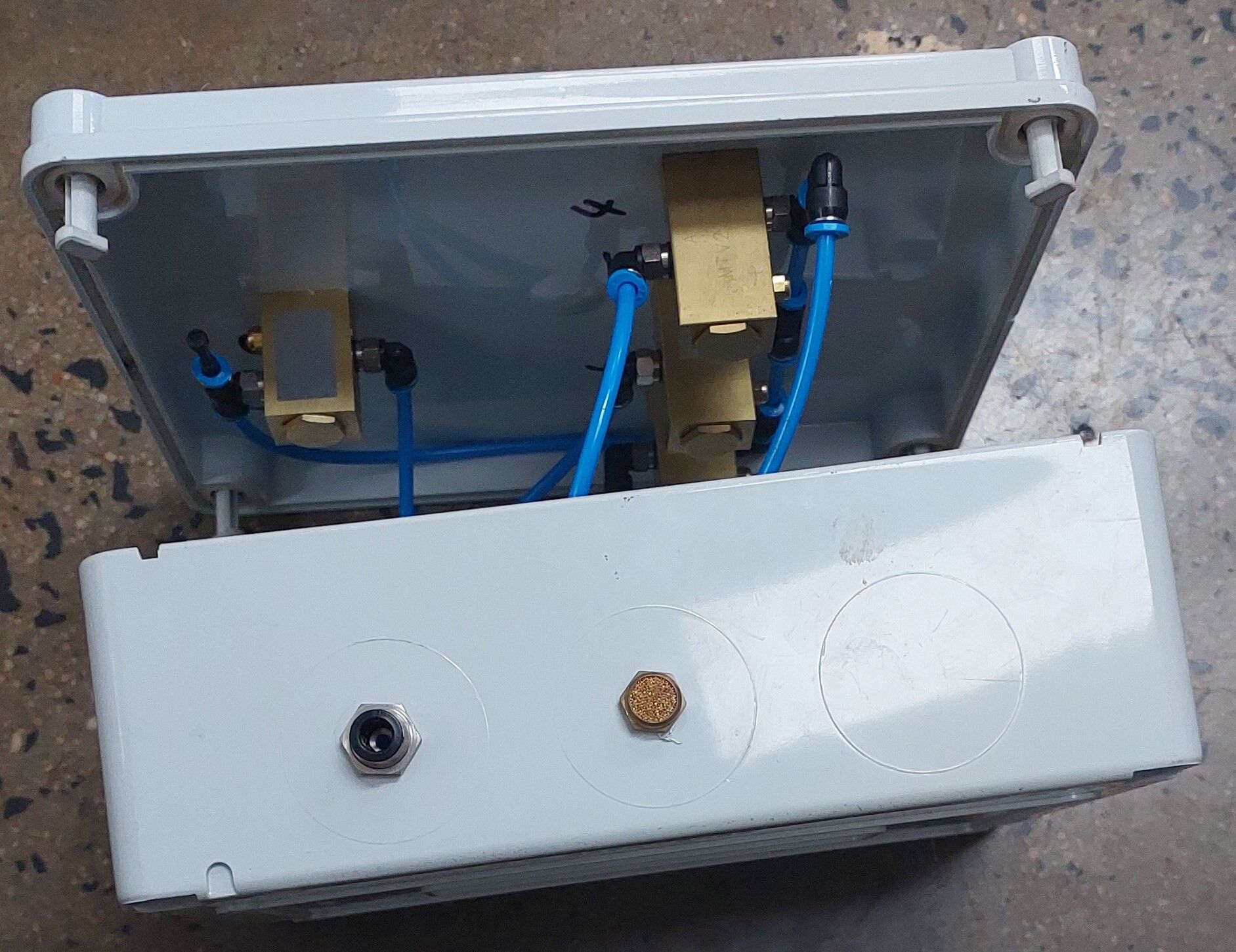

The enclosure is also fitted with a brass exhaust.

RRP $693.31

SHIPPING

Dimensions: 0.2m (w) x 0.3m (l) x 0.09m (h)
Weight: 2.7kg
Cubic: 0.0054m3



(CS110121PLPN-WT-S4-SP)

SKU CS110121PLPN-WT-S4-SP
Brand Water Wise Truck Parts
Shipping Weight 2.7000kg
Shipping Width 0.200m
Shipping Height 0.090m
Shipping Length 0.300m
Shipping Cubic 0.005400000m3
