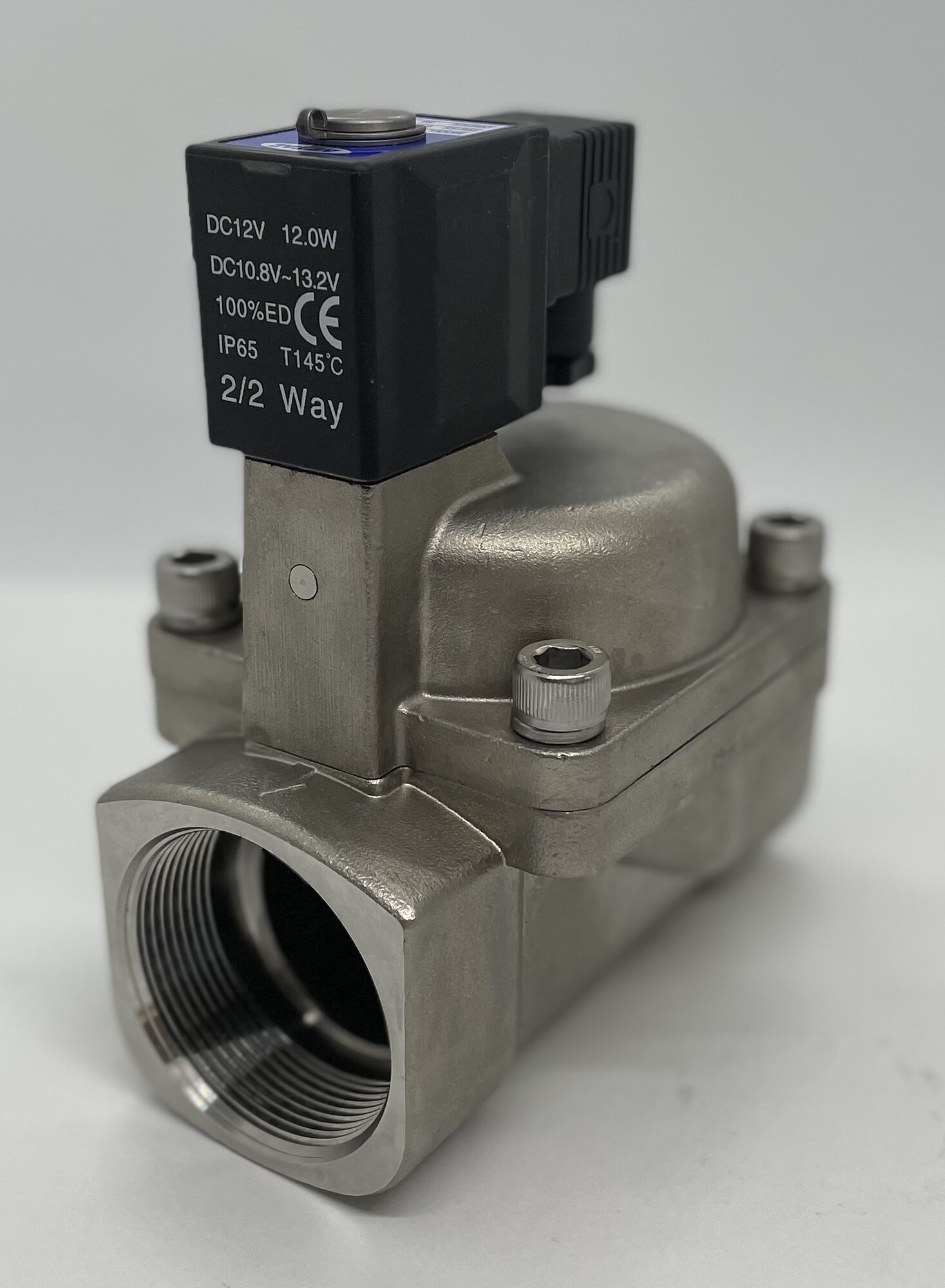

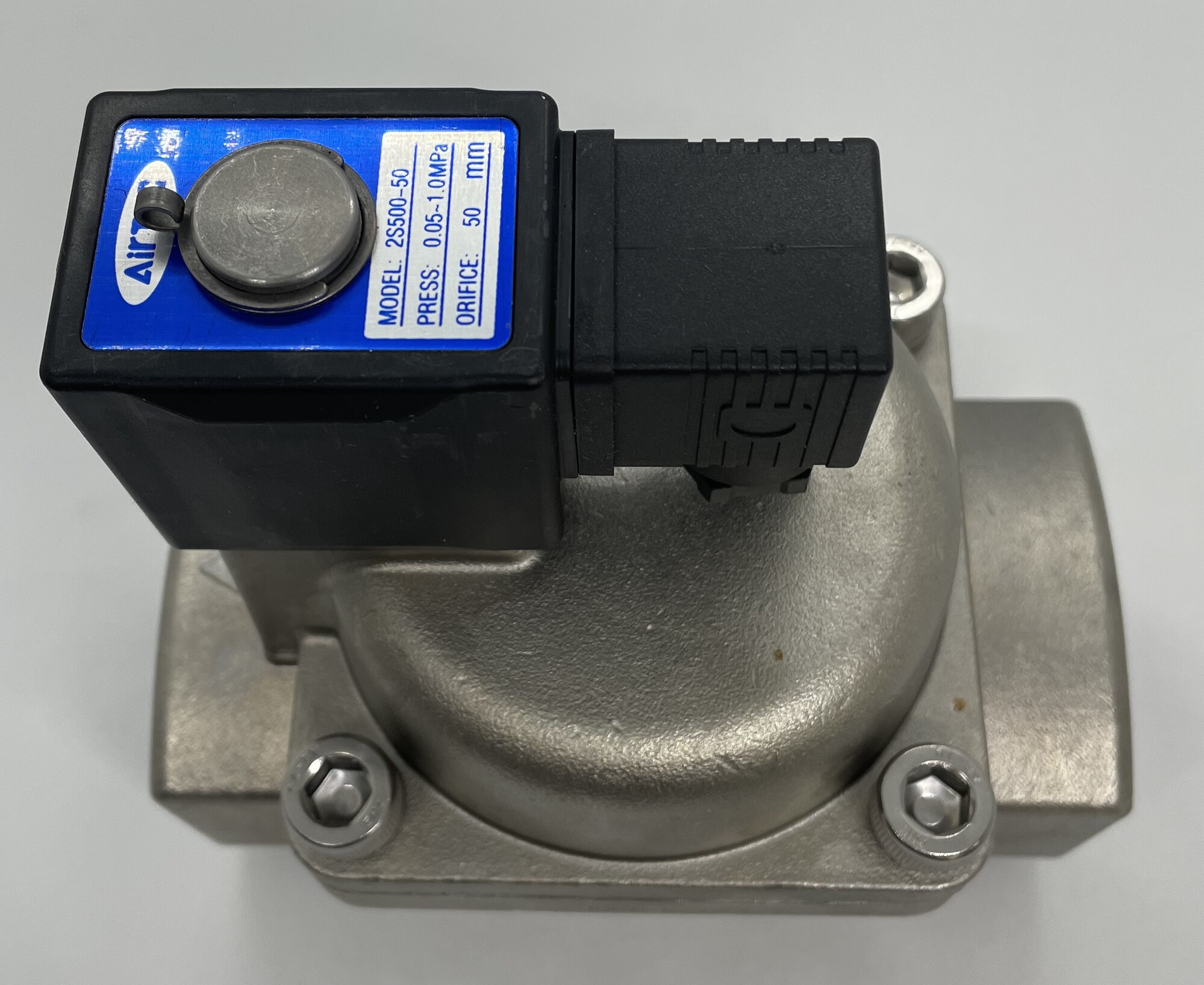

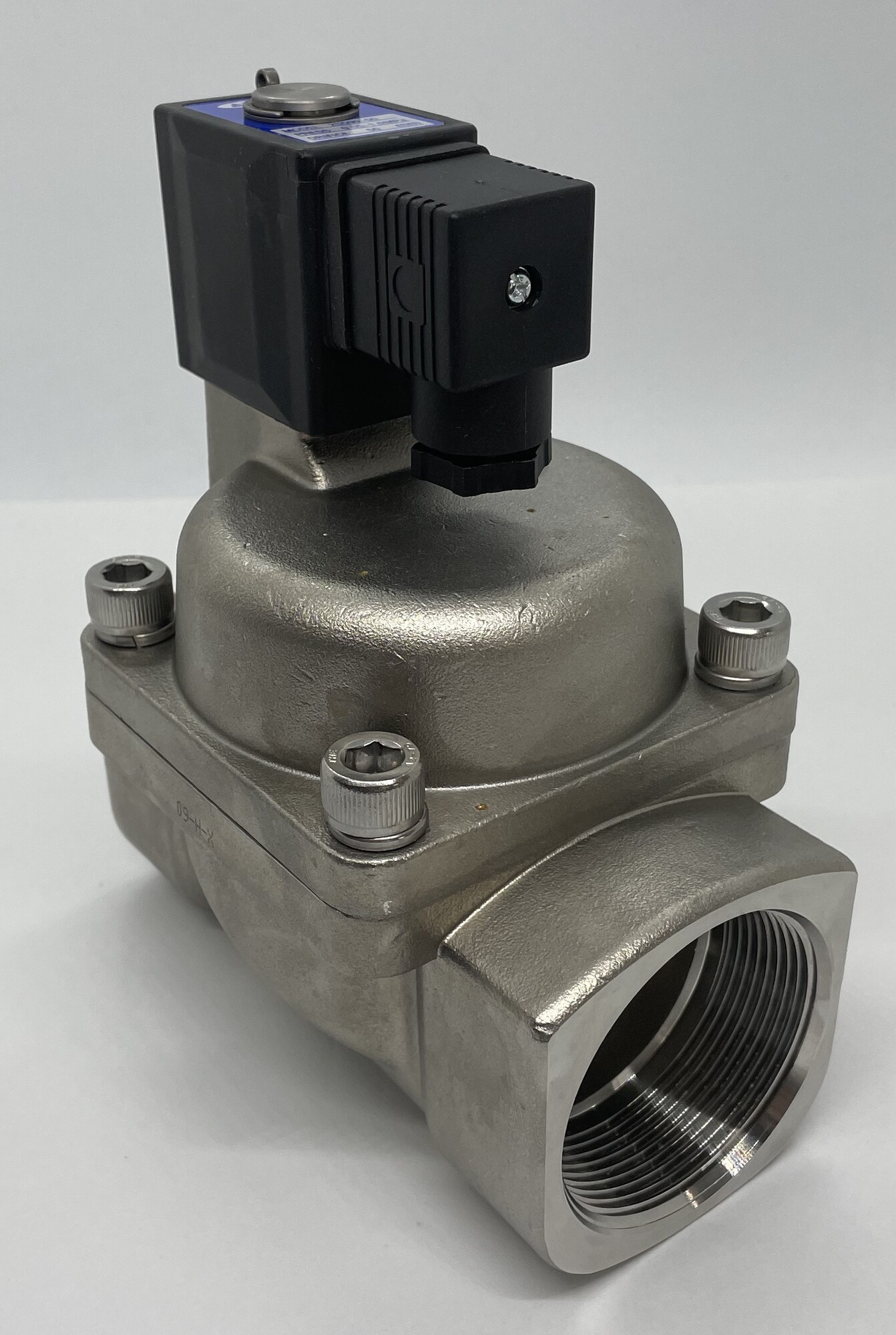

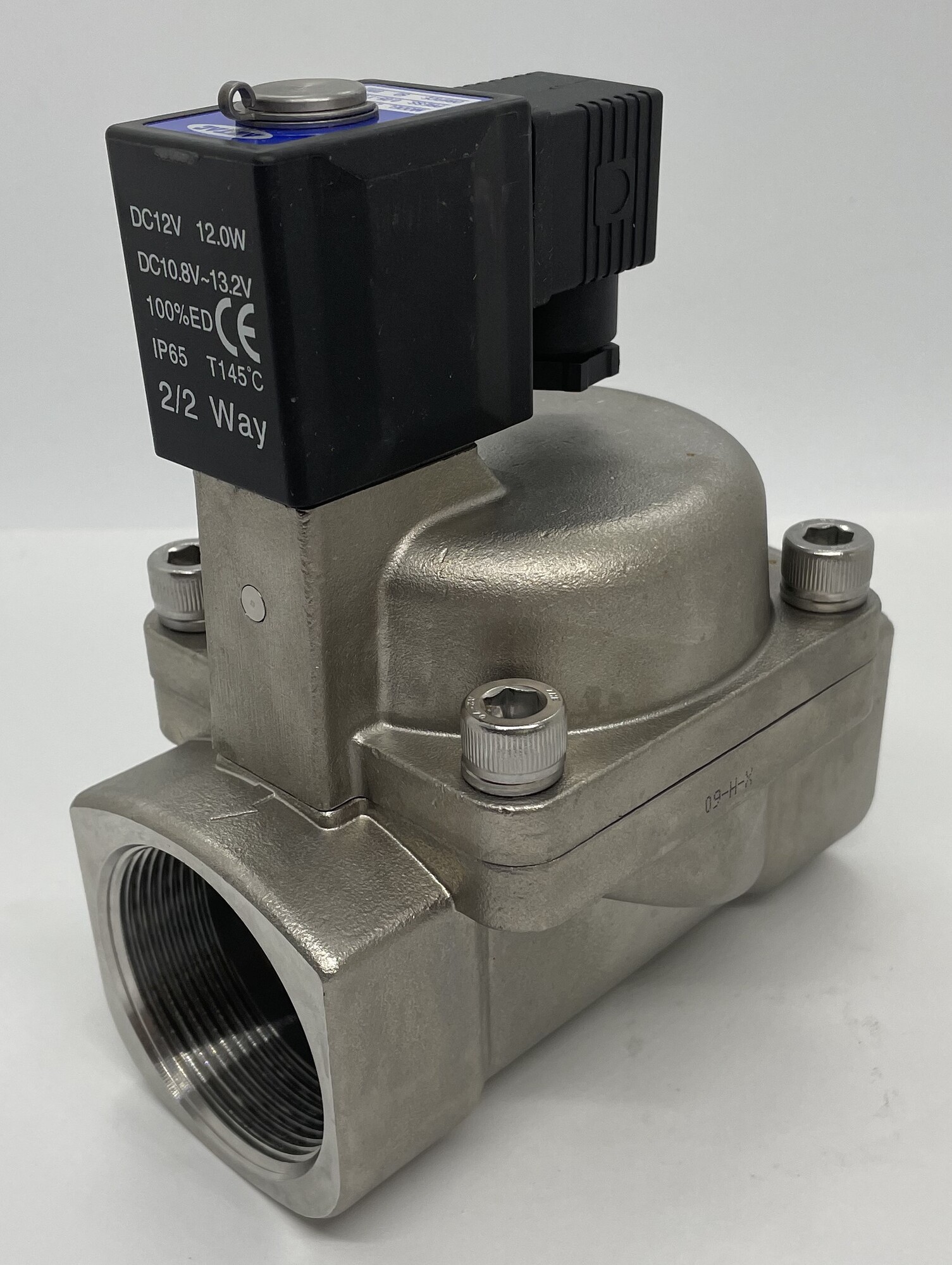

50mm (2") Solenoid Valve Normally Closed Stainless Steel - 12VDC

PART #: 050SNCSS-12

STAINLESS STEEL - 50mm Solenoid Valve Normally Closed

$578.13
In Stock

General purpose differential solenoid valve for air and water (non aggressive media up to 40CST viscosity). Designed with an anti water hammer diaphragm making it great for water applications or downstream of a pump/compressor. Normally closed (energise to open) and available in 12 & 24 volt. Comes with coil (class F insulation) and DIN plug (IP65 protection). Installation can be in any orientation however upright is always preferable if possible.

  • Ports 50mm (2")
  • British Standard Pipe Thread (BSP)
  • Voltage 12VDC or 24VDC
  • Coil Current Draw 1.3 -2.7 Amp
SHIPPING

Dimensions: 0.200m (w) x 0.200m (l) x 0.140m (h)
Weight: 4.7kg
Cubic: 0.005600000m3

(050SNCSS-12)

SKU 050SNCSS-12
Brand Water Wise Truck Parts
Shipping Weight 4.2000kg
Shipping Width 0.200m
Shipping Height 0.140m
Shipping Length 0.200m
Shipping Cubic 0.005600000m3
