Joy Stick with Five (5) Function Pneumatic Switch 'In Cab' Control Box (Plastic)
PART #: CS110121PLPN-WT-P5-JS
Joystick & 5 Function Pneumatic Box
We can ship your order on your own freight Account. Just leave you Freight Company's Name, The name of your account and your account number in the box below and we will do the rest.
Express Post satchels can be deliverd to PO Boxes Australia wide.
Pick up is available form our Footscray warehouse Located at 15 Mephan Street, Footscray, Victoria. items can be collected between 9:00AM to 4:30PM Monday to Thursday and 9.00am to 12.00pm Fridays. Please bring a copy of your invoice with you.

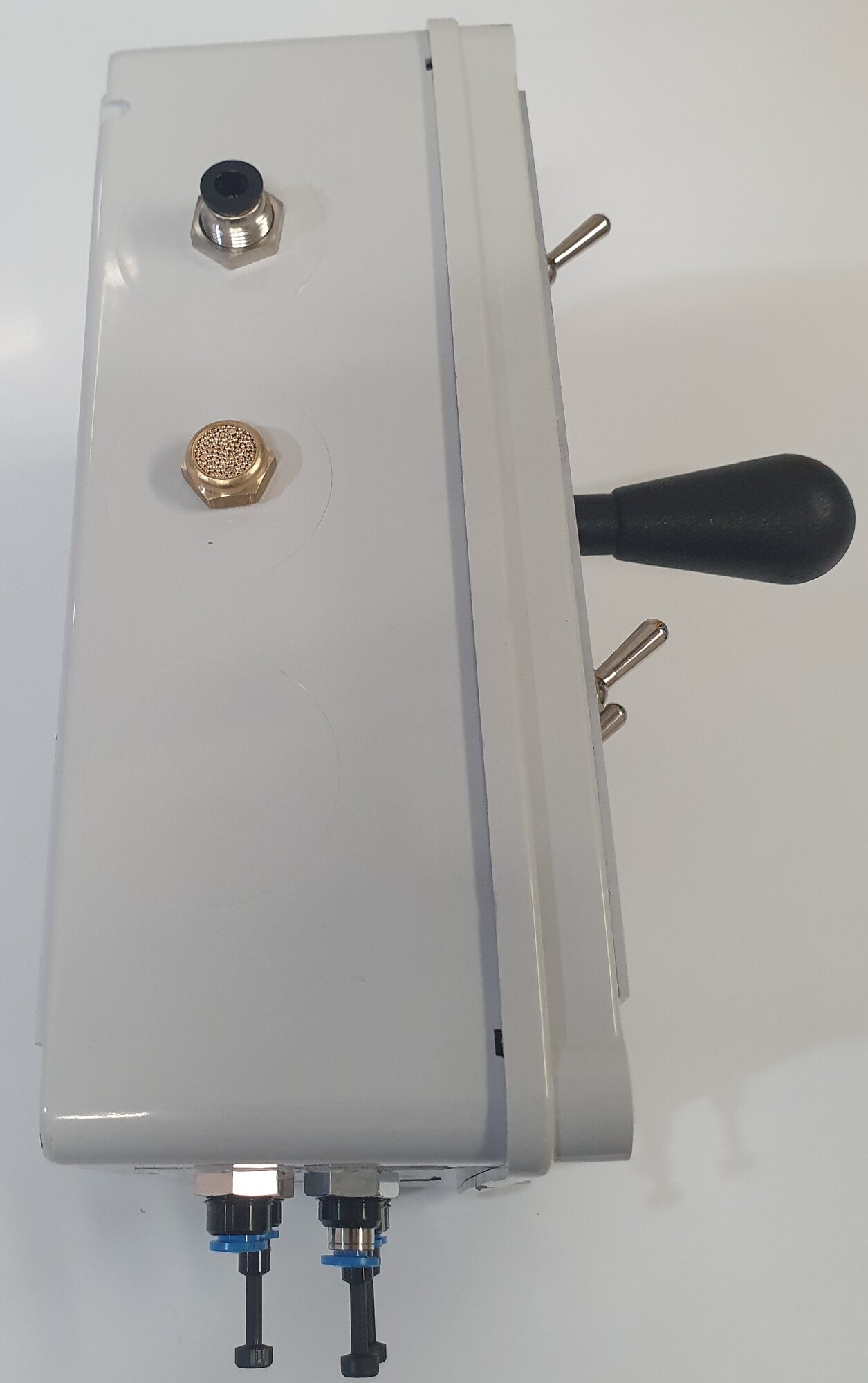

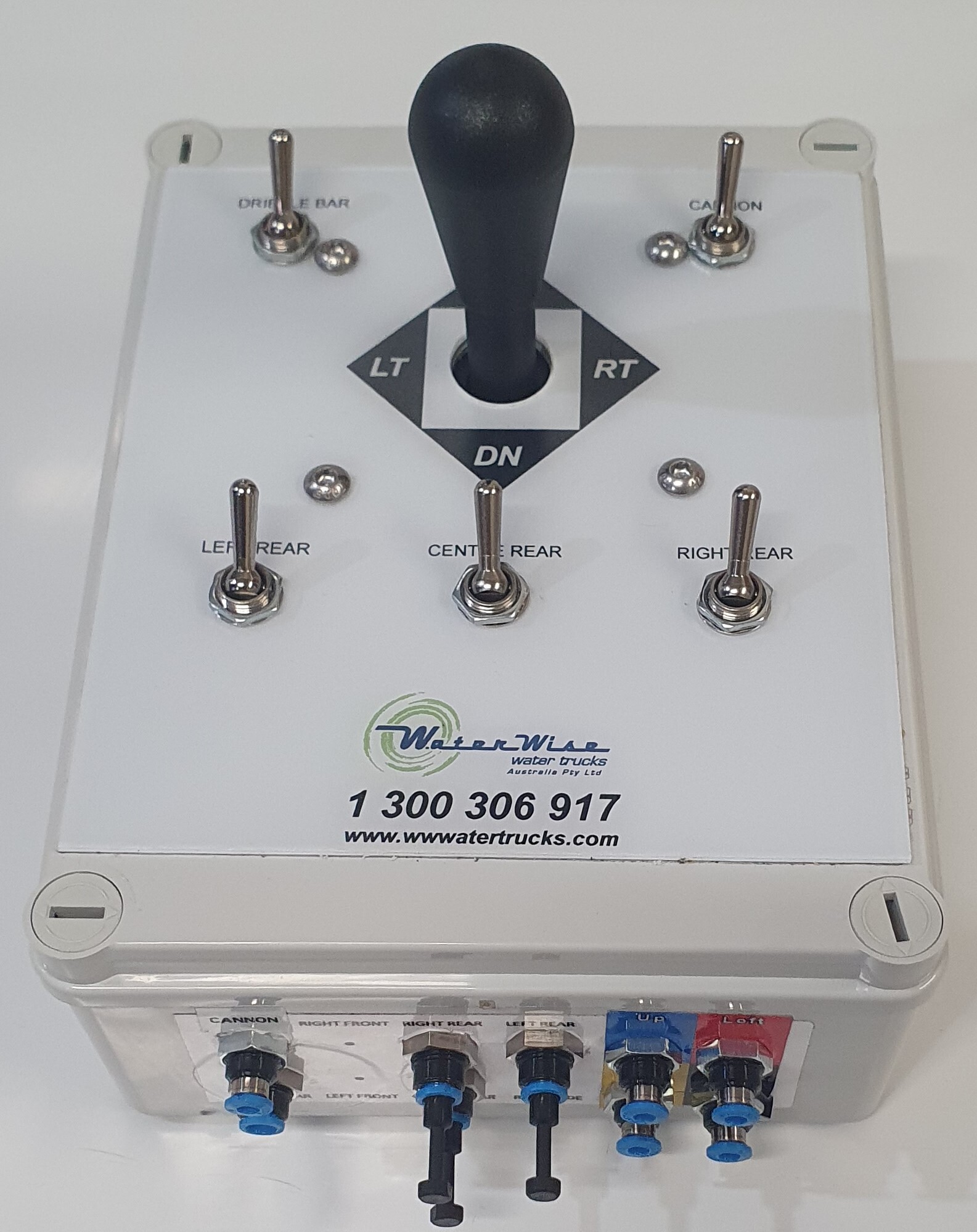

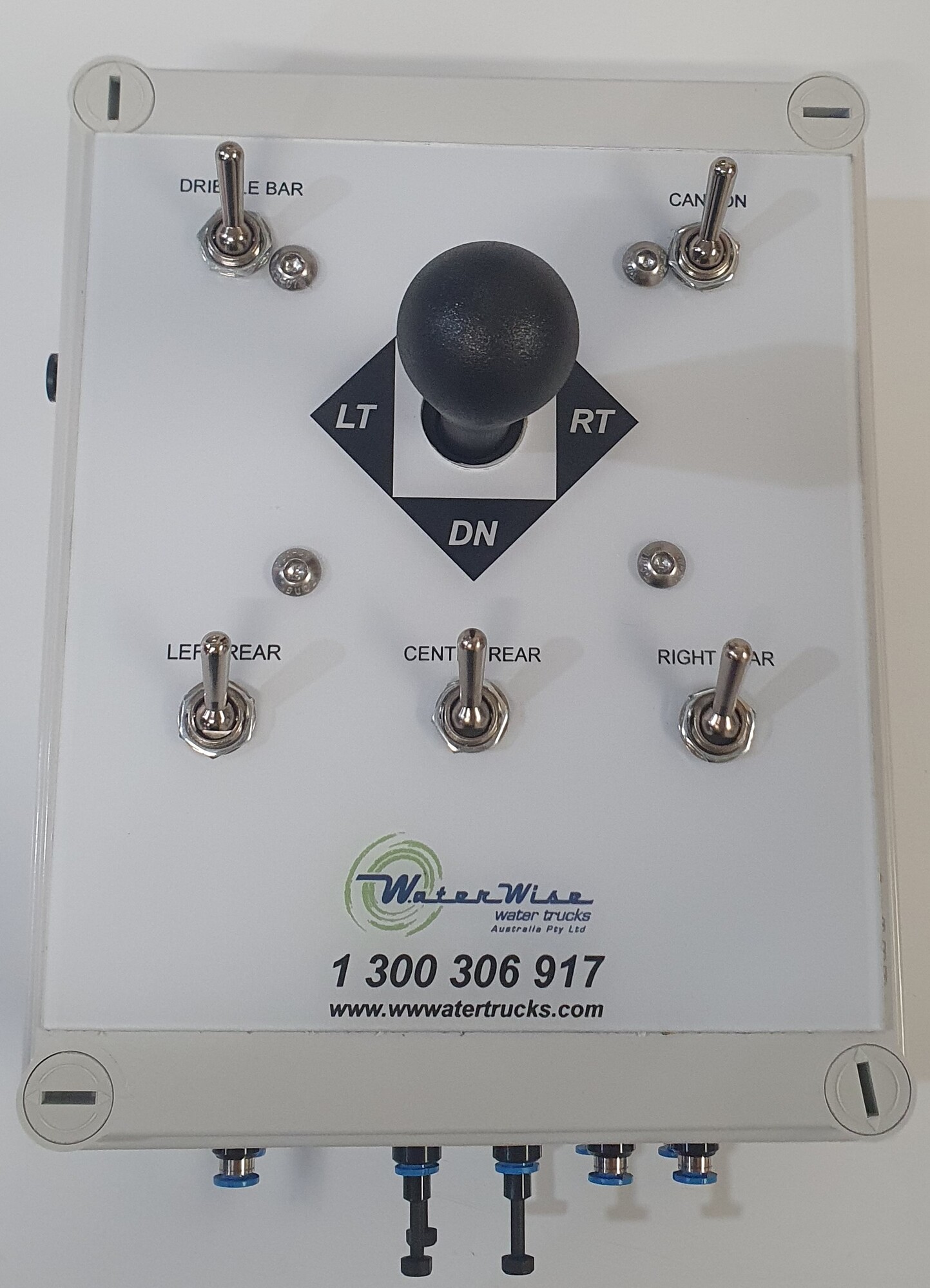

The CS110121PLPN-WT-P5-JS control box is a plastic box 170mm wide, 220mm long and 80mm deep, internally plumbed, externally labelled with Pneumatic Joystic & five (5) pneumatic toggle switches.
- Pneumatic Joystick
- 5 Switches, Face Plate, Outlet label, Mounted & Plumbed in an enclosure
- 3 x Rear Spray Valves - Normally Open (N/O)
- 1 x Dribble Bar - Normally Closed (N/C)
- 1 x Cannon - Normally Closed (N/C)

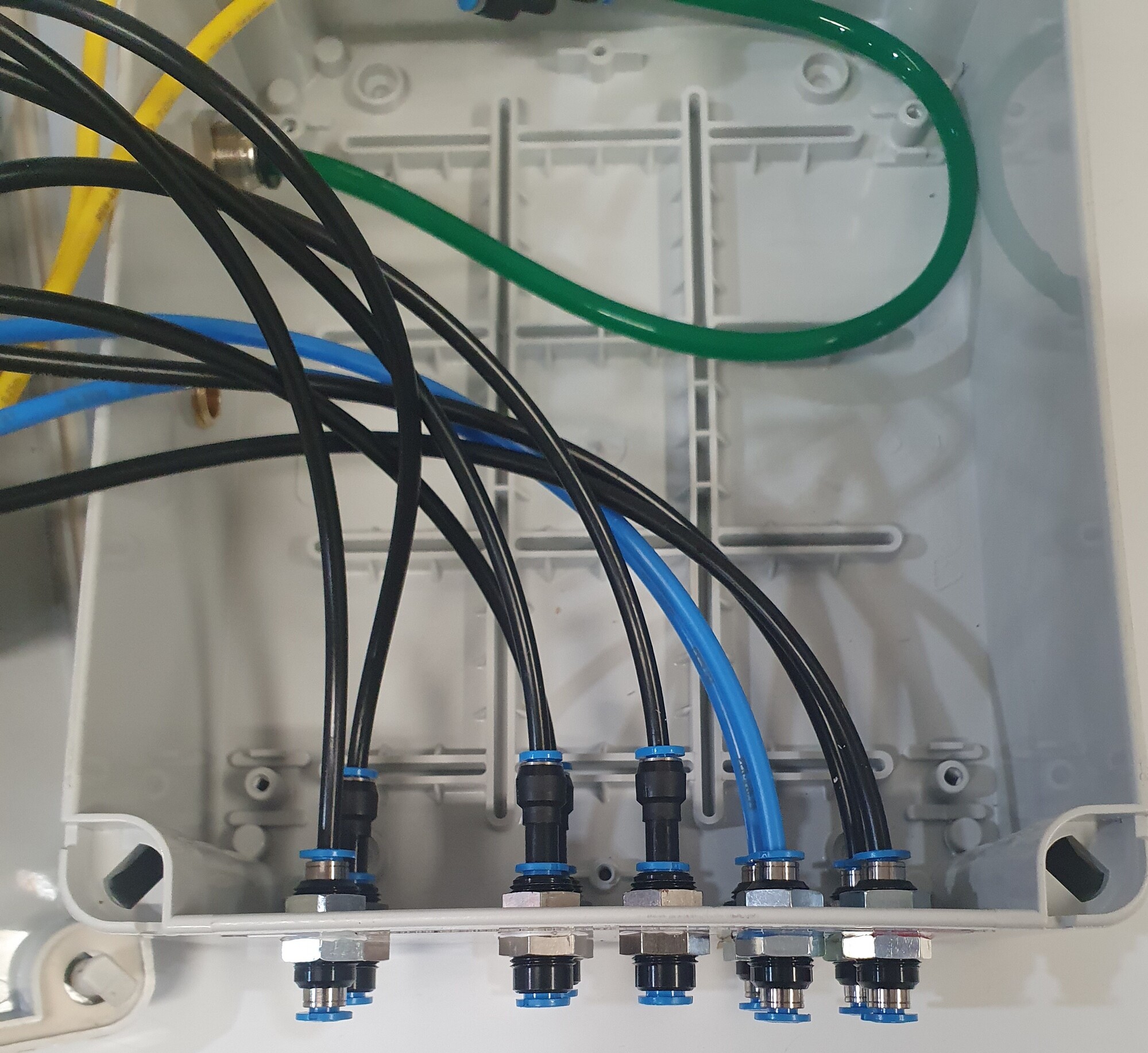

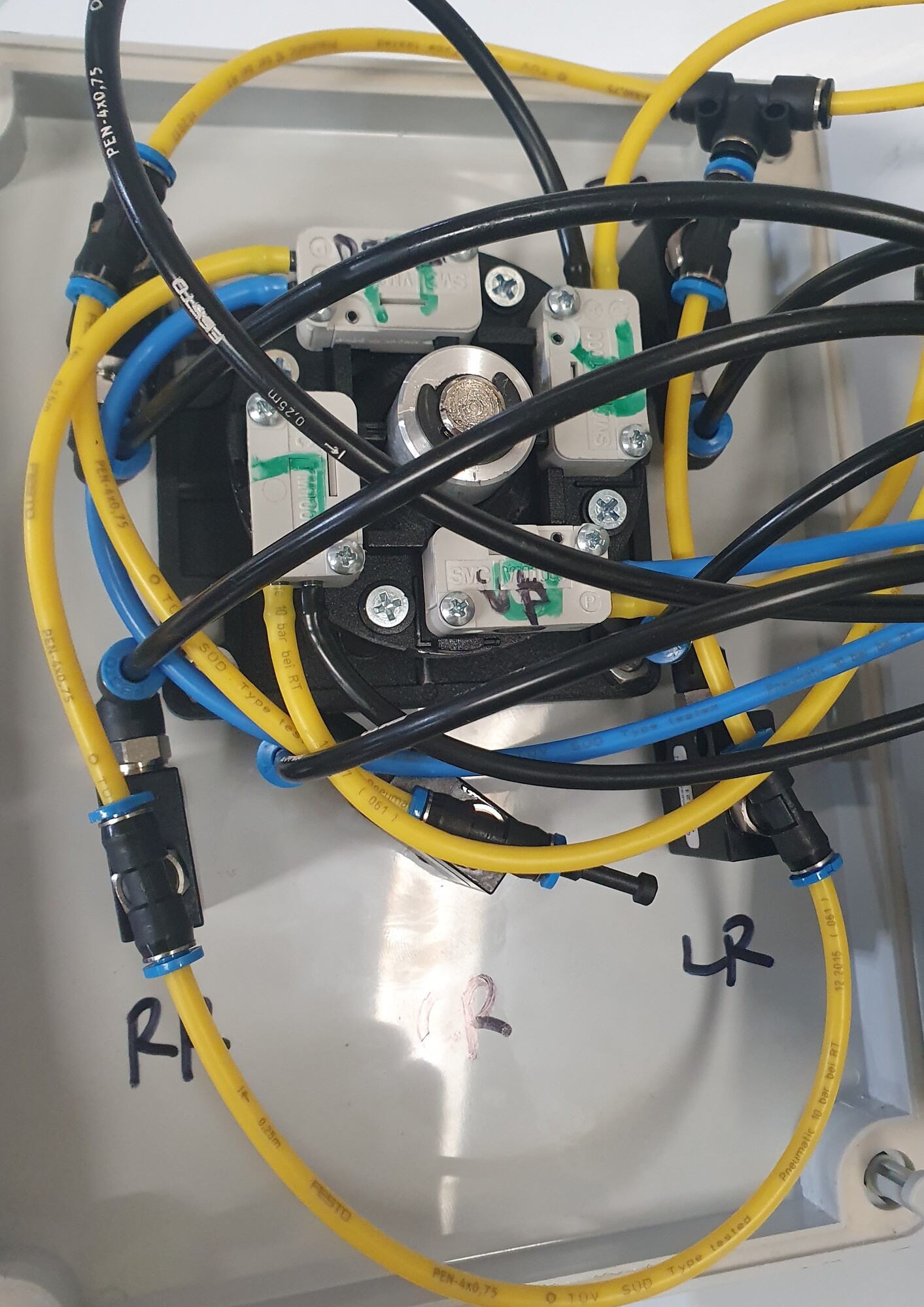

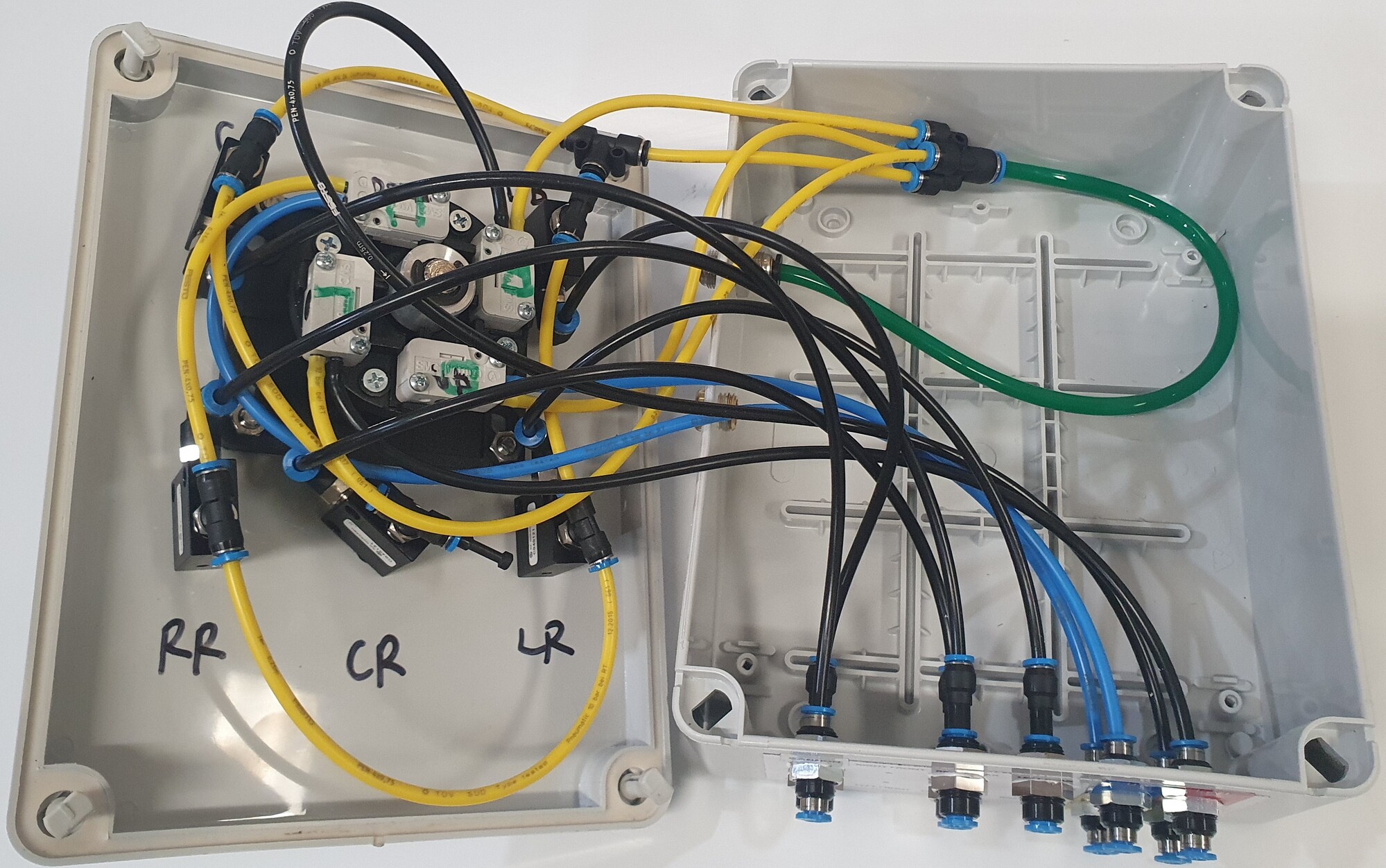

- Internally plumbed with 4mm high-quality flexible tubing

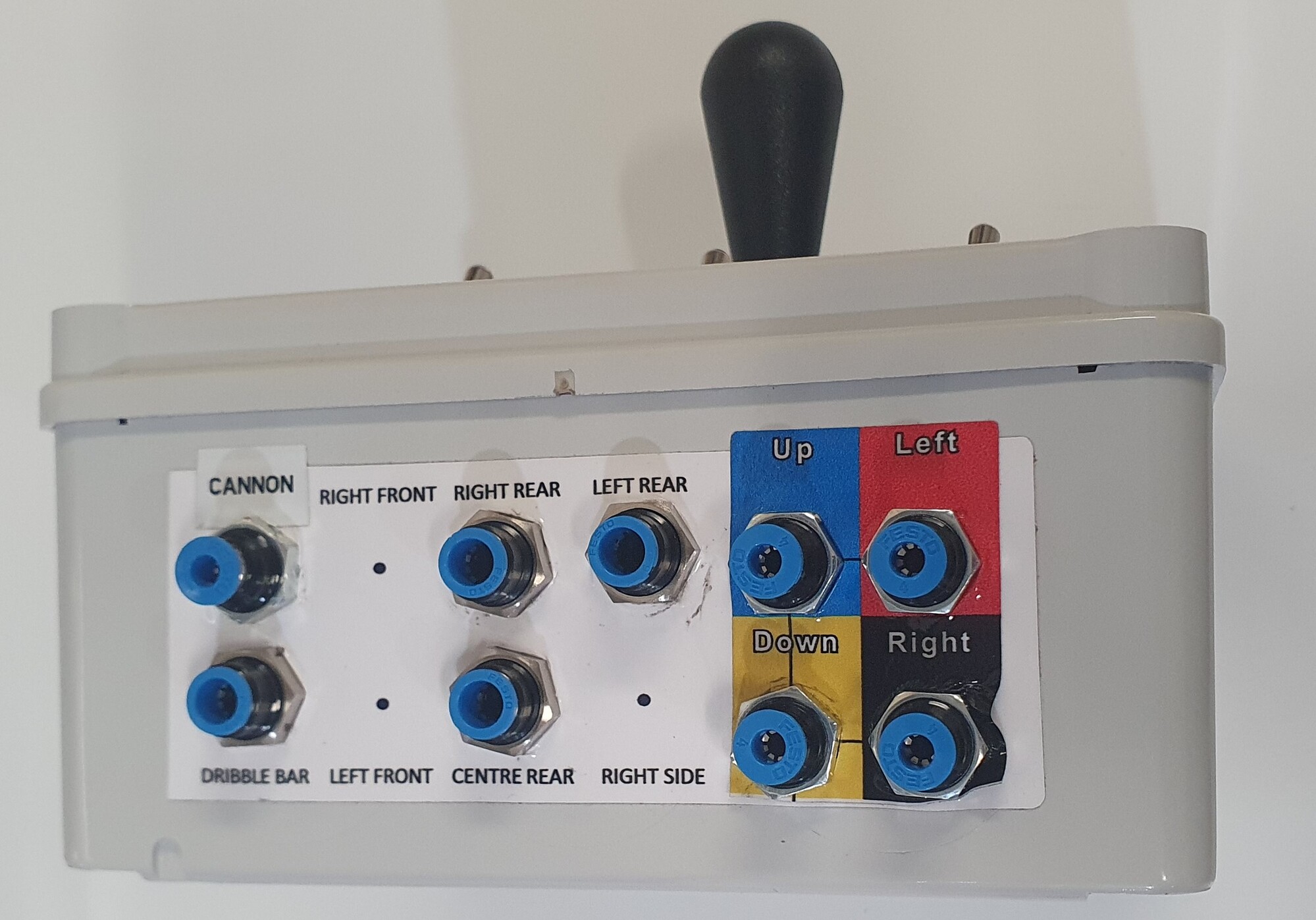

- External bulkhead ports for all airlines at bottom of box - 6mm for Spray Valves & Dribble Bar, 4mm for Cannon
- Fully tested
- Single 6mm pneumatic supply line
- Dustproof box
- Approximate weight 2 kg
- Fully serviceable
Contact us to customise functions
'Exclusive to Water Wise Trucks Parts - Made in House'
- Pneumatic 4 Way Joystick (P651-JS)
- Air Valve Silencer 1/4 (BSLM02)
- Air Switches Pneumadyne - Toggle 3/2 - 1/8 ports (PNSW32-CO)
- Bulkhead Fitting 6mm to 4mm (PMM0406)
- Bulkhead Fitting 6mm - Standard (PM06)
- Mini Air Fitting Elbow 4mm x 1/8 NPT (PL0401)
- Branch Tee- 4 mm X 1/8 (PB0401)
- 4mm Nylon Flexible Tubing (PA4-4B-B200)
- Control Box Blank (CSSWBOX-BL)
- Control Box Engraved Plate (CS110121A)
- Air Fitting Plug 4mm (PP04)
Dimensions: 0.200m (w) x 0.23m (l) x 0.1m (h)
|Brand||Water Wise Truck Parts|
