Nine (9) Function Pneumatic Switch (SMC Switches) in Cab Control Plastic Box


9 x Toggle Switch box with SMC switches

In Stock

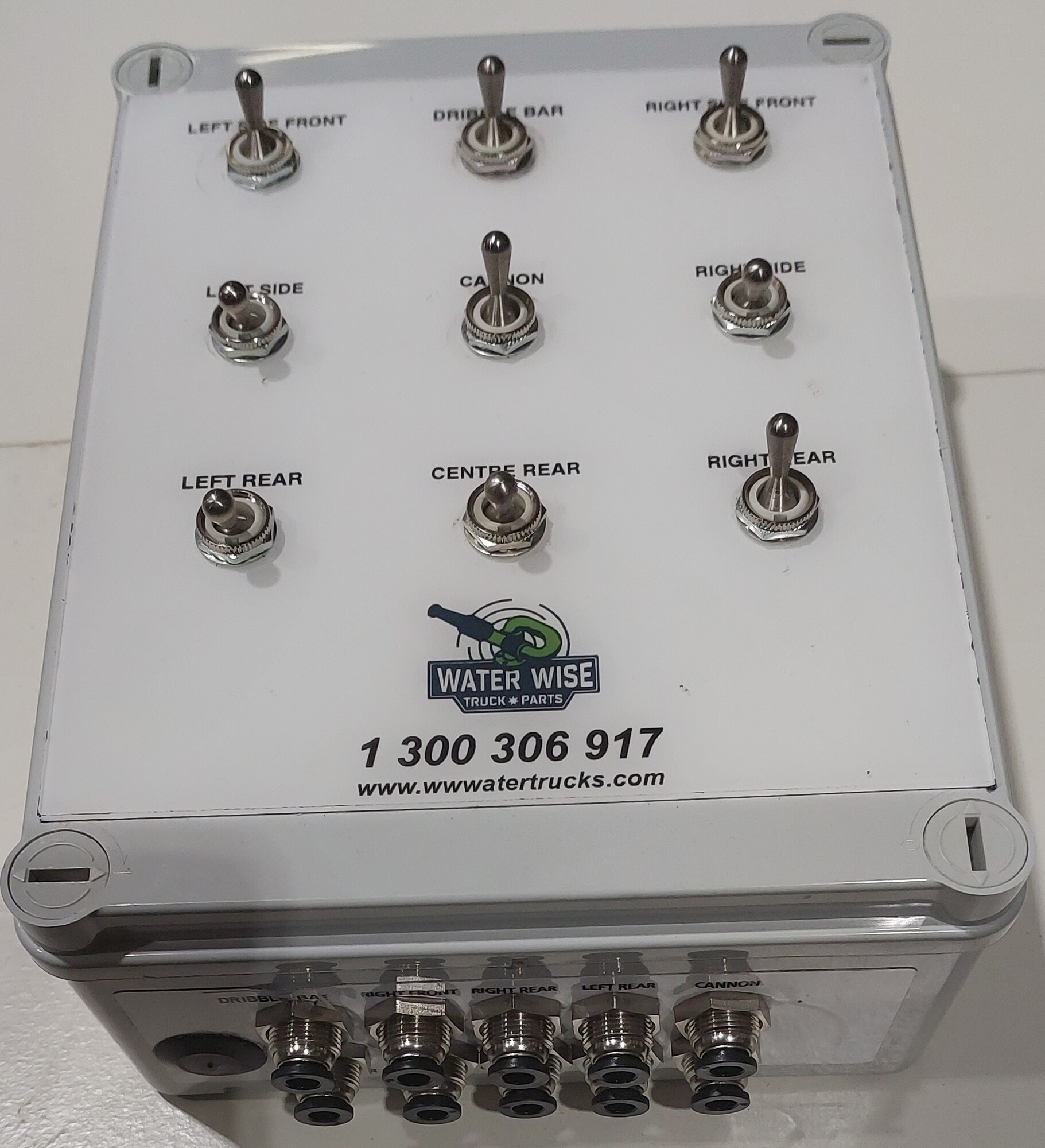

The CS110121PLPN-WT-P9 control box is a plastic box 170mm wide, 220mm long and 80mm deep, internally plumbed, externally labelled with nine (9) SMC pneumatic toggle switches.


  • 9 x SMC Switches, Face Plate, Outlet label, Mounted, Numbered & Plumbed in an enclosure
  • 3 x Rear Spray Valves - Normally Open (N/O)
  • 2 x Side Spray Valves - Normally Open (N/O)
  • 2 x Front Spray Valves - Normally Closed (N/C)
  • 1 x Cannon - Normally Closed (N/C)
  • 1 x Dribble Bar - Normally Closed (N/C)

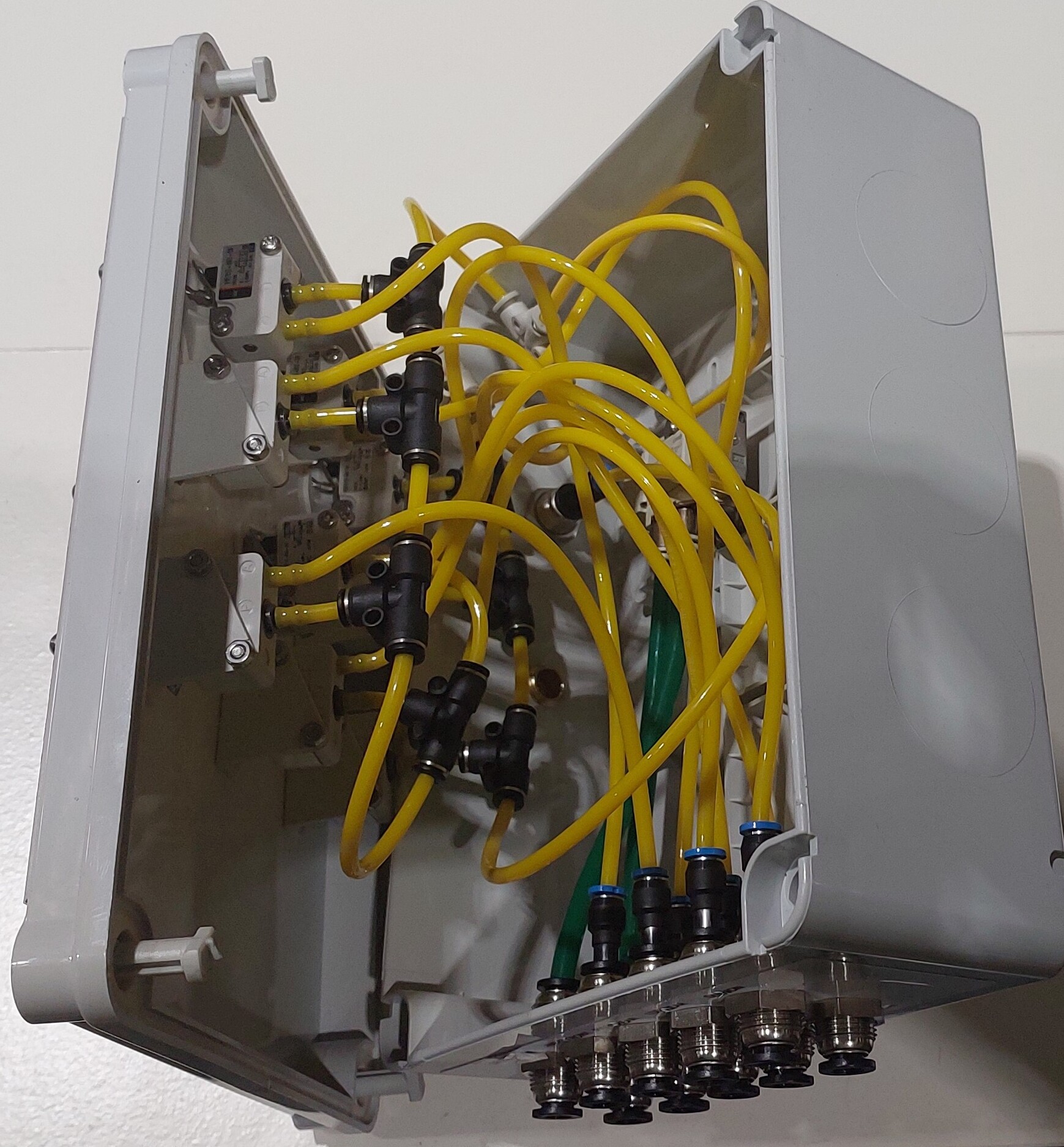

  • Internally plumbed with 4mm high-quality flexible tubing

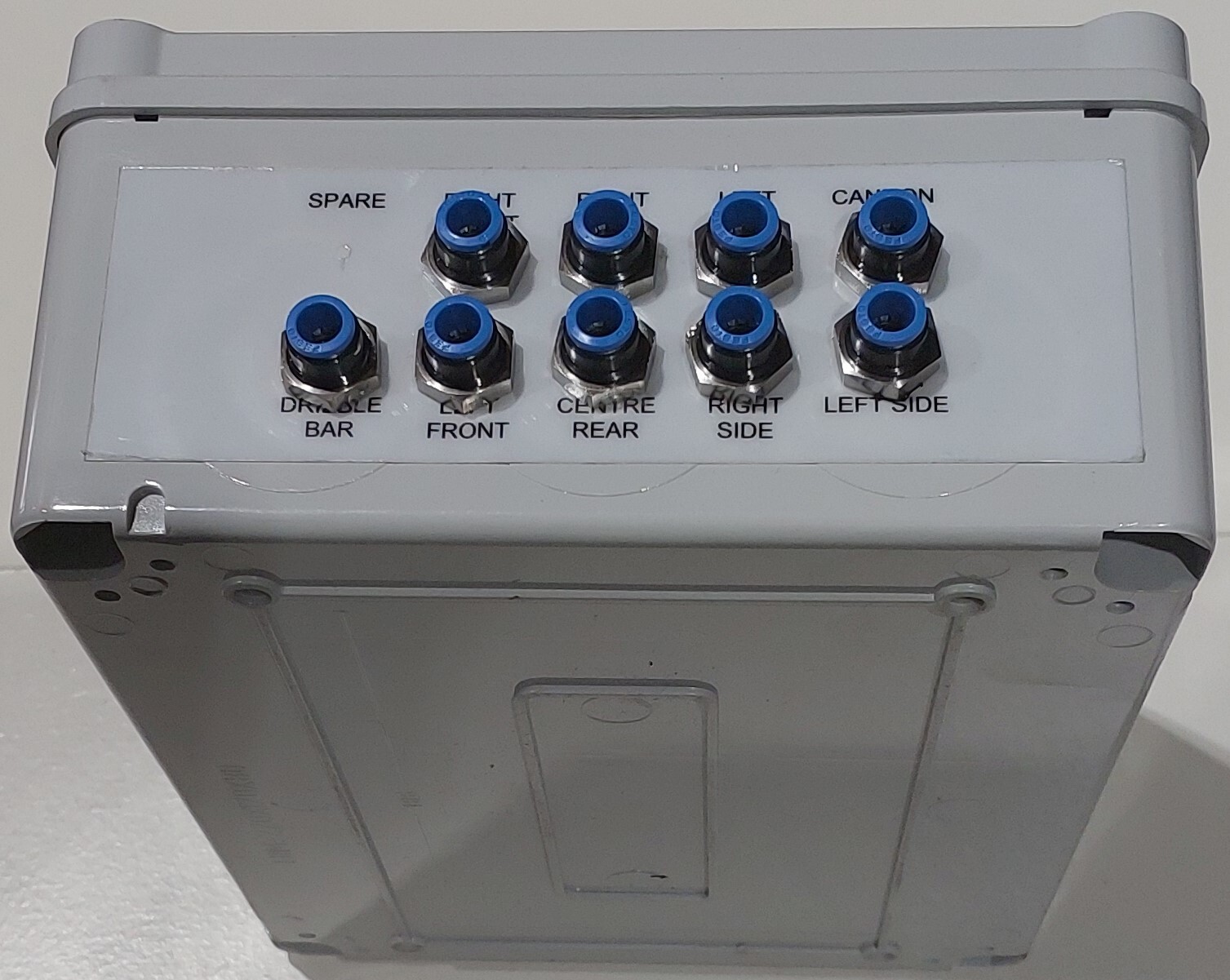

  • External bulkhead ports for all airlines (6mm) at bottom of box
  • Fully tested
  • Single 6mm pneumatic supply line
  • Dustproof box
  • Fully serviceable

Contact us to customise functions

 *Exclusive to Water Wise Trucks Parts - Custom made to order*

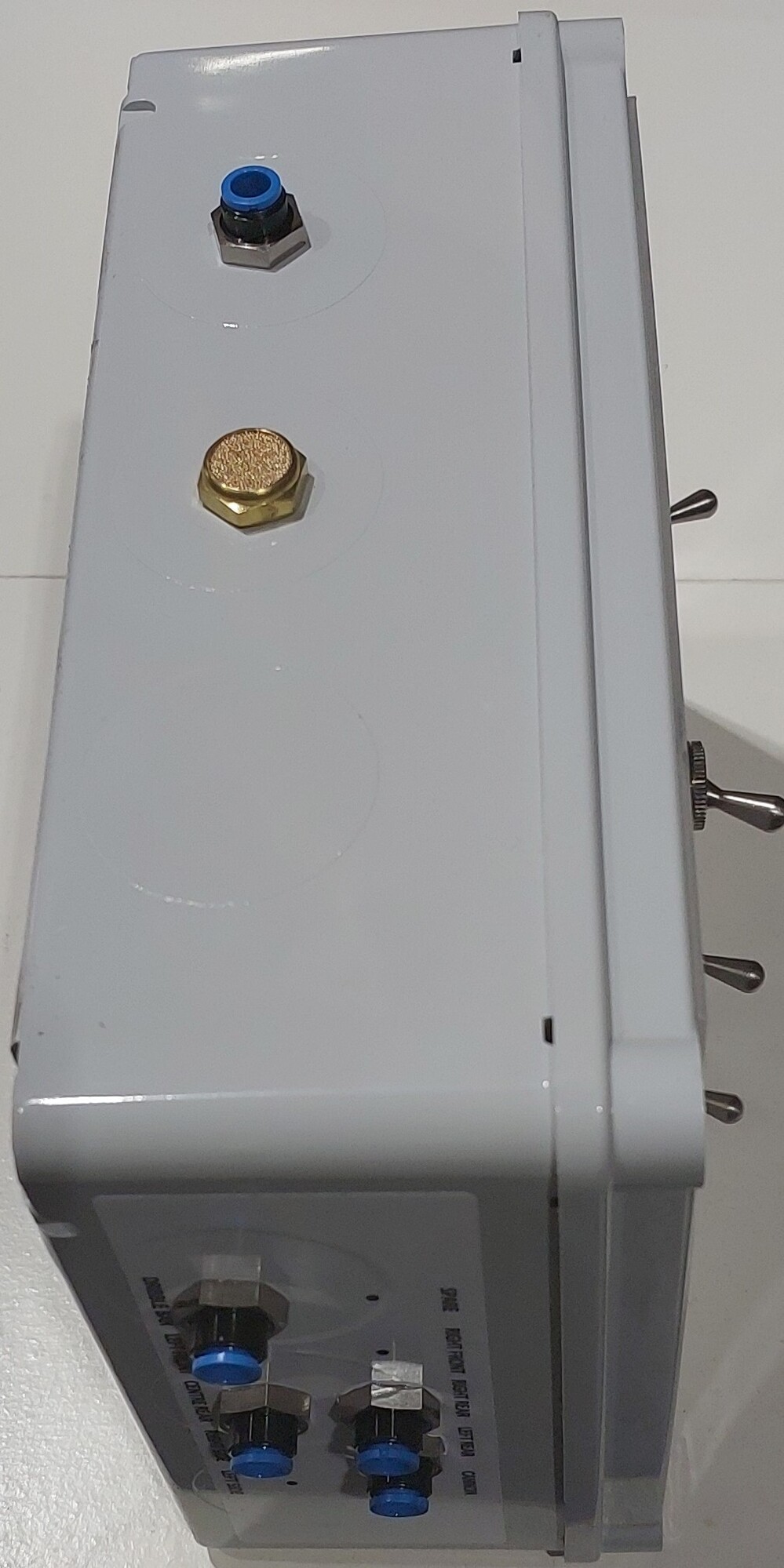

  • Air Valve Silencer 1/4 (BSLM02)
  • SMC Air Switches - Toggle 3/2 (PNSW32-CO)
  • Bulkhead Fitting 6mm to 4mm (PMM0406)
  • Bulkhead Fitting 6mm (PM06)
  • 4mm Nylon Flexible Tubing (PA4-4B-B200)
  • Control Box Blank (CSSWBOX-BL)
  • Control Box Face Plate (CS110121A)
  • Air Fitting Tee Equal 4mm (PUT04)


Dimensions: 0.200m (w) x 0.23m (l) x 0.10m (h)
Weight: 2kg
Cubic: 0.0046m3

 *Exclusive to Water Wise Trucks Parts - Custom made to order*



Brand Water Wise Truck Parts
Shipping Weight 2.5000kg
Shipping Width 0.170m
Shipping Height 0.080m
Shipping Length 0.220m
Shipping Cubic 0.002992000m3
