Electric over Air Control System - 9 Function - WIRELESS
PART #: CS110121SYS-WS-9
Electric over Air Control System - Function - WIRELESS
We can ship your order on your own freight Account. Just leave you Freight Company's Name, The name of your account and your account number in the box below and we will do the rest.
Pick up is available form our Footscray warehouse Located at 15 Mephan Street, Footscray, Victoria. items can be collected between 9:00AM to 4:30PM Monday to Thursday and 9.00am to 12.00pm Fridays. Please bring a copy of your invoice with you.

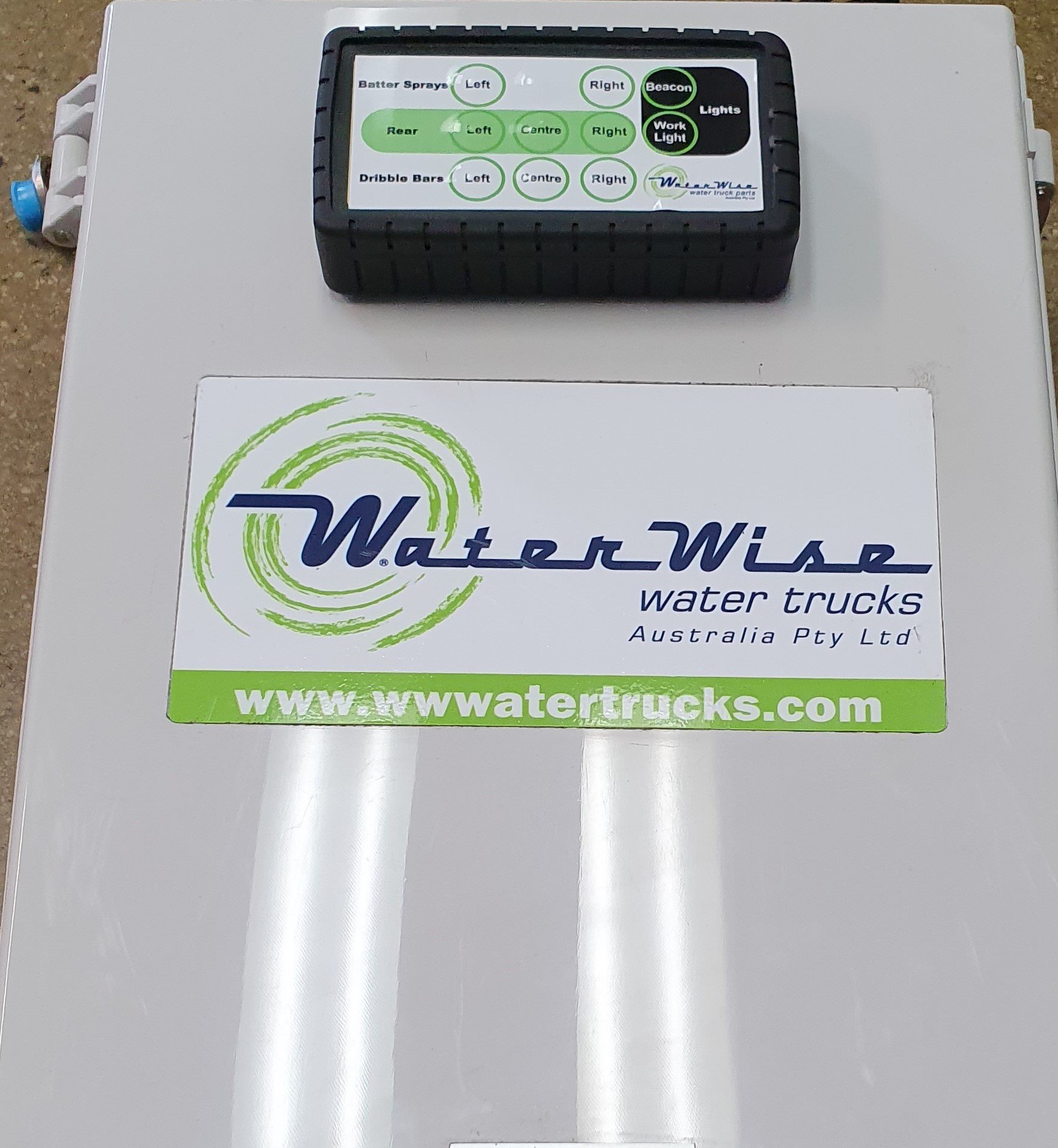

The CS110121SYS-WS-9 is a complete 12V or 24V wireless 9 Function control system. The in-cab control box/handpiece is internally wired with a 9V battery, while the solenoids are housed in an external weatherproof (IP65 rated) box that can be mounted on the tank. Functions can be removed or added as required.

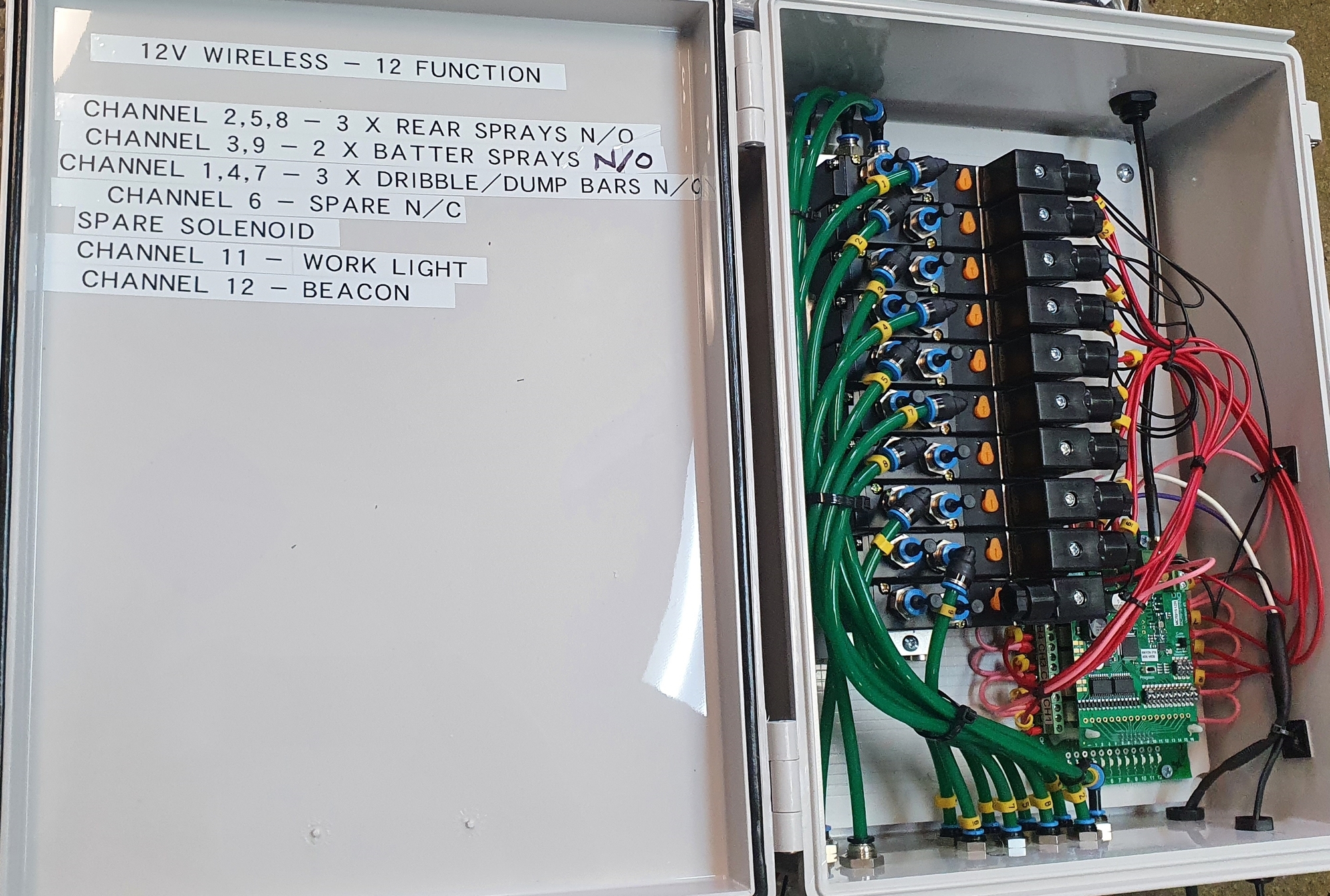

In-cab control box, electrical control cabinet with 8 solenoids mounted in weatherproof (IP65 rated) box, valve air fittings, bulkhead fittings, and internal air hose. Electrical wiring (numbered and colour coded). Wiring and air schematic.
Nine (9) Functions
- Three (3) x Rear Sprays - Normally Open (N/O) or 'One Way' (One Airline)
- Two (2) x Side Sprays - Normally Open (N/O) or 'One Way' (One Airline)
- Three (3) x Dribble Bars - Normally Closed (N/C) or 'One Way' (One Airline)
- One (1) x Beacon - Function
- One (1) x Working light - Function
- Solenoid valves & receiver mounted in a box.
- External (Relocatable) Aerial

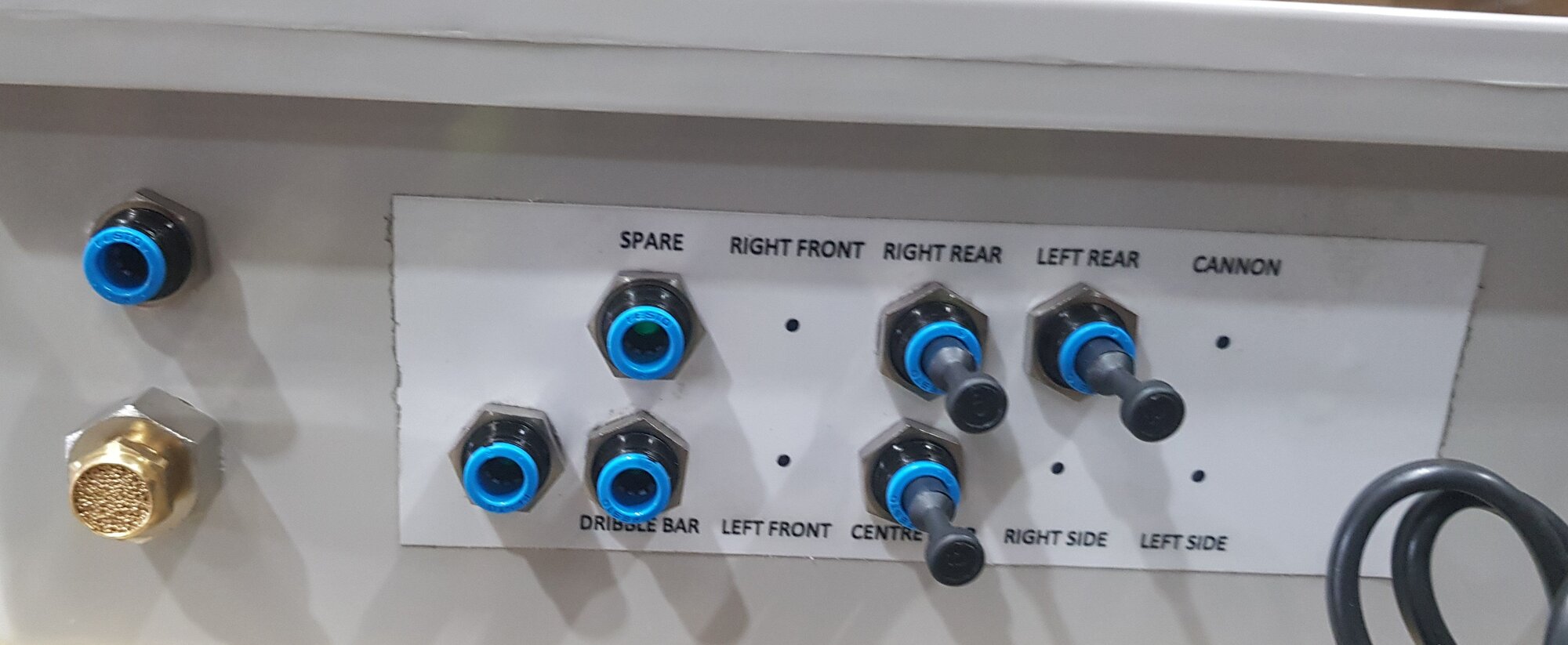

- 6mm bulkheads to suit 6mm airline
- CONFIGURATION CAN BE MODIFIED AS REQUIRED - CAN BE MADE TO ORDER (Refer Control System Requirement - Customer Selection Brochure)
Dimensions: 0.30m (w) x 0.50m (l) x 0.120m (h)
|Brand||Water Wise Truck Parts|
