Electric over Air Control System - 7 Function - WIRELESS. Pump, Beacon & Pneumatic Functions

PART #: CS110121SYS-WS-ML-7

Momentary & Latching Functions

$3,026.10
Sold Out - Backorder Available

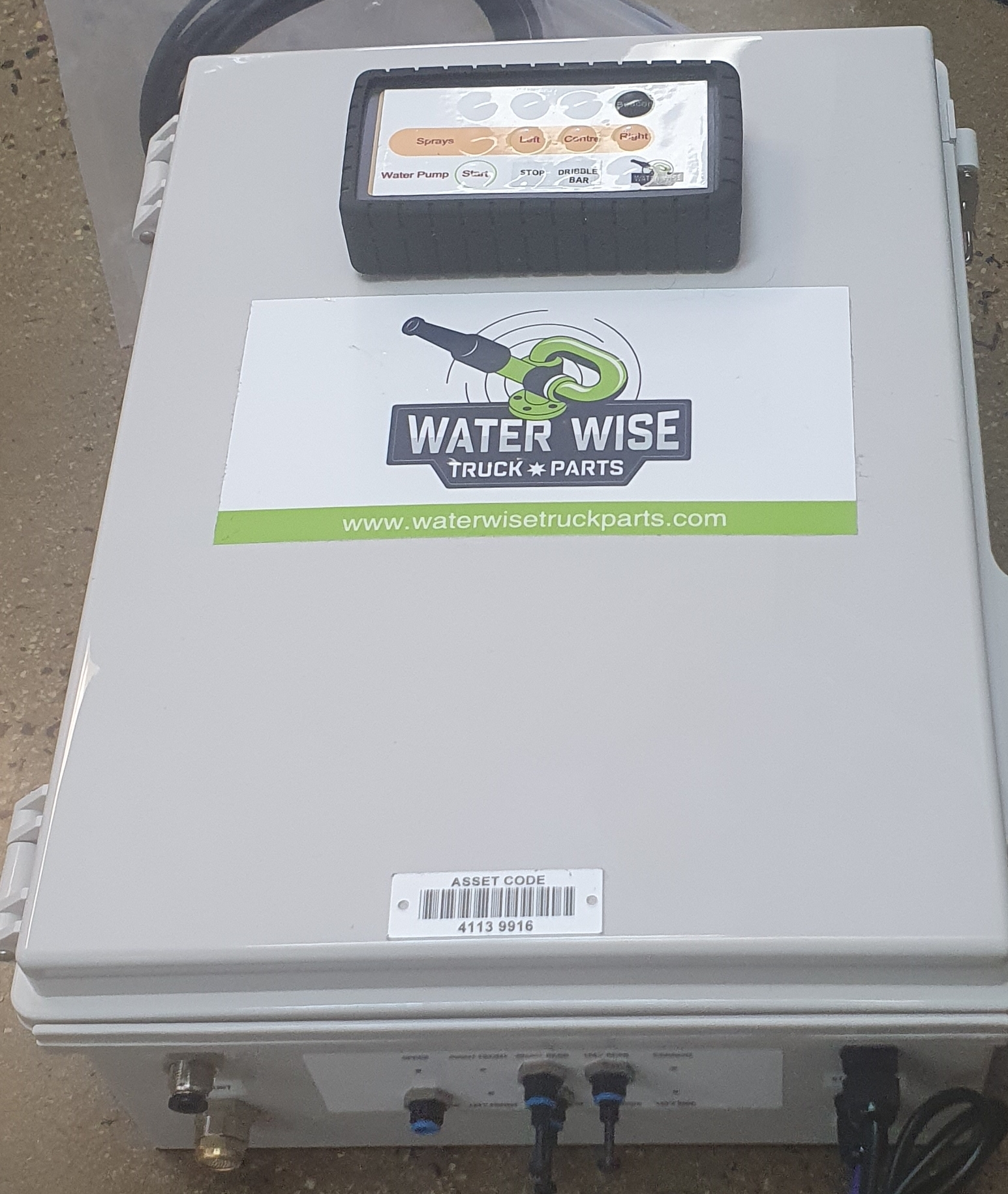

The CS110121SYS-WS-ML-7  is a complete 12V (24V on request) wireless seven (7) Function control system. The in-cab handpiece is internally wired with a 9V battery, while the solenoids are housed in an external weatherproof (IP65 rated) box that can be mounted on the tank. Functions can be removed or added as required.

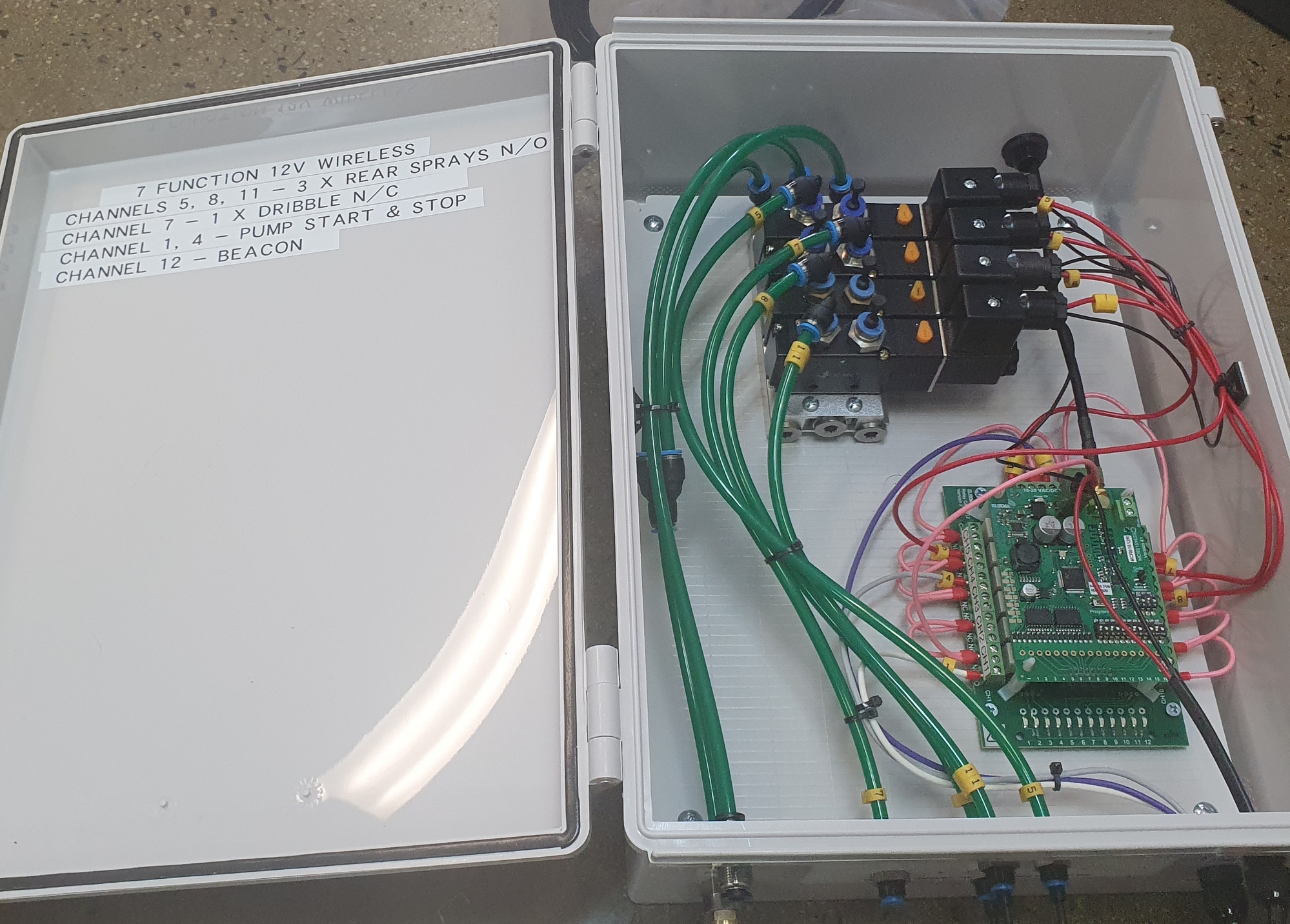

In-cab control box, electrical control cabinet with Four (4)  x Latching Pneumatic Solenoids, One (1) x Latching Beacon function & Two (2) x Momentary Pump Start & Stop functions mounted in weatherproof (IP65 rated) box, valve air fittings, bulkhead fittings, and internal air hose. Electrical wiring (numbered and colour coded). Wiring and air schematic.

Seven (7) Functions

  • Three (3) x Rear Sprays - Normally Open (N/O) or 'One Way' (One Airline)
  • One (1) x Dribble Bar  - Normally Closed (N/C) or 'One Way' (One Airline)
  • One (1) x Beacon - Function
  • One (1) x Pump Start - Function (Momentary)
  • One (1) x Pump Stop - Function (Momentary)
  • Solenoid valves  & receiver mounted in a box.

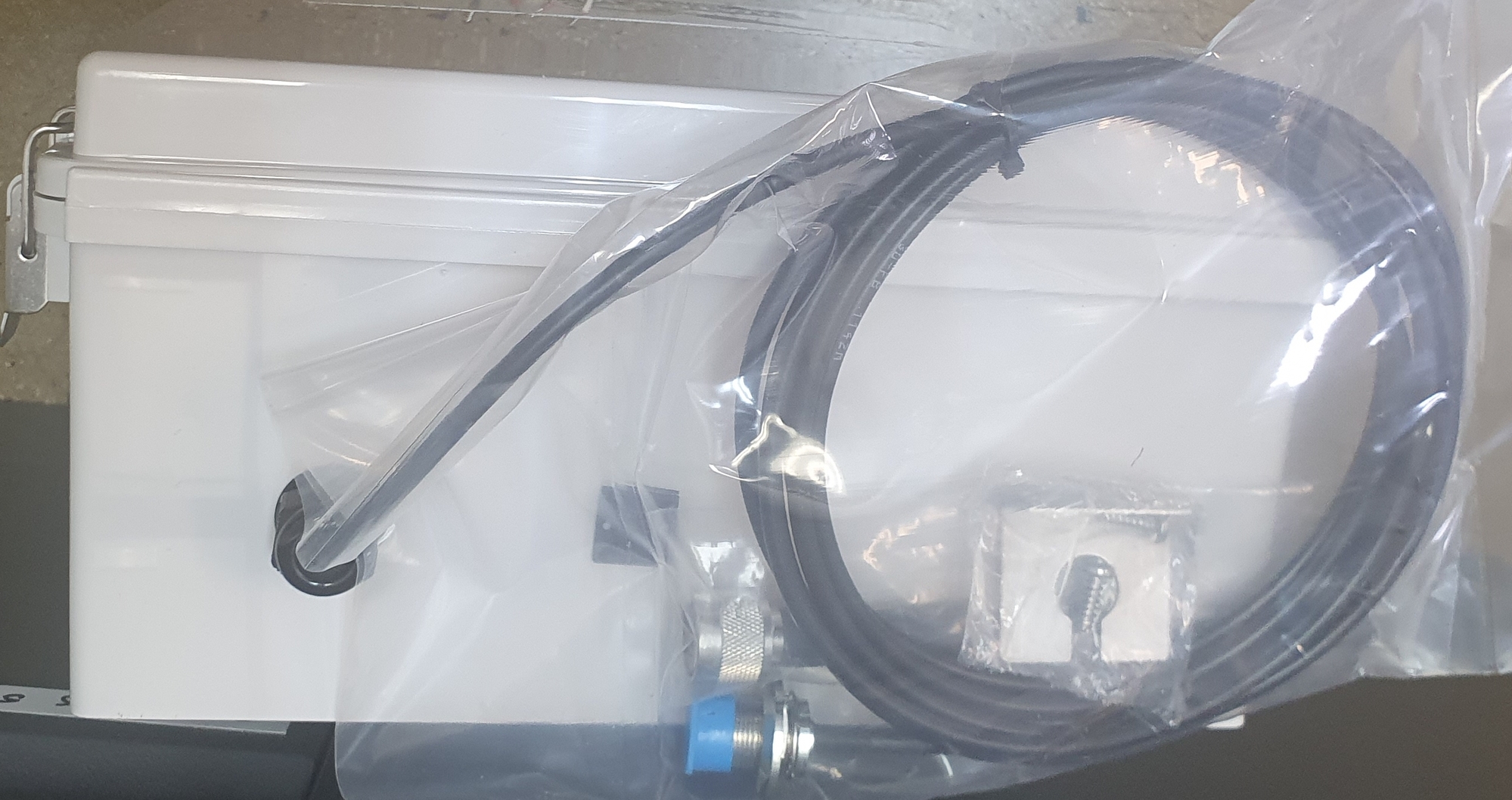

  • External (Relocatable) Aerial

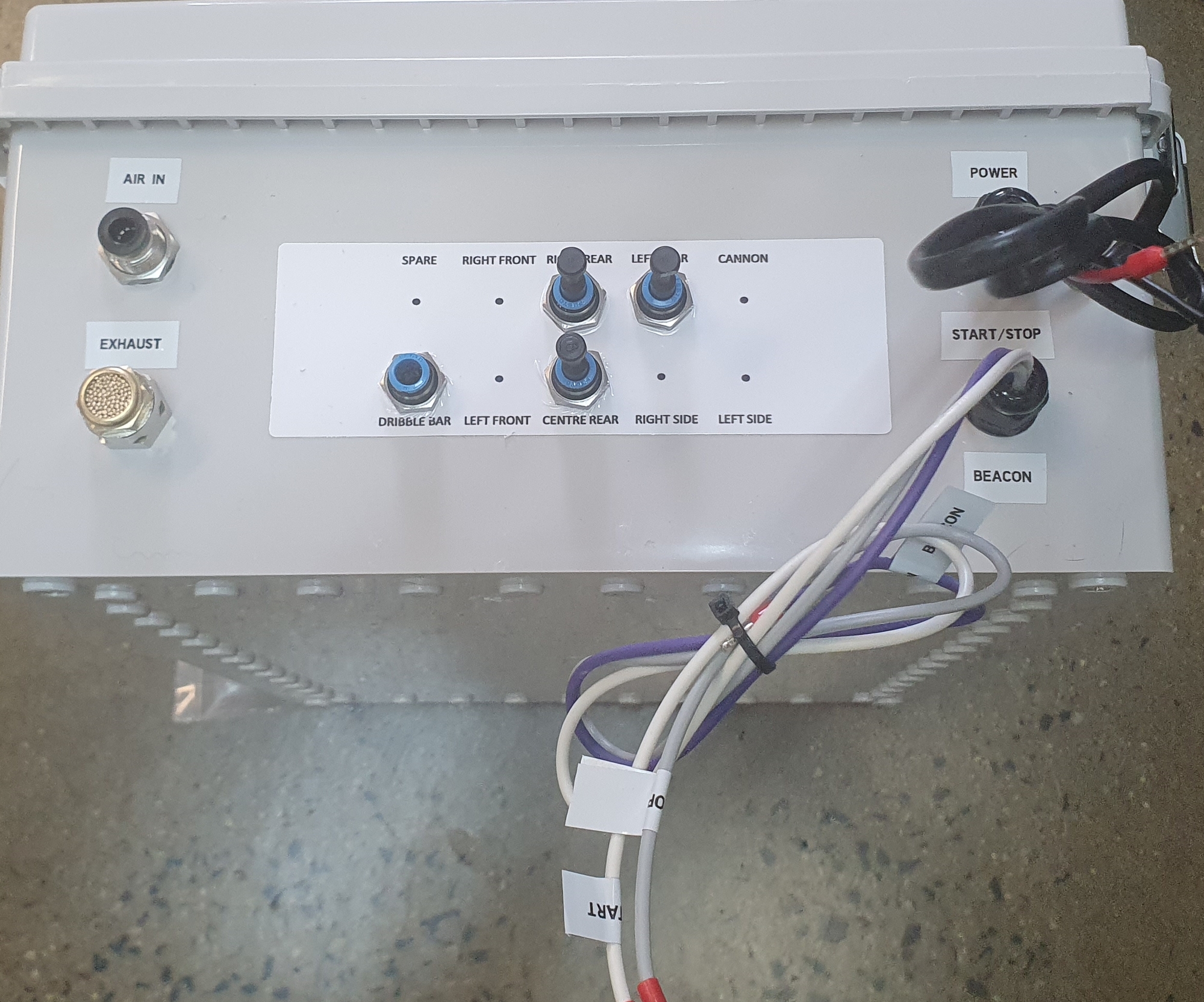

  • Cable Glands for wired functions & aerial
  • 6mm bulkheads to suit 6mm airline
  • CONFIGURATION CAN BE MODIFIED AS REQUIRED - CAN BE MADE TO ORDER

SHIPPING



SHIPPING

Dimensions: 0.30m (w) x 0.50m (l) x 0.150m (h)
Weight: 6kg
Cubic: 0.0225m3

(CS110121SYS-WS-ML-7)

SKU CS110121SYS-WS-ML-7
Brand Water Wise Truck Parts
Shipping Weight 6.0000kg
Shipping Width 0.500m
Shipping Height 0.150m
Shipping Length 0.300m
Shipping Cubic 0.022500000m3
