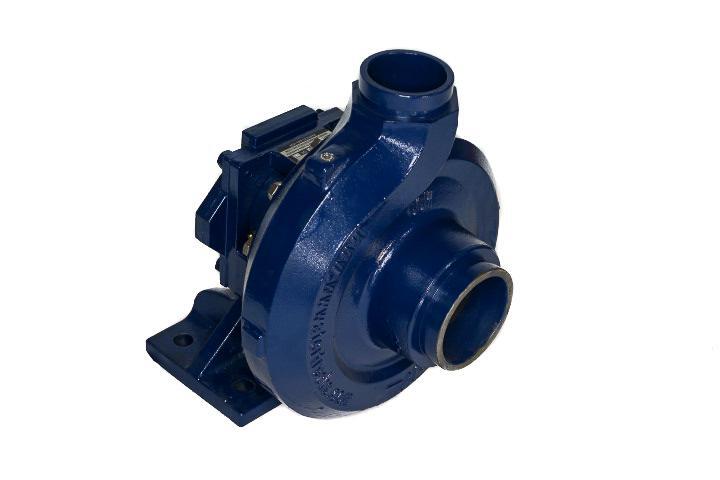

Water Wise 100mm (4") X 80mm (3") Hydraulic Driven Water Pump - 3000 L/min Spline Shaft

PART #: P100-080-ISO-CCW

Water Wise 100mm (4") X 80mm (3") Hydraulic Driven Water

$2,952.40
Sold Out - Backorder Available

FEATURES
  • Designed specifically for water trucks
  • AGM type
  • 100mm (4") x 80mm (3")
  • Mechanical Seal
  • Up to 2900 RPM
  • Up to 3000 L/min
  • Counter clockwise rotation

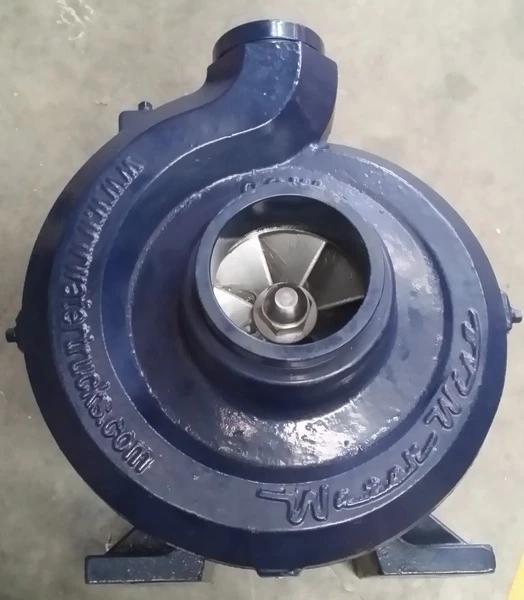

  • With stainless steel shaft and impeller

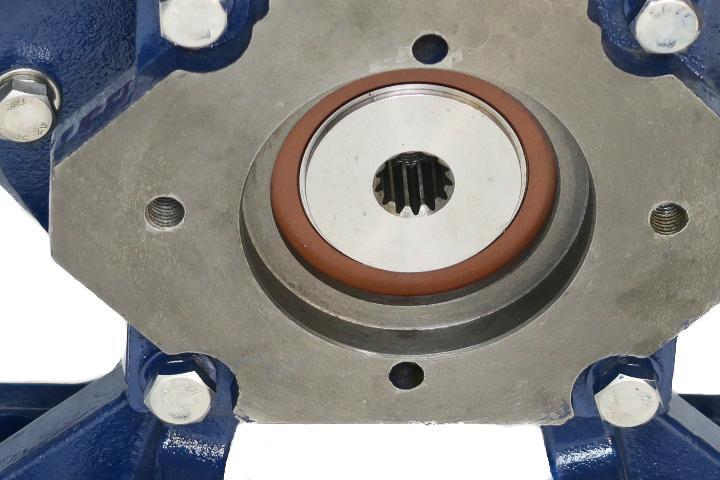

  • 7/8" - 13 tooth spline drive
  • Water Pump outlet is inline with Pump suction and Pump center line - Outlet can be rotated to suit installation
SHIPPING

Dimensions: 0.530m (w) x 0.530m (l) x 0.700m (h)
Weight: 68kg
Cubic: 0.196630000m3

KIT AVAILABLE
  • 80mm (3) Roll Grooved Nipple (080NRGST)
  • 80mm (3) Roll Grooved Coupling - Galvanised (080RGCGS)
  • 100mm (4) Roll Grooved Nipple (100NRGST)
  • 100mm (4) Roll Grooved Coupling - Galvanised (100RGCGS)

(P100-080-ISO-CCW)

SKU P100-080-ISO-CCW
Brand Water Wise Truck Parts
Shipping Weight 68.0000kg
