Water Wise B3 Hydraulic Water Pump with Mechanical Seal 100mm (4") x 80mm (3") - CW Rotation
PART #: P100-080-B3-CW-MS-HYD
Water Wise B3 Hydraulic Water Pump with Mechanical Seal
$3,666.96
In Stock
Calculate Shipping
Ship Using Your Freight Account - FREE
We can ship your order on your own freight Account. Just leave you Freight Company's Name, The name of your account and your account number in the box below and we will do the rest.
We can ship your order on your own freight Account. Just leave you Freight Company's Name, The name of your account and your account number in the box below and we will do the rest.
Pick Up - FREE (ETA: 1 days)
Pick up is available form our Footscray warehouse Located at 15 Mephan Street, Footscray, Victoria. items can be collected between 9:00AM to 4:30PM Monday to Thursday and 9.00am to 12.00pm Fridays. Please bring a copy of your invoice with you.
Pick up is available form our Footscray warehouse Located at 15 Mephan Street, Footscray, Victoria. items can be collected between 9:00AM to 4:30PM Monday to Thursday and 9.00am to 12.00pm Fridays. Please bring a copy of your invoice with you.
The B3 water pump is cast iron with a 100mm (4”) suction and a 80mm (3”) discharge and an output capacity of up to 2800 litres per minute direct coupled to a hydraulic gear motor (1" or 1 1/2” Gear Width 2000 RPM @ 2000 psi, 80 - 106 LPM)
FEATURES
- Mechanical Seal
- 2800L/min
- Steel keyed Shaft
- Grooved Suction and Discharge
- Maximum Dynamic Head 27 metres
- Impeller Diameter 230 mm (9")
- Cast iron with 100mm (4") suction and 80mm (3") discharge
- Replaces Berkeley B3ZRM
- Close Coupled Hydraulic Motor (Screw on hydraulic adapter converts bare shaft water pump to hydraulic drive water pump)
- Fully serviceable with parts support
KITTING

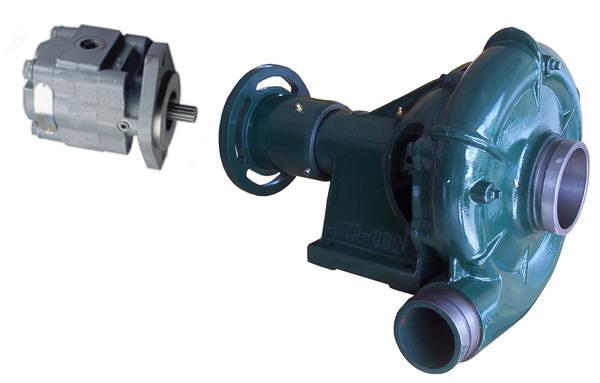

- 33 cc Hydraulic Drive Gear Motor - Permco (HYD-PGM330)
- Bare Shaft Water Pump, 2800L/min, Clockwise Rotation (P100-080-B3-CW)
- Hydraulic Drive Motor Coupling/ Mount NEW Style (P100-080-B3-HDA)
FITTING KITS AVAILABLE:
- 80mm (3) Roll Grooved Nipple (080NRGST)
- 80mm (3) Roll Grooved Coupling - Galvanised (080RGCGS)
- 100mm (4) Roll Grooved Nipple (100NRGST)
- 100mm (4) Roll Grooved Coupling - Galvanised (100RGCGS)
Cast iron with 4" suction and 3" discharge - Replaces Berkeley B3ZRM
SHIPPING
Dimensions: 0.500mm (w) x 0.500mm (l) x 0.600mm (h)
Weight: 80kg
Cubic: 0.150000000m3
(P100-080-B3-CW-MS-HYD)
| SKU | P100-080-B3-CW-MS-HYD |
| Brand | Water Wise Truck Parts |
| Shipping Weight | 80.0000kg |
