Water Wise Hydraulic Driven Water Pump 100mm (4") X 80mm (3") - 3000 LPM with Stainless Steel Impeller & Spline Shaft

PART #: P100-080-ISO-CCW-HYD

Includes Permco Hydraulic Gear Motor Connected to Pump

$4,753.76
In Stock

Complete water pump (Replaces AGM water pump) with close coupled Permco hydraulic motor.

FEATURES
  • Designed specifically for water trucks
  • AGM type
  • 100mm (4") x 80mm (3")
  • Mechanical Seal
  • 2900 RPM Speed
  • 3000 L/min Volume
  • Counter clockwise rotation (CCW)
  • With stainless steel shaft and impeller

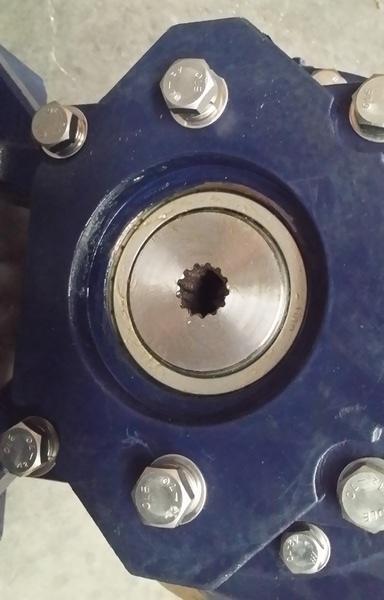

  • 7/8" - 13 tooth spline drive
  • Water Pump outlet is inline with Pump suction and Pump center line - Outlet can be rotated to suit installation

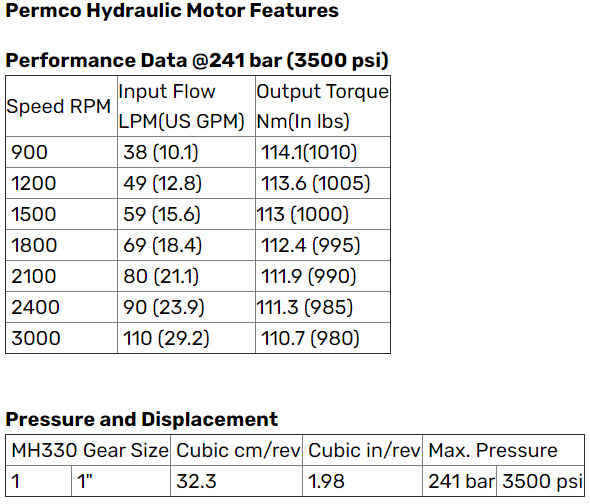

  • 33 cc Hydraulic Drive Gear Motor - Permco HYD-PGM330 - Hydraulic Motor can be changed to 48cc/rev or 24cc/rev if required
WATER PUMP KIT (WATER INLET & OUTLET) SOLD SEPARATELY INCLUDES
  • 80mm (3) Roll Grooved Nipple (080NRGST)
  • 80mm (3) Roll Grooved Coupling (080RGCGS)
  • 100mm (4) Roll Grooved Nipple (100NRGST)
  • 100mm (4) Roll Grooved Coupling (100RGCGS)

SHIPPING

Dimensions: 0.45m (w) x 0.55m (l) x 0.54m (h)
Weight: 88kg
Cubic: 0.13365m3

WATER PUMP FITTINGS KIT AVAILABLE:
  • 80mm (3) Roll Grooved Nipple (080NRGST)
  • 80mm (3) Roll Grooved Coupling (080RGCGS)
  • 100mm (4) Roll Grooved Nipple (100NRGST)
  • 100mm (4) Roll Grooved Coupling (100RGCGS)
WE ALSO RECOMMEND
  • Water Wise Water Trucks 40mm Pressure Relief Valve (040PRVBR)
  • Water Wise Water Trucks 80mm (3 inches) Butterfly Valve Spring Return - Air Actuated (080BSRSS)

(P100-080-ISO-CCW-HYD)

SKU P100-080-ISO-CCW-HYD
Brand Water Wise Truck Parts
Shipping Weight 88.0000kg
