Four (4) Function Pneumatic Switch (SMC Switches) in Cab Control Plastic Box
PART #: CS110121PLPN-WT-P4-SMC
4 x Toggle Switch Control Box - SMC SWITCHES
$582.05
In Stock
Calculate Shipping
Ship Using Your Freight Account - FREE
We can ship your order on your own freight Account. Just leave you Freight Company's Name, The name of your account and your account number in the box below and we will do the rest.
We can ship your order on your own freight Account. Just leave you Freight Company's Name, The name of your account and your account number in the box below and we will do the rest.
Express Post - $40.80 (ETA: 1 days)
Express Post satchels can be deliverd to PO Boxes Australia wide.
Express Post satchels can be deliverd to PO Boxes Australia wide.
Pick Up - FREE (ETA: 1 days)
Pick up is available form our Footscray warehouse Located at 15 Mephan Street, Footscray, Victoria. items can be collected between 9:00AM to 4:30PM Monday to Thursday and 9.00am to 12.00pm Fridays. Please bring a copy of your invoice with you.
Pick up is available form our Footscray warehouse Located at 15 Mephan Street, Footscray, Victoria. items can be collected between 9:00AM to 4:30PM Monday to Thursday and 9.00am to 12.00pm Fridays. Please bring a copy of your invoice with you.

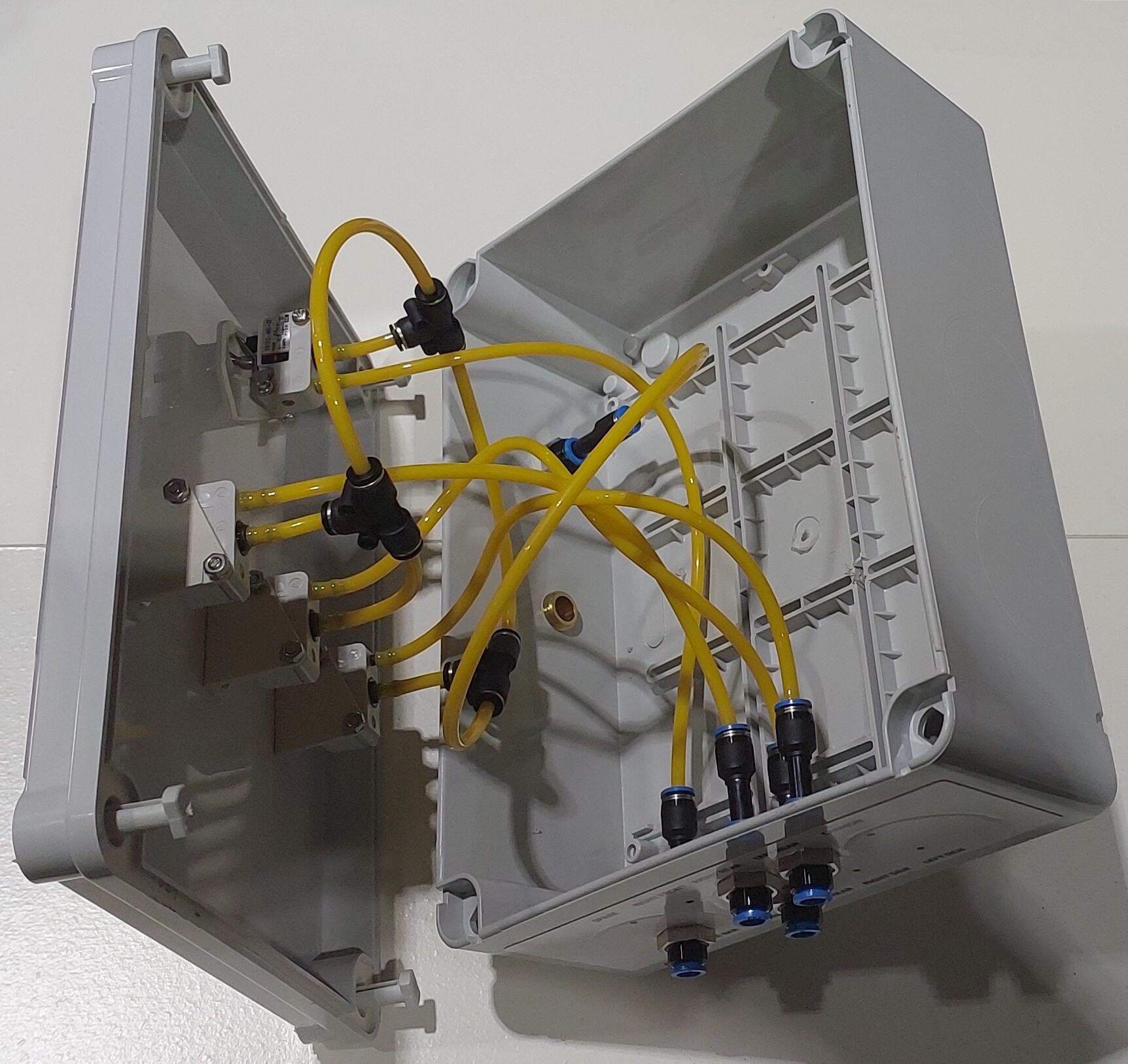

The CS110121PLPN-WT-P4-SMC control box is a plastic box 170mm wide, 220mm long and 80mm deep, internally plumbed, externally labelled with four SMC pneumatic toggle switches.
Functions can be added as required.
FEATURES

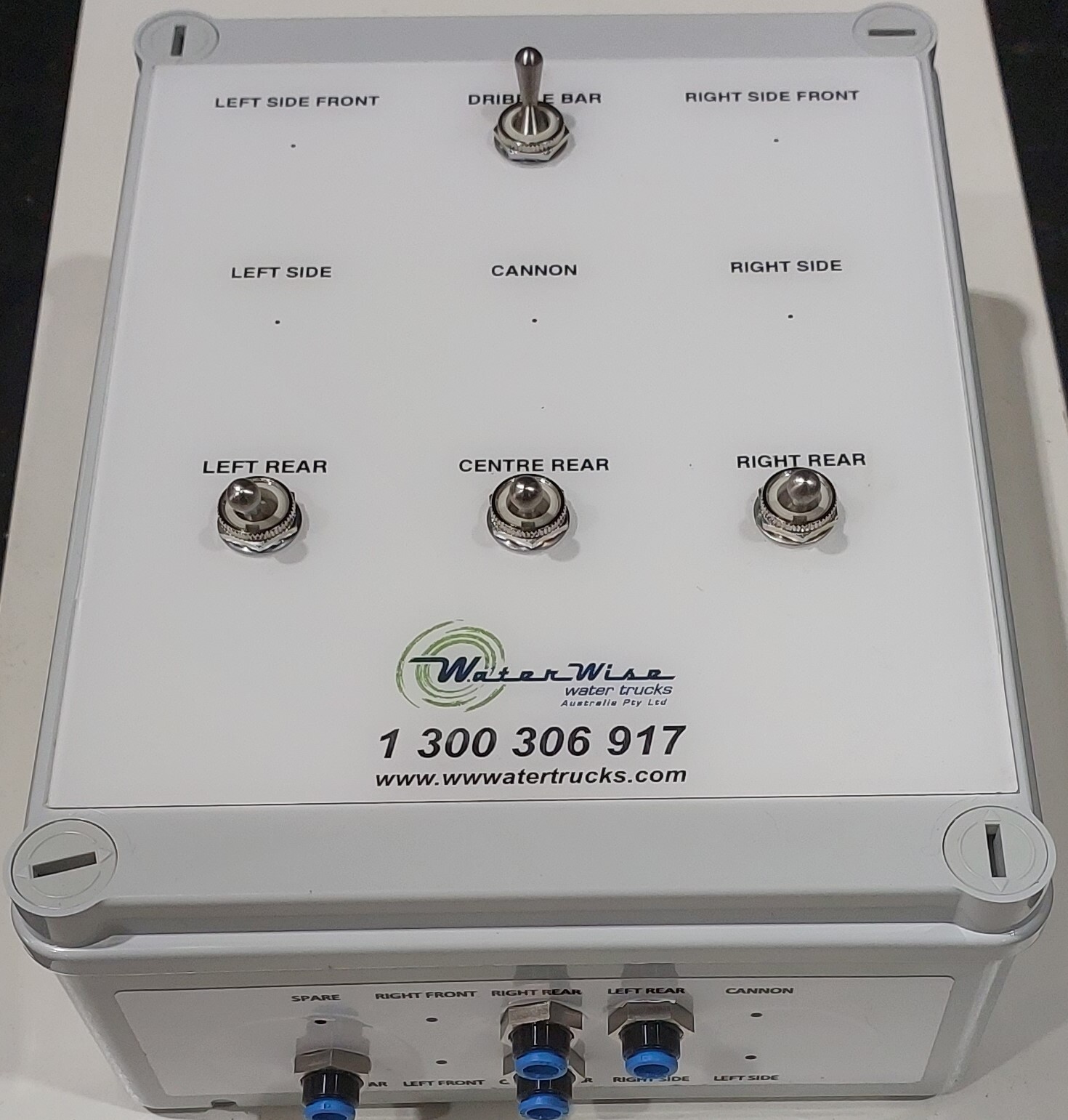

- 4 x SMC Switches, Face Plate, Outlet label, Mounted, Numbered & Plumbed in an enclosure
- 3 x Rear Spray Valves - Normally Open (N/O)
- 1 x Dribble Bar - Normally Closed (N/C)
- Internally plumbed with 4mm high-quality flexible tubing

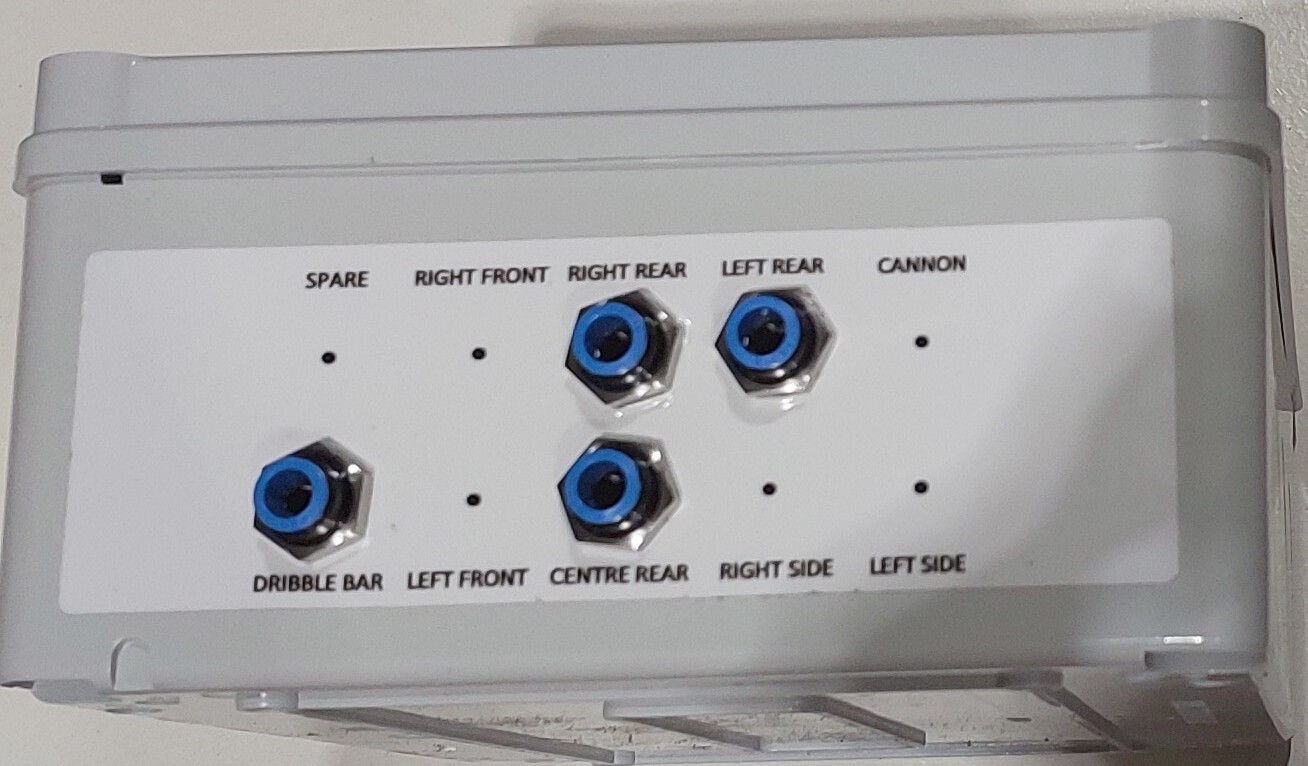

- External bulkhead ports for all airlines (6mm) at bottom of box
- Fully tested
- Single 6mm pneumatic supply line
- Dustproof box
- Fully serviceable
Contact us to add additional functions (up to 9) - approximately $45 for each additional SMC Single Acting switch and approximately $73 for each additional SMC Double Acting switch.
*Exclusive to Water Wise Trucks Parts - Custom made to order*
INCLUDES
- Air Valve Silencer 1/4 (BSLM02)
- Air Switches SMC - Toggle 3/2 - 1/8 ports (PNSW32-SMC)
- Bulkhead Fitting 6mm to 4mm (PMM0604)
- Bulkhead Fitting 6mm (PM06)
- 4mm Equal Tee (PUT0400)
- 4mm Nylon Flexible Tubing (PA4-4B-B200)
- Control Box Blank (CSSWBOX-BL)
- Control Box Face Plate (CS9FN-FP)
- Airline Numbers
SHIPPING
Dimensions: 0.200m (w) x 0.22m (l) x 0.08m (h)
Weight: 2kg
Cubic: 0.00352m3
(CS110121PLPN-WT-P4-SMC)
| SKU | CS110121PLPN-WT-P4-SMC |
| Brand | Water Wise Truck Parts |
| Shipping Weight | 4.0000kg |
