LIMITED EDITION - 4 x Function Pneumatic Switch in Cab Control Box (Plastic)
PART #: CS110121PLPN-WT-P4-LE
Pneumatic Switch In Cab Control Box (Plastic) - LIMITED
RRP $477.76
$429.99
SAVE $47.77 (10%)
In Stock
Calculate Shipping
Ship Using Your Freight Account - FREE
We can ship your order on your own freight Account. Just leave you Freight Company's Name, The name of your account and your account number in the box below and we will do the rest.
We can ship your order on your own freight Account. Just leave you Freight Company's Name, The name of your account and your account number in the box below and we will do the rest.
Express Post - $40.80 (ETA: 1 days)
Express Post satchels can be deliverd to PO Boxes Australia wide.
Express Post satchels can be deliverd to PO Boxes Australia wide.
Pick Up - FREE (ETA: 1 days)
Pick up is available form our Footscray warehouse Located at 15 Mephan Street, Footscray, Victoria. items can be collected between 9:00AM to 4:30PM Monday to Thursday and 9.00am to 12.00pm Fridays. Please bring a copy of your invoice with you.
Pick up is available form our Footscray warehouse Located at 15 Mephan Street, Footscray, Victoria. items can be collected between 9:00AM to 4:30PM Monday to Thursday and 9.00am to 12.00pm Fridays. Please bring a copy of your invoice with you.

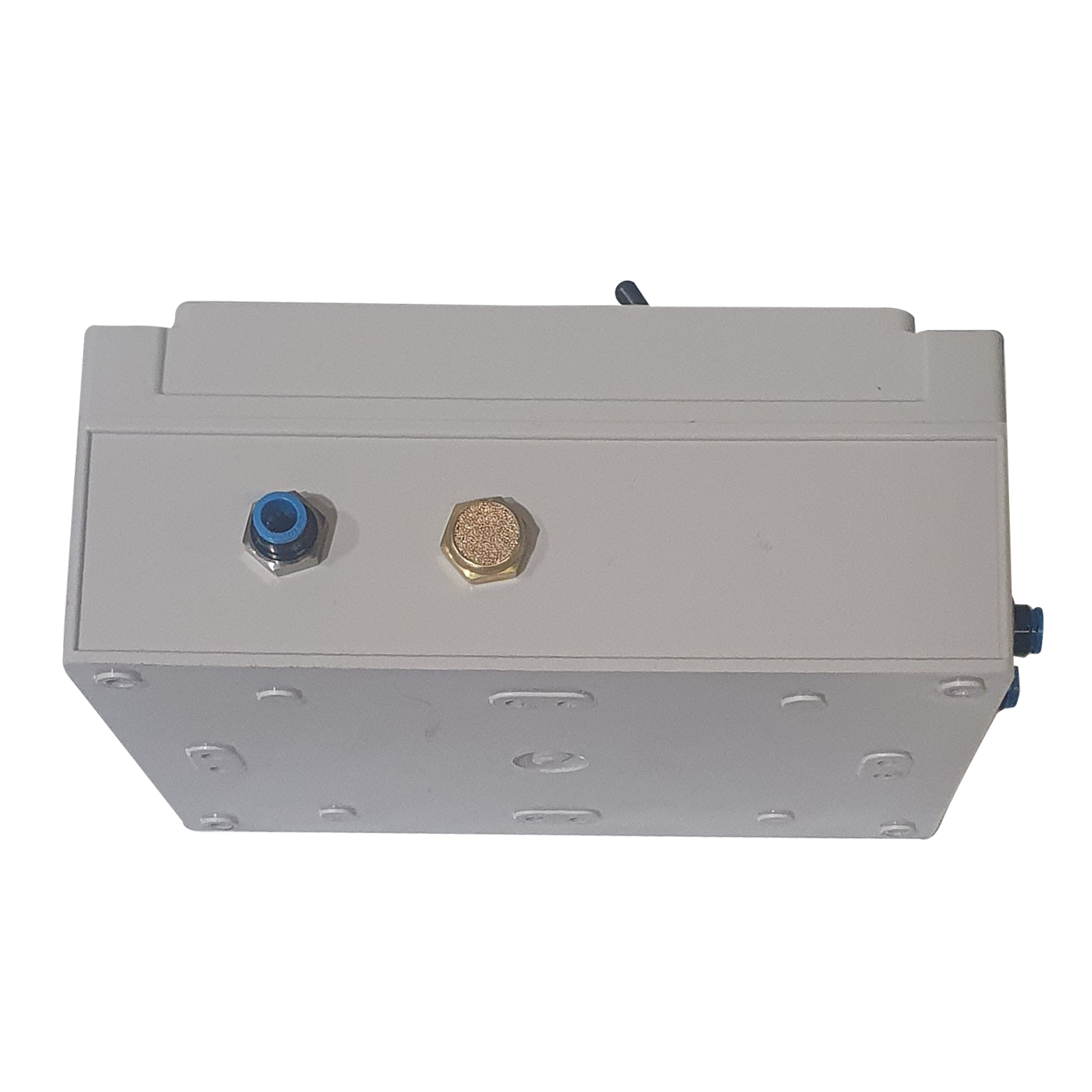

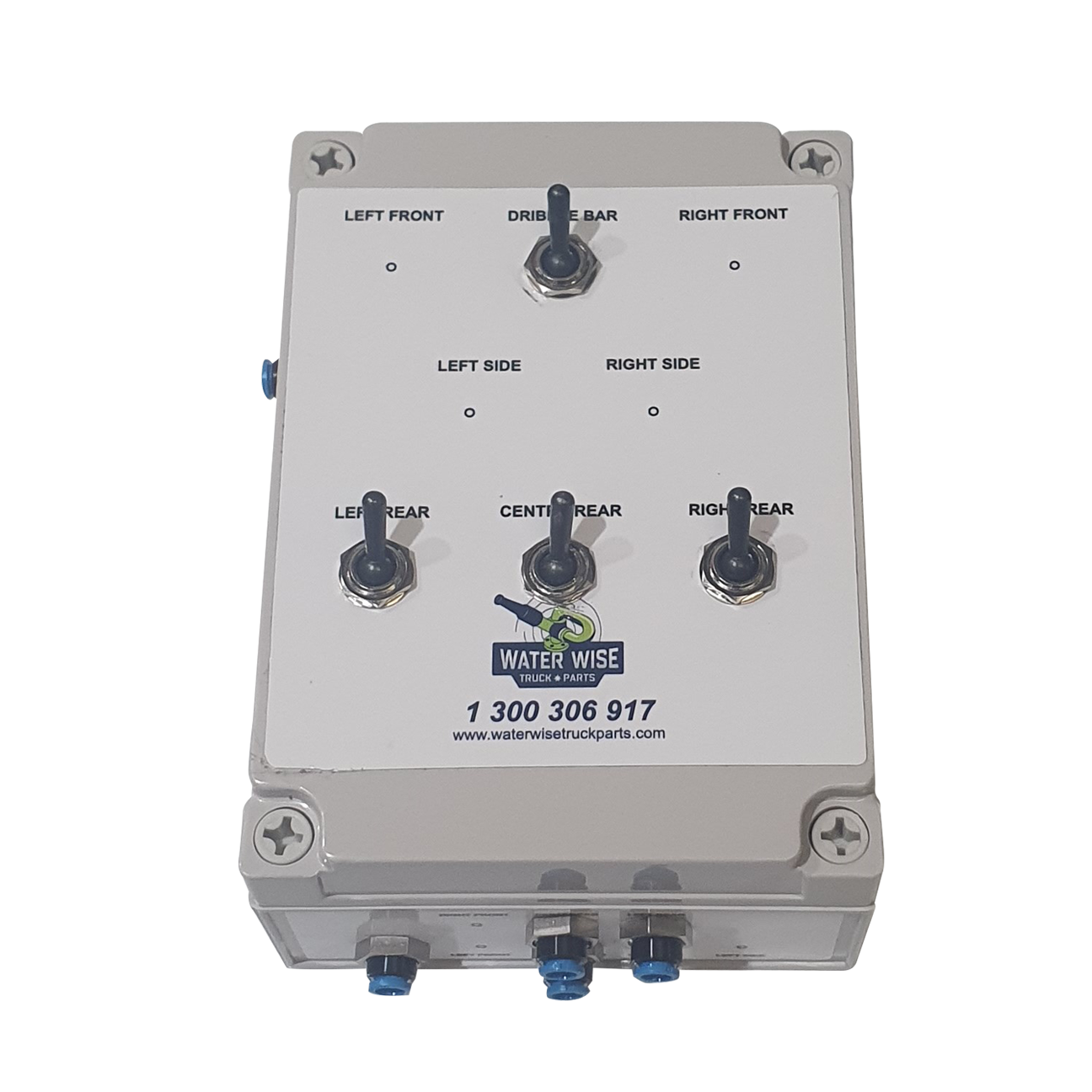

The CS110121PLPN-WT-P4-LE control box is a plastic box 125mm wide, 175mm long and 75mm deep, internally plumbed, externally labelled with four pneumatic toggle switches.
FEATURES
- 4 x Switches, Face Label, Outlet label, Mounted, Plumbed & Numbered in an enclosure
- 3 x Rear Spray Valves - Normally Open (N/O)
- 1 x Dribble Bar - Normally Closed (N/C)

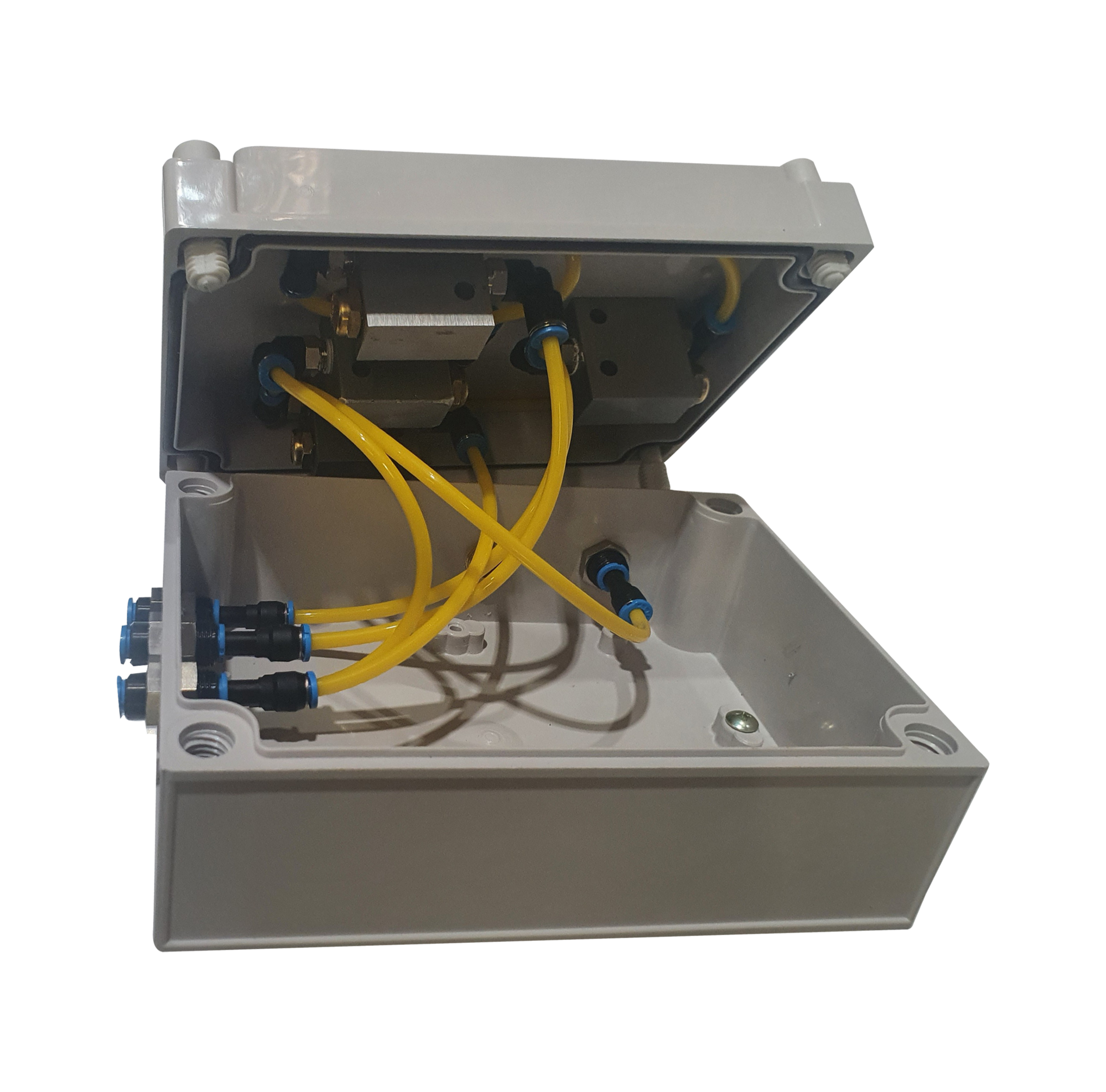

- Internally plumbed with 4mm high-quality flexible PU tubing

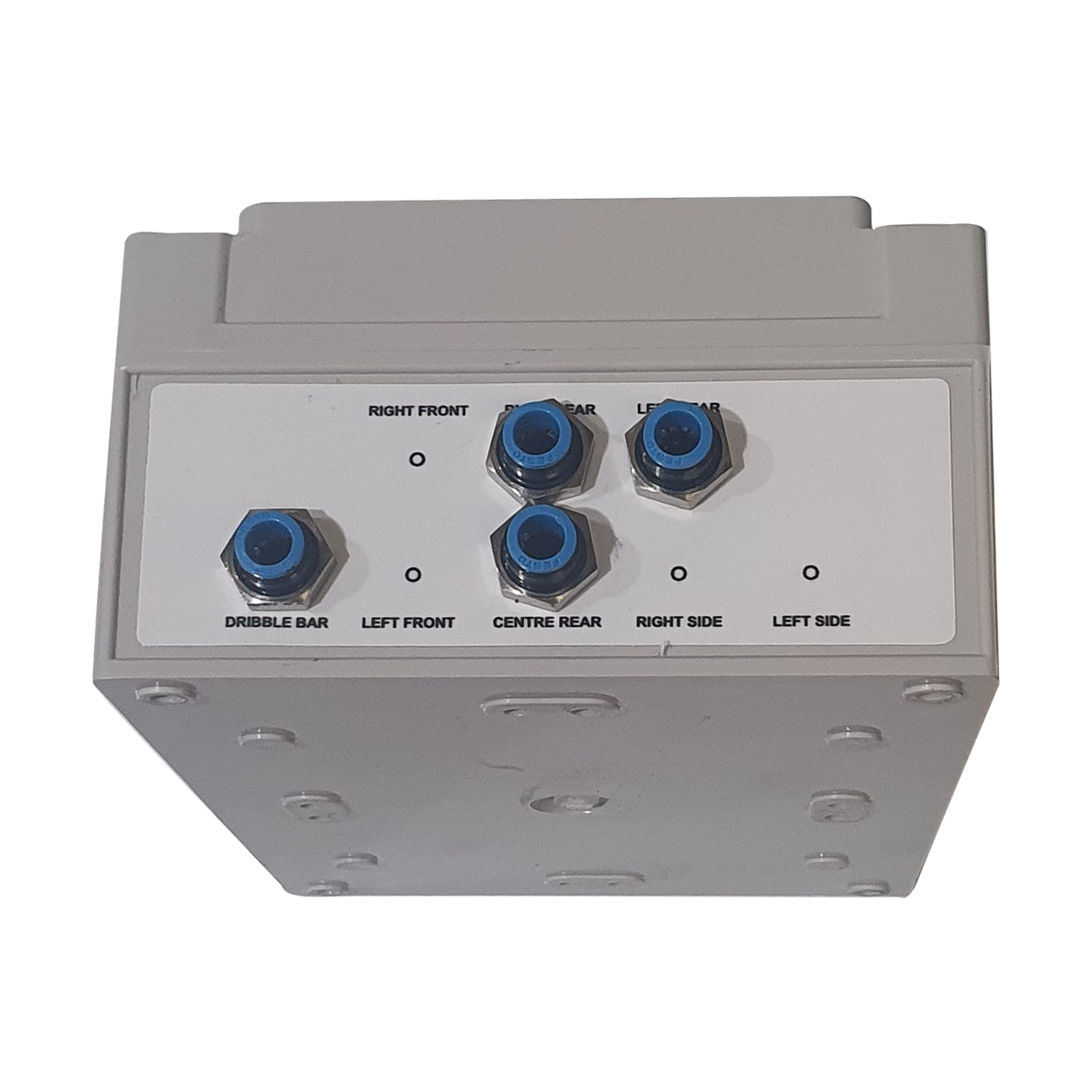

- External bulkhead ports for all airlines (6mm) at bottom of box
- Fully tested
- Single 6mm pneumatic supply line on side of box
- Breather on side of box
- Dustproof box
- Fully serviceable
*Exclusive to Water Wise Trucks Parts
INCLUDES
- Air Valve Silencer 1/4 (BSLM02)

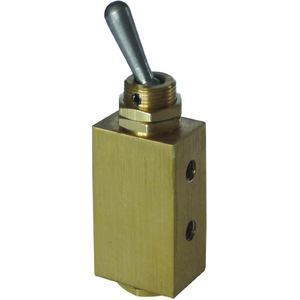

- Air Switches Shako - Toggle 3/2 - 1/8 ports (PNSW32-SHAKO)
- Bulkhead Fitting 6mm to 4mm (PMM0406)
- Bulkhead Fitting 6mm - Standard (PM06)
- Mini Air Fitting Elbow 4mm x 1/8 NPT (PL0401)
- Branch Tee- 4 mm X 1/8 (PB0401)
- 4mm Nylon Flexible Tubing (PA4-4B-B200)
- Control Box Blank (CSSWBOX-BL-SP)
- Control Box Face Plate (CS110121A-LE)
- Air Fitting Plug 4mm (PP04)
SHIPPING
Dimensions: 0.200m (w) x 0.22m (l) x 0.08m (h)
Weight: 2kg
Cubic: 0.00352m3
(CS110121PLPN-WT-P4-LE)
| SKU | CS110121PLPN-WT-P4-LE |
| Brand | Water Wise Truck Parts |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.125m |
| Shipping Height | 0.075m |
| Shipping Length | 0.175m |
| Shipping Cubic | 0.001640625m3 |
