80mm (3") Combination Spray Bar Kit - Galvanised Steel

SPECIAL - 30% off for a limited time only

RRP $1725.90

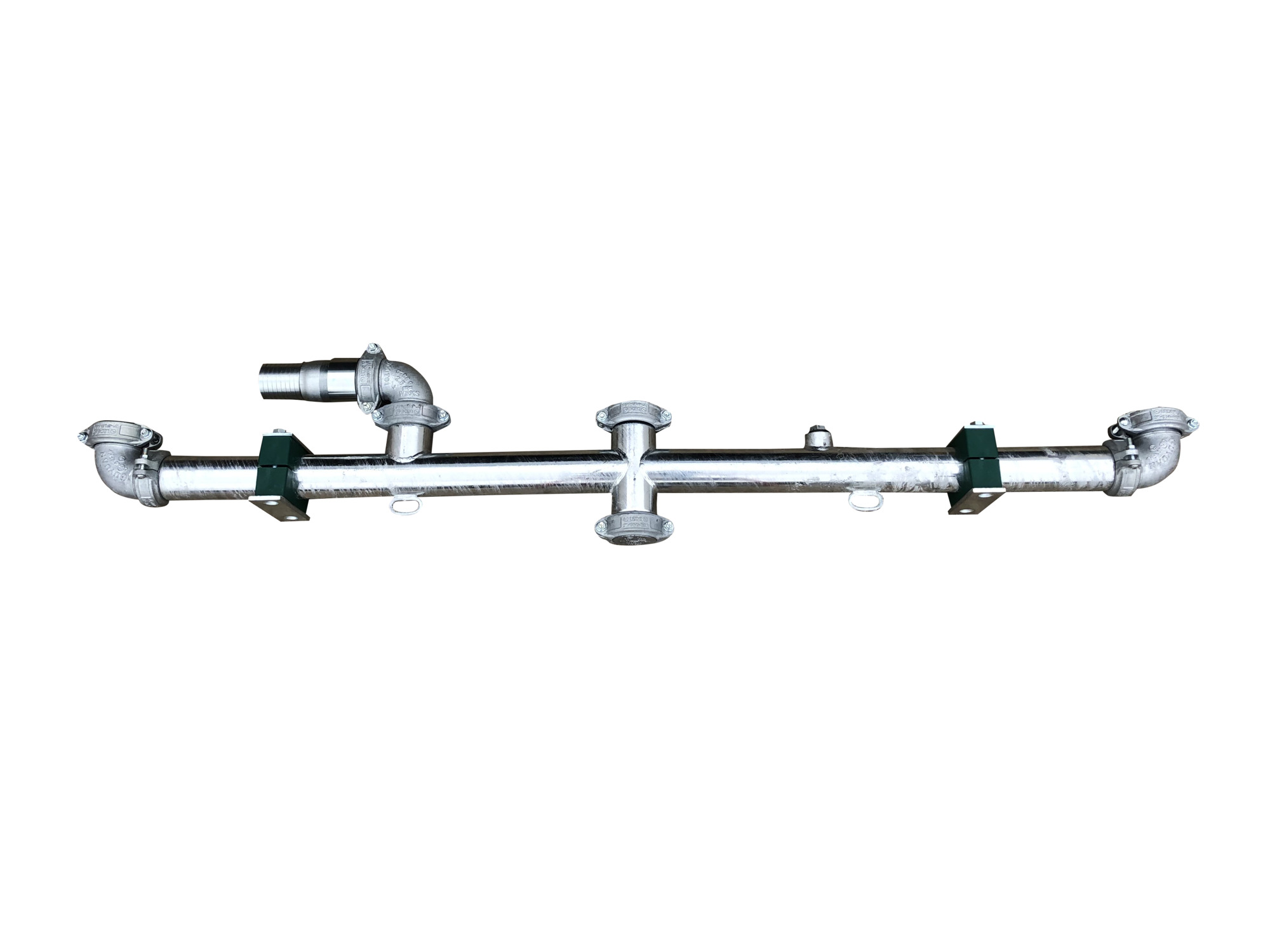

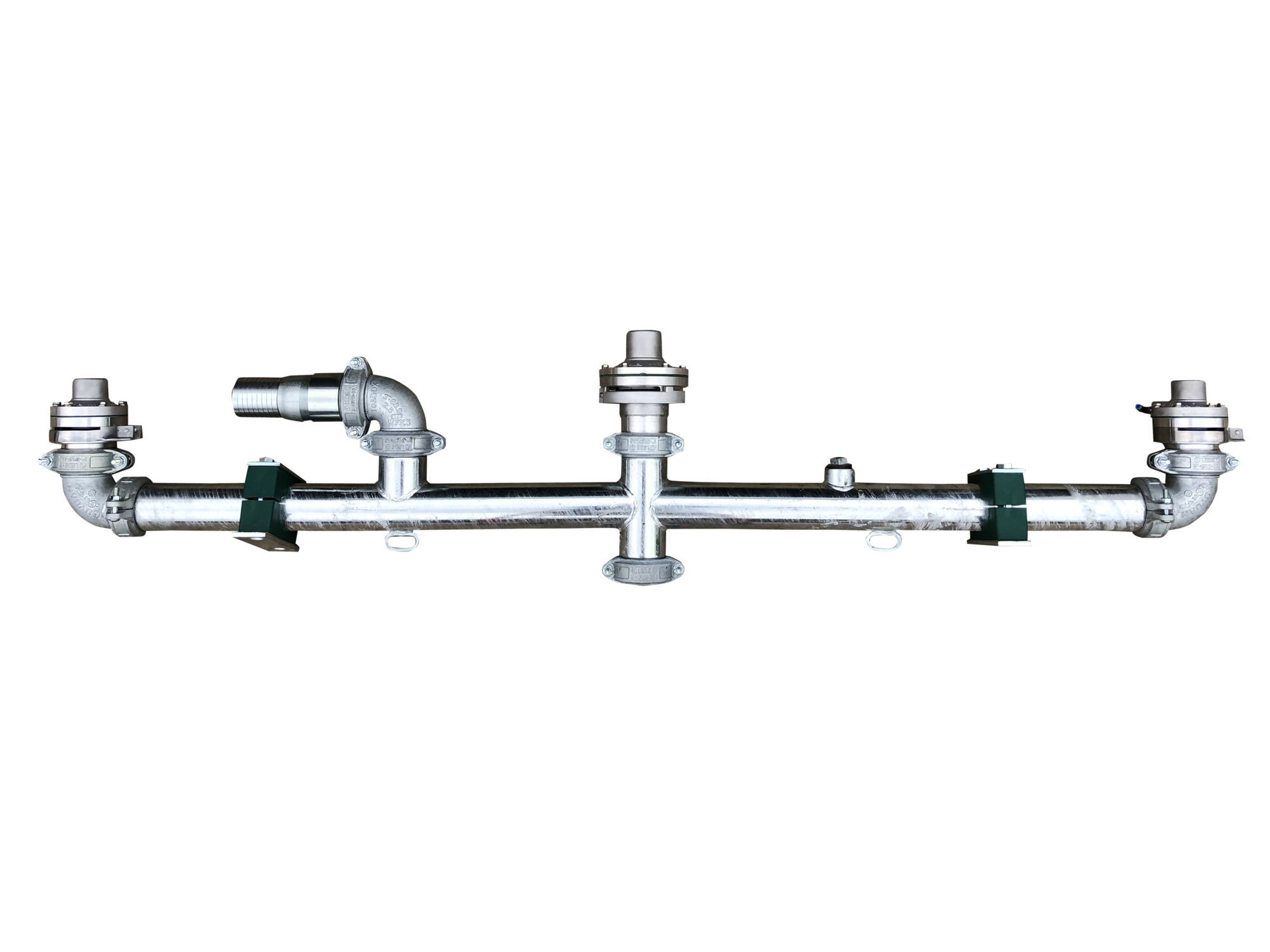

The 080SBKGS Combination Spray Bar Kit provides a quick and cost-effective way of setting up spray capabilities to a water tank (including poly, plastic, fibreglass or steel tanks).  It is made from steel fully welded then hot dipped galvanised.

FEATURES - INCLUDES ALL REQUIRED FITTINGS

• Centre Spray Valve Position
• Left Side & Right Side Spray Valves - side sprays can operate as rear facing, downward facing or horizontal batter sprays simply by adjusting the clamps (2 x Grooved Elbows, 4 x Grooved Clamps)
• Dribble bar outlet (1 x Grooved Cap & 1 x Grooved Clamp)
• Water inlet (1 x Grooved Elbow, 2 x Grooved Clamps, 1 x Grooved Nipple with Female Thread & 1 x 3" Hose Tail)
• Socket outlet for pressure relief valve and/or  hose reel - 38mm (1 1/2") socket.
• Mounting Brackets (2 x Stauff Type Clamps).
• Dribble Bar mounting links
• Can be adapted to suit Butterfly type Shutoff Valves or Spray Head Valves

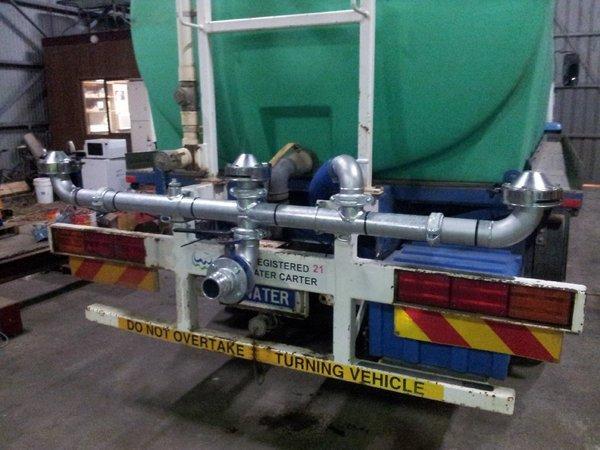

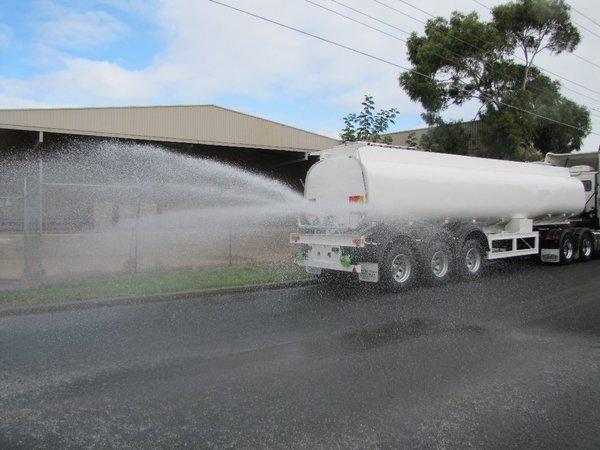

The combination spray bar can turn your water tank into a fully-fledged dust suppression water truck.

NOTE: Spray valves and spray heads are not included but all our spray valves and spray heads are compatible with this spray bar.  You may also require a control system.

SHIPPING

Dimensions: 0.09m (w) x 0.24m (l) x 1.9m (h)
Weight: 16kg
Cubic: 0.04104m3
