Bertolini Type 80mm (3") - Air Actuated

+61 1300 306 917

info@wwwatertrucks.com

Mon - Thurs 9am - 4:30pm, Fri 9am - 12pm AEST

Shipping Worldwide

RRP $501.05

$356.90

SAVE $144.15 (29%)

In Stock

Description
Specifications

SPECIAL - LIMITED TIME ONLY

KIT INCLUDES:

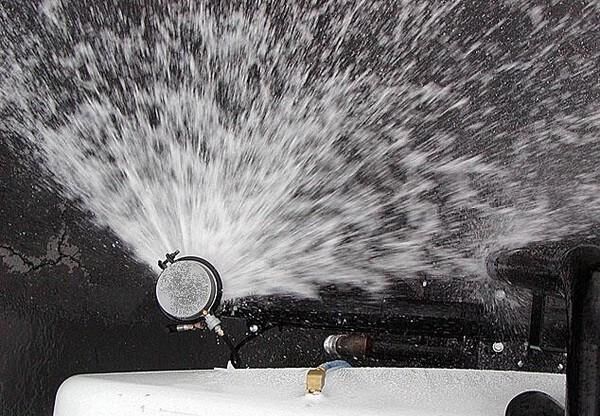

SVINT-108 Spray Valve NOTE: THE BERTOLINI STYLE SPRAY VALVE IS THE ONLY SPRAY VALVE THAT IS "NORMALLY CLOSED" (REQUIRES AIR PRESSURE TO OPEN). It is cast from Marine grade alloy with an output capacity of up to 1000 litres per minute (265 US Gallons per minute) and provides a dense even spray discharge of up to 6.7 metres (22 feet) and a spray width of up to 11 metres (36 feet). Air pressure opens the valve while an internal spring closes the valve and eliminates the need for additional shut off valves.
3" Nipple - Rolled groove & thread

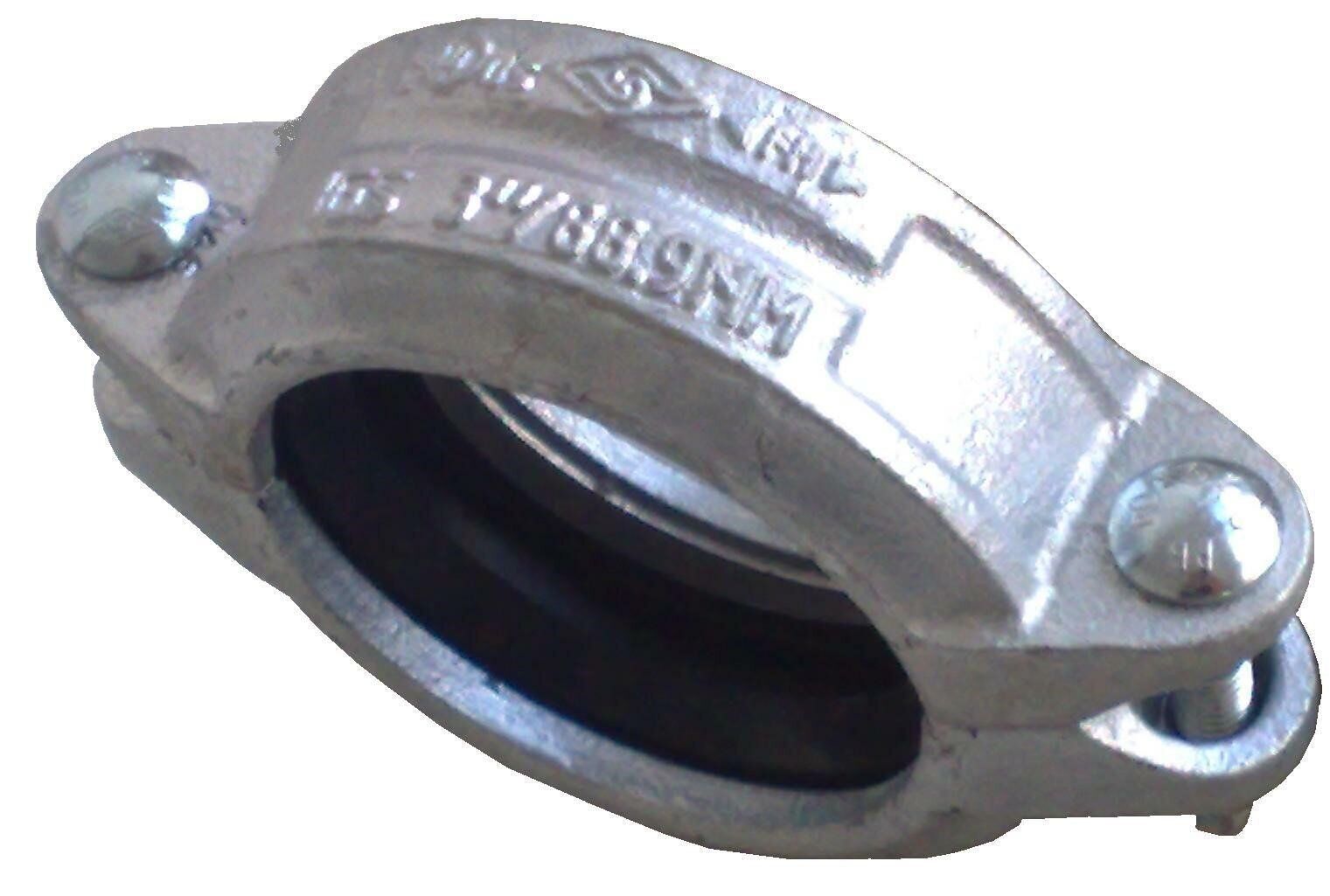

3" Groove Clamp - Galvanised

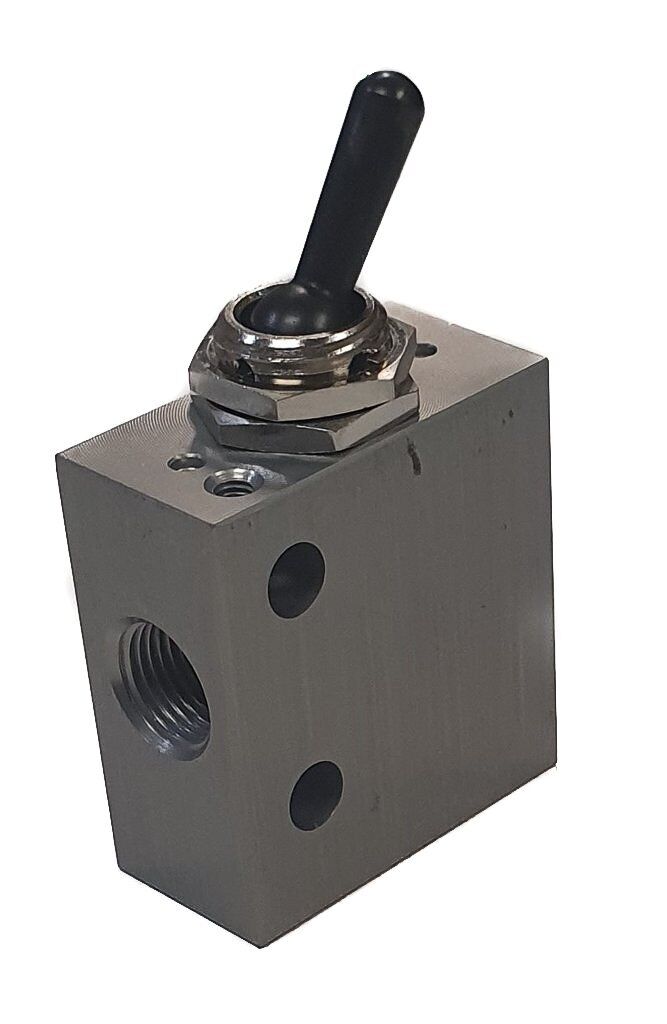

Air Fittings & Toggle Switch

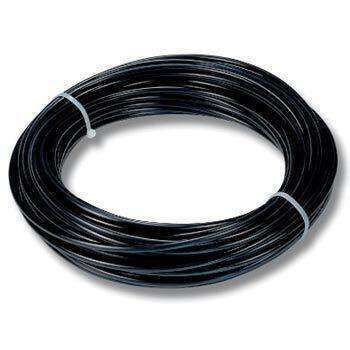

10 metres of 6 mm airline

SVINT-108 SPRAY VALVE FEATURES

Steel internals (shaft with flat washer and spring)
Grooved base (Roll groove coupling/clamping system)
Valve inlet port 3”
Adjustable spray ring to modify spray pattern
Fully serviceable (Complete Spare Parts Held In Stock)

SHIPPING

Dimensions: 0.180mm (w) x 0.240mm (l) x 0.240mm (h)
Weight: 4.5kg
Cubic: 0.010368m3

(SVINT-108K-SP)

SKU	SVINT-108K-SP
Brand	Water Wise Truck Parts
Shipping Weight	4.5000kg
