Electric over Air Control System - 12 Function - WIRELESS

PART #: CS110121SYS-WS-12

Electric over Air Control System - 12 Function - WIRELES

In Stock

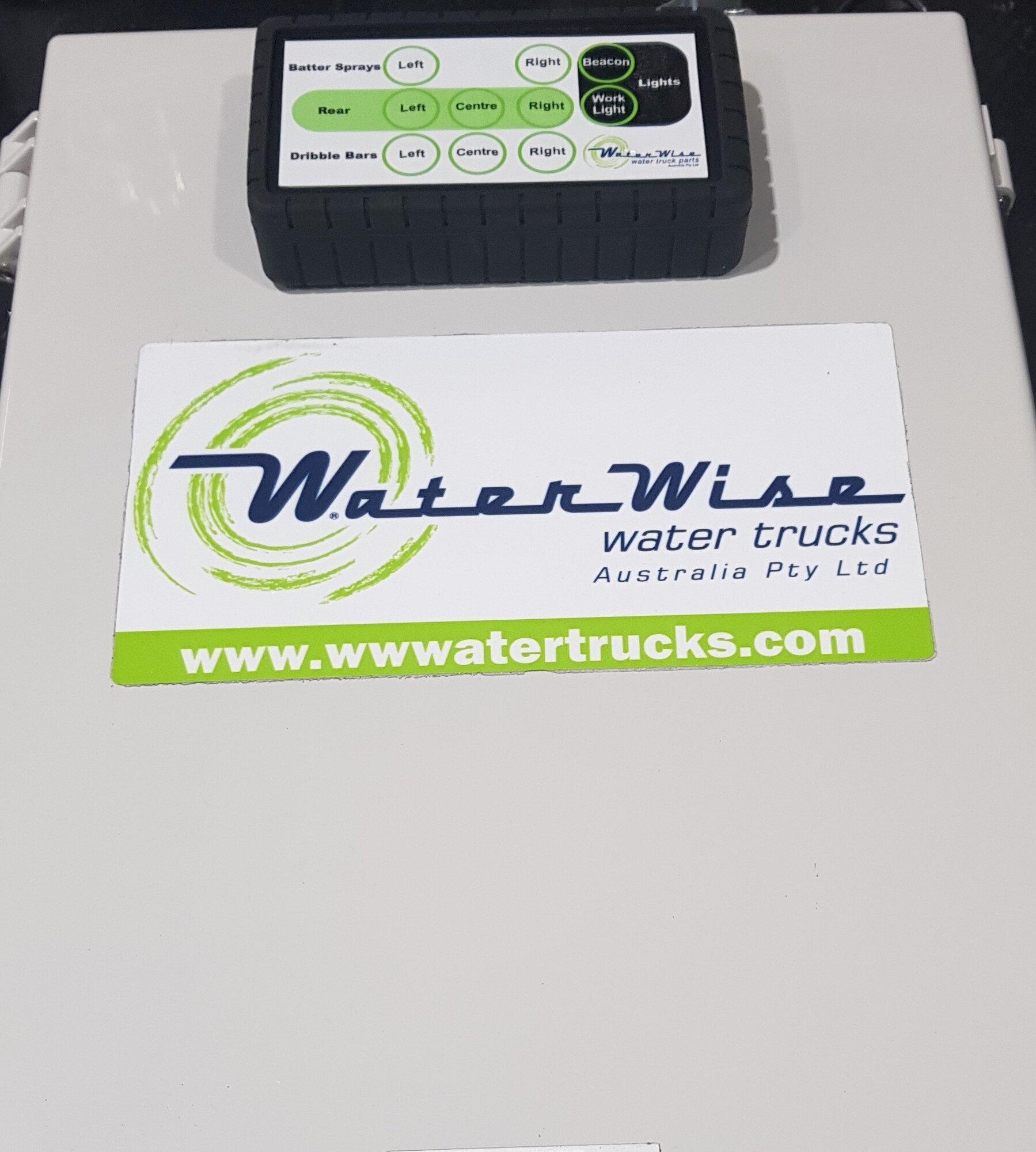

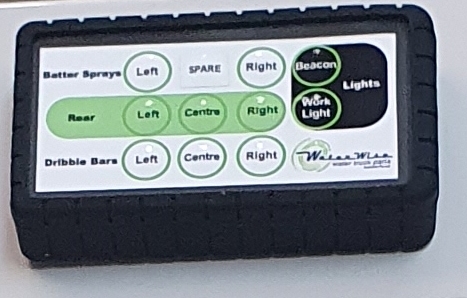

The CS110121SYS-WS-12 is a complete 12V (24V if specified), 12 Function wireless control system. The in-cab handpiece is internally wired with a 9V battery, while the 10 x solenoids are housed in an external weatherproof (IP65 rated) box that can be mounted on the tank. Functions can be removed or added as required.

In-cab control box, electrical control cabinet with 10 x solenoids mounted in weatherproof (IP65 rated) box, valve air fittings, bulkhead fittings, and internal air hose. Electrical wiring (numbered and colour coded). Wiring and air schematic.

Twelve (12) Functions

  • Three (3) x Rear Sprays - Normally Open (N/O) or 'One Way' (One Airline)
  • Three (3) x Dribble Bars  - Normally Closed (N/C) or 'One Way' (One Airline)
  • Two (2) x Side Sprays -  Normally Open (N/O) or 'One Way' (One Airline)
  • One (1) x Spare - Normally Closed (N/C) or 'One Way' (One Airline)
  • One (1) x Spare Solenoid
  • One (1) x Beacon - Function
  • One (1) x Working light - Function

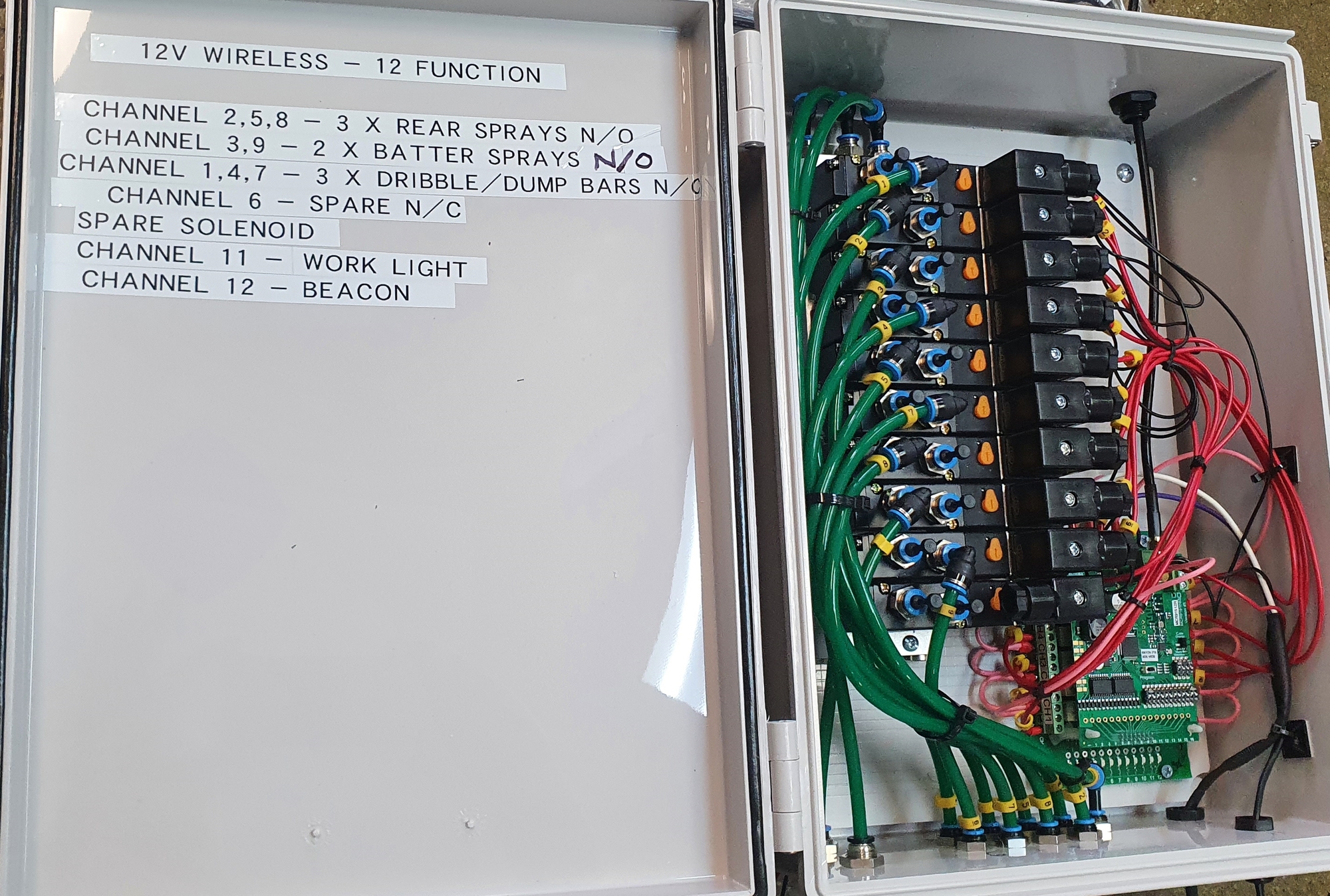

  • Solenoid valves  & receiver mounted in a box.

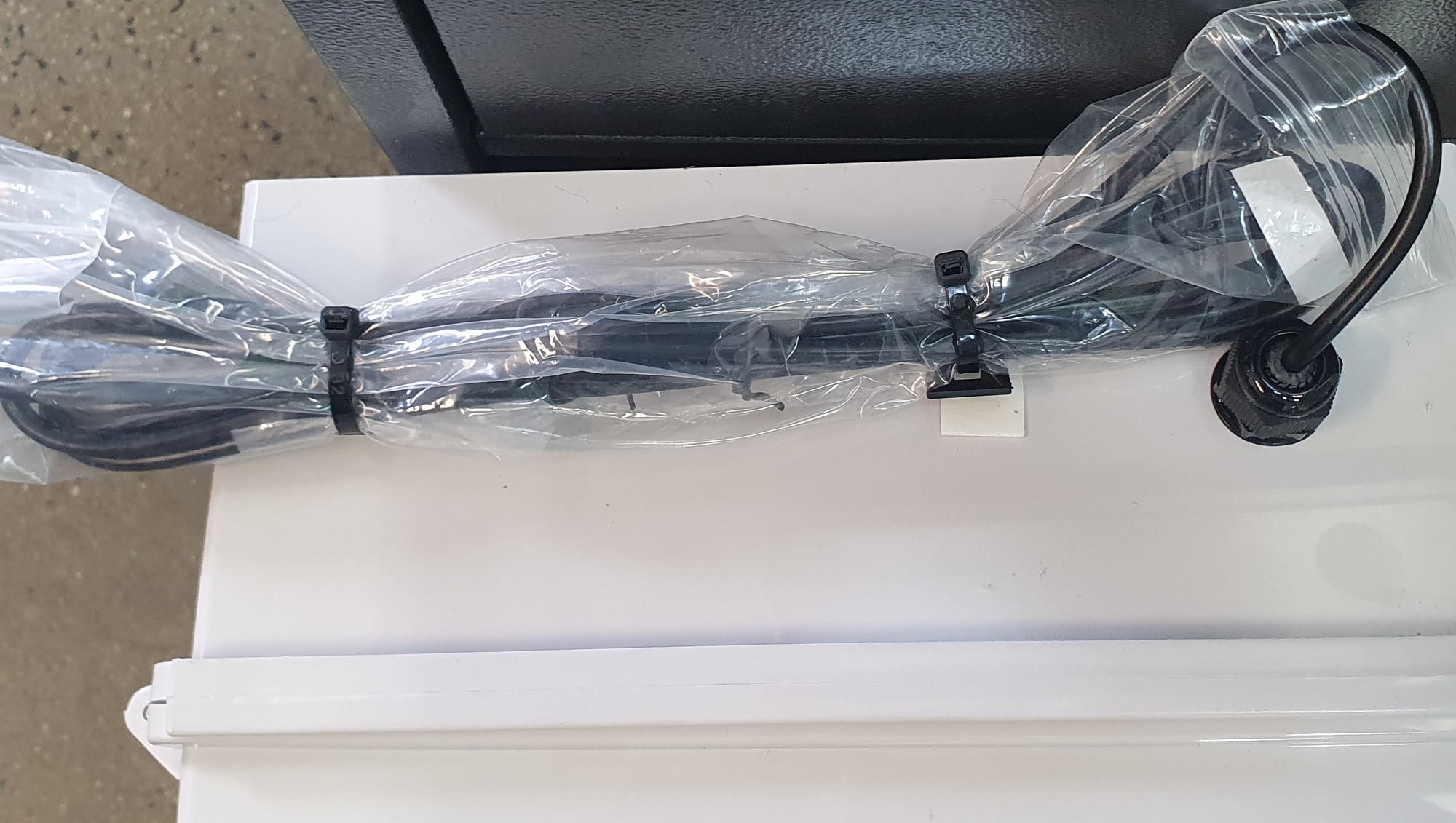

  • External (Relocatable) Aerial

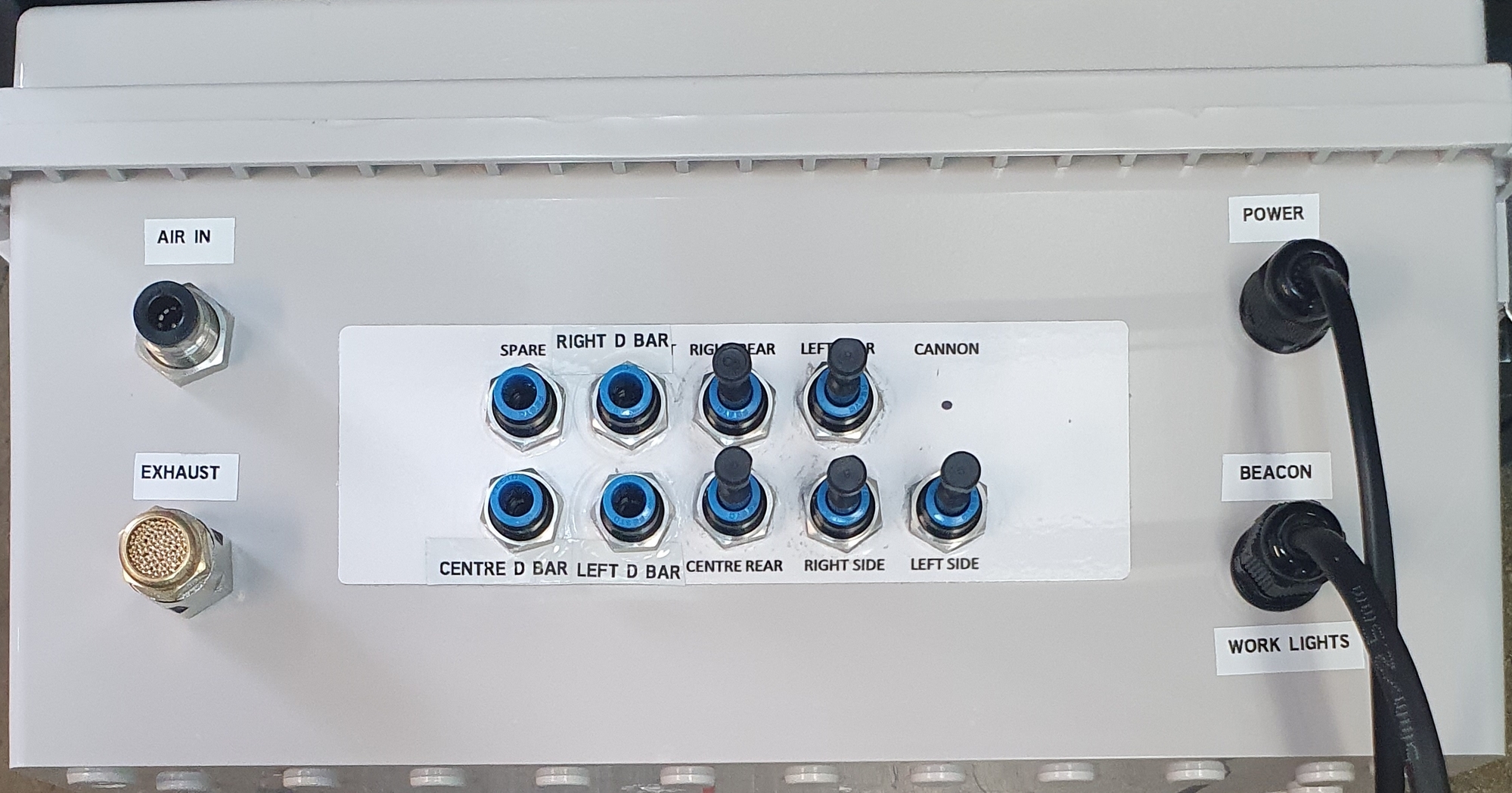

  • 6mm bulkheads to suit 6mm airline
  • CONFIGURATION CAN BE MODIFIED AS REQUIRED - CAN BE MADE TO ORDER (Refer Control System Requirement - Customer Selection Brochure)


Dimensions: 0.300m (w) x 0.500m (l) x 0.120m (h)
Weight: 5kg
Cubic: 0.014400000m3


SKU CS110121SYS-WS-12
Brand Water Wise Truck Parts
Shipping Weight 5.0000kg
