SV500-38CL Hydraulic Actuated Spray Valve 38mm 500LPM Camlock Base
PART #: SV500-HYD-38CL
SV500-38CL Hydraulic Actuated Spray Valve 500LPM
We can ship your order on your own freight Account. Just leave you Freight Company's Name, The name of your account and your account number in the box below and we will do the rest.
Express Post satchels can be deliverd to PO Boxes Australia wide.
Pick up is available form our Footscray warehouse Located at 15 Mephan Street, Footscray, Victoria. items can be collected between 9:00AM to 4:30PM Monday to Thursday and 9.00am to 12.00pm Fridays. Please bring a copy of your invoice with you.

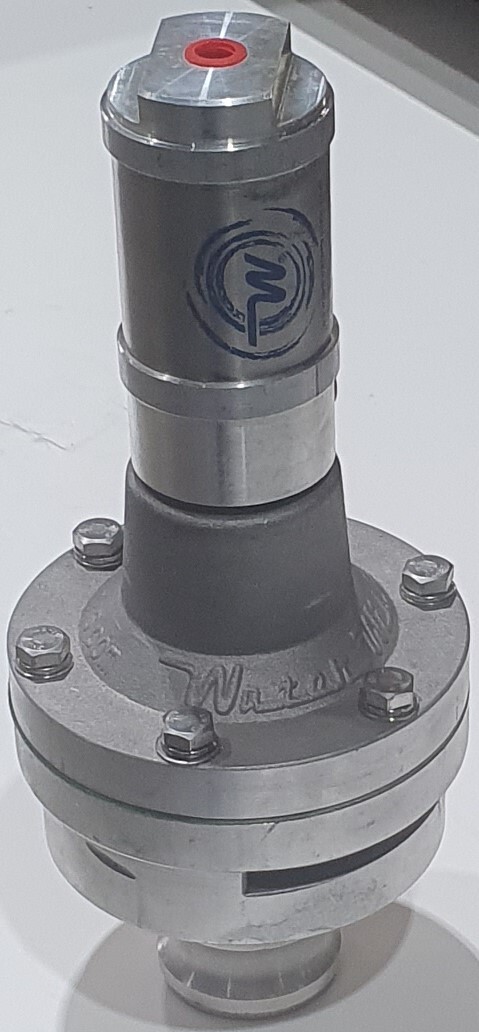

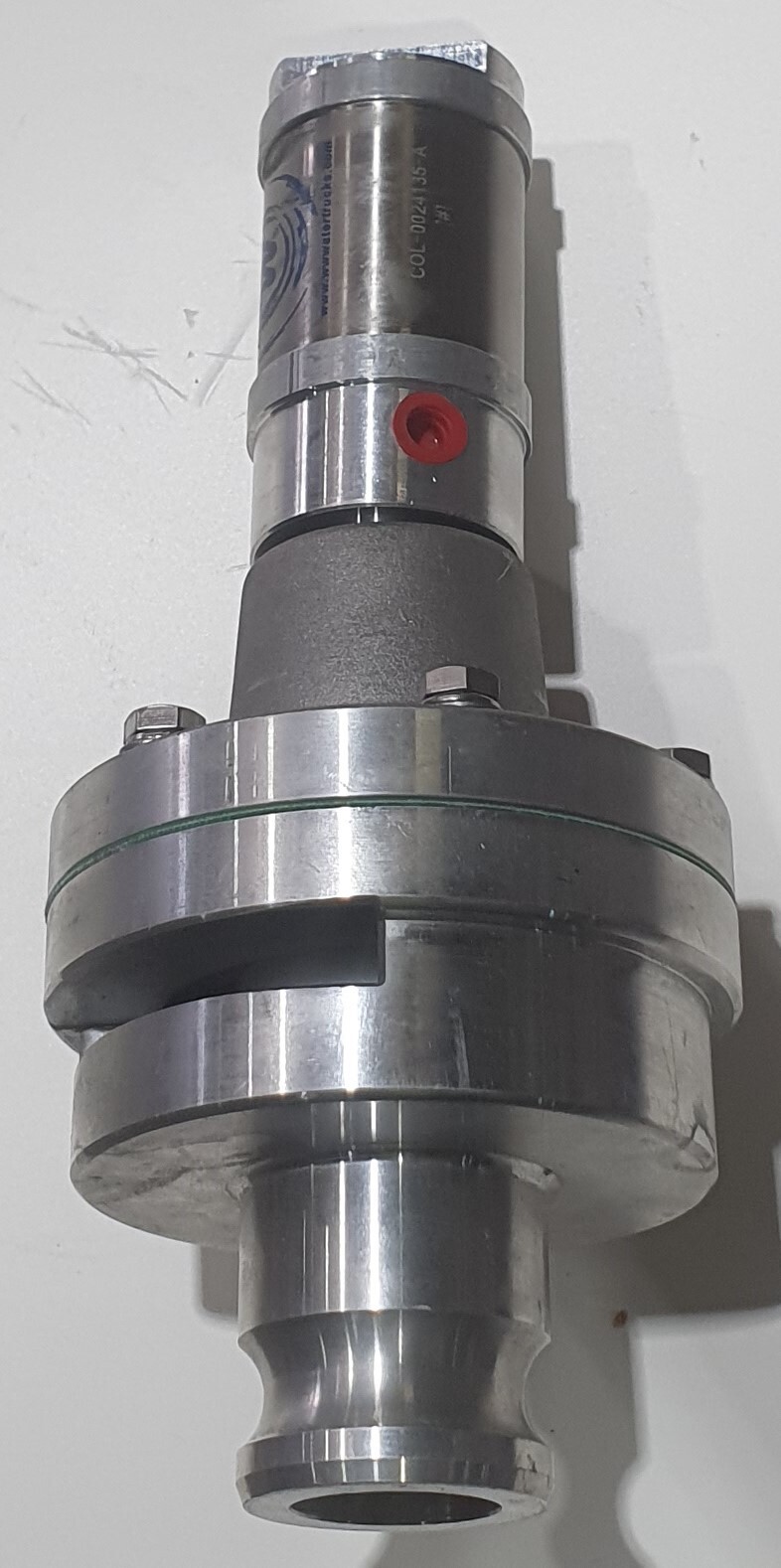

The SV500-38CL is a fully serviceable spray head valve cast from marine grade alloy with an output capacity of up to 500 litres per minute (120 US Gallons per minute) and provides a dense even spray discharge of up to 12 metres (40 feet) and a spray width of up to 11 metres (36 feet).
A fully adjustable cast aluminium spray ring allows infinite flow and spray pattern variation. Hydraulic pressure holds the valve closed while water pressure opens the valve (approximate valve opening pressure 0.55 bar / 8 psi).
An internal spring closes the valve when the water pump is shut down or an absence of hydraulic pressure exists and eliminates the need for additional shut off valves.
Electric/Water actuation option available
SPRAY VALVE INCLUDES
- Hydraulic Actuated Spray Valve
- Valve base with 38mm (1 1/2”) Male Camlock
- Polymer diaphragm sandwich plates
- Stainless steel internal spring and hardware
- 360 degree rotation
- Valve inlet port OD 25 mm (1”)
- Fully serviceable and complete parts support available
- 12 month warranty
Dimensions: 0.150mm (w) x 0.150mm (l) x 0.300mm (h)
