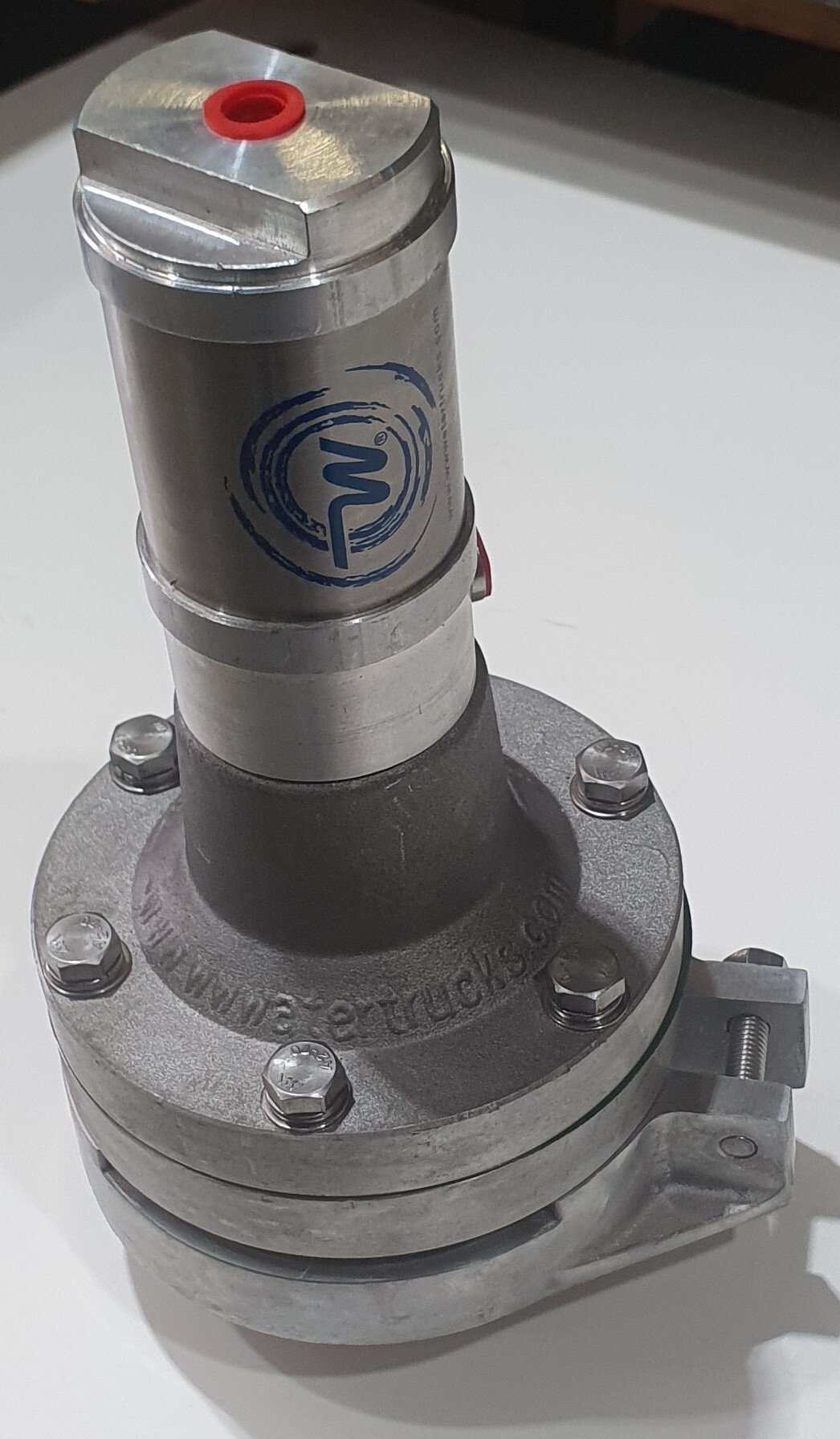

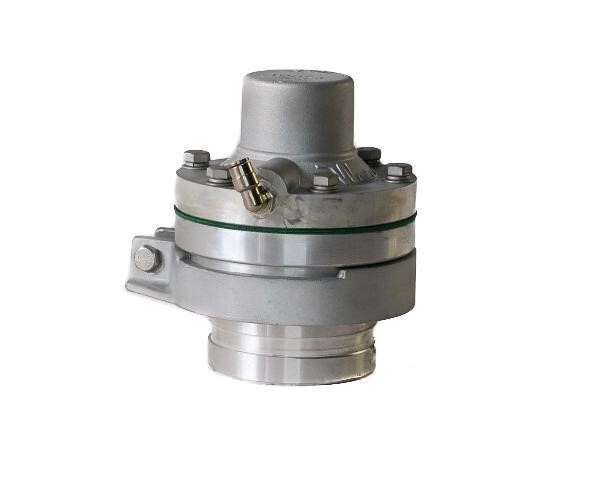

SV500-80RG Hydraulic Actuated Spray Valve 80mm 500LPM Roll Grooved

PART #: SV500-HYD-80RG

SV500-80RG Hydraulic Actuated Spray Valve 80mm 500LPM Ro

Sold Out - Backorder Available

The SV500-080RG is a fully serviceable spray head valve cast from marine grade alloy with an output capacity of up to 500 litres per minute (120 US Gallons per minute) and provides a dense even spray discharge of up to 12 metres (40 feet) and a spray width of up to 11 metres (36 feet).

A fully adjustable cast aluminium spray ring allows infinite flow and spray pattern variation. Hydraulic pressure holds the valve closed while water pressure opens the valve (approximate valve opening pressure 0.55 bar / 8 psi).

An internal spring closes the valve when the water pump is shut down or an absence of hydraulic pressure exists and eliminates the need for additional shut off valves.

Electric/Water actuation option available

  • Hydraulic Actuated Spray Valve
  • Valve base with 80mm (3”) Groove
  • Polymer diaphragm sandwich plates
  • Stainless steel internal spring and hardware
  • 360 degree rotation
  • Valve inlet port OD 25 mm (1”)
  • Fully serviceable and complete parts support available
  • 12 month warranty

Dimensions: 0.150mm (w) x 0.150mm (l) x 0.300mm (h)
Weight: 3.5kg
Cubic: 0.006750000m3


Brand Water Wise Truck Parts
Shipping Weight 3.5000kg
