SV1000 Electric Actuated Spray Valve 80mm 1000LPM-Grooved - 12V
PART #: SV1000-80RG-EA-12V
We can ship your order on your own freight Account. Just leave you Freight Company's Name, The name of your account and your account number in the box below and we will do the rest.
Pick up is available form our Footscray warehouse Located at 15 Mephan Street, Footscray, Victoria. items can be collected between 9:00AM to 4:30PM Monday to Thursday and 9.00am to 12.00pm Fridays. Please bring a copy of your invoice with you.

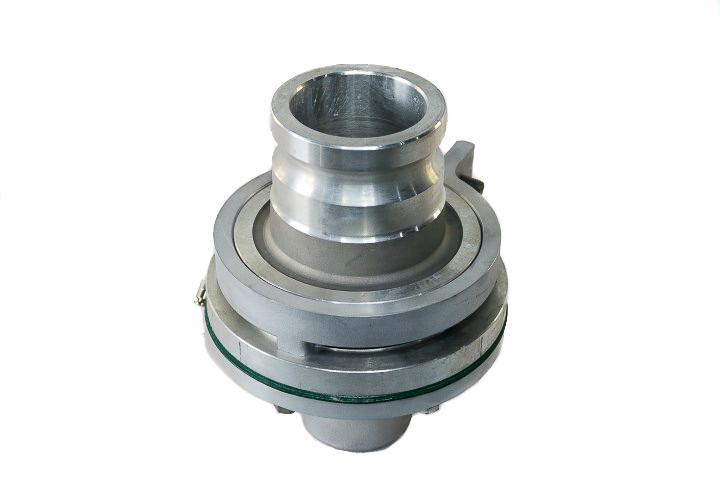

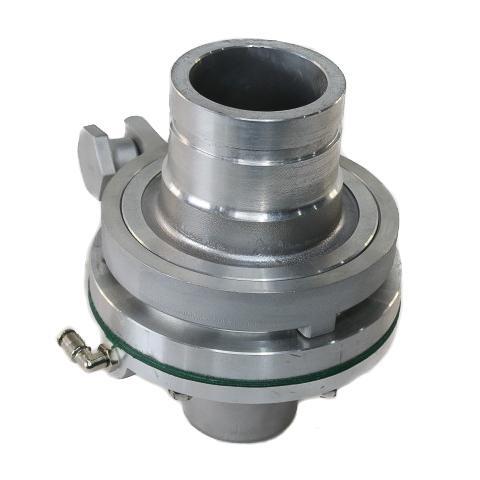

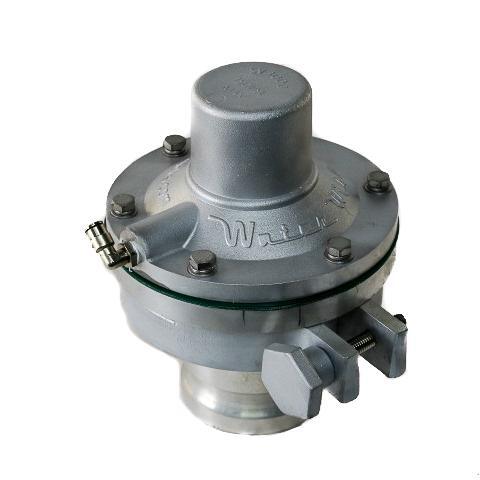

The SV1000 Electric Actuated Spray Valve is a fully serviceable spray head valve cast from Marine grade alloy with an output capacity of up to 1000 litres per minute and provides a dense even spray discharge of up to 6.7 metres (22 feet) and a spray width of up to 11 metres (36 feet). A fully adjustable cast aluminium spray ring allows infinite flow and spray pattern variation. Water pressure holds the valve closed while water pressure opens the valve (valve opening pressure 0.55 bar / 8 psi). An internal spring closes the valve when the water pump is shut down or an absence of water pressure exists and eliminates the need for additional shut off valves.
- Valve base with 75mm (3") male camlock or 75mm (3") groove.
- Polymer diaphragm sandwich plates with a rubber seal.
- Stainless steel internal spring.
- Stainless steel hardware
- Adjustable Spray Band
- Valve inlet port OD 75 mm (3”).
- Fully serviceable and complete parts support held in stock
Dimensions: 0.210m (w) x 0.220m (l) x 0.260m (h)
|Brand||Water Wise Truck Parts|
