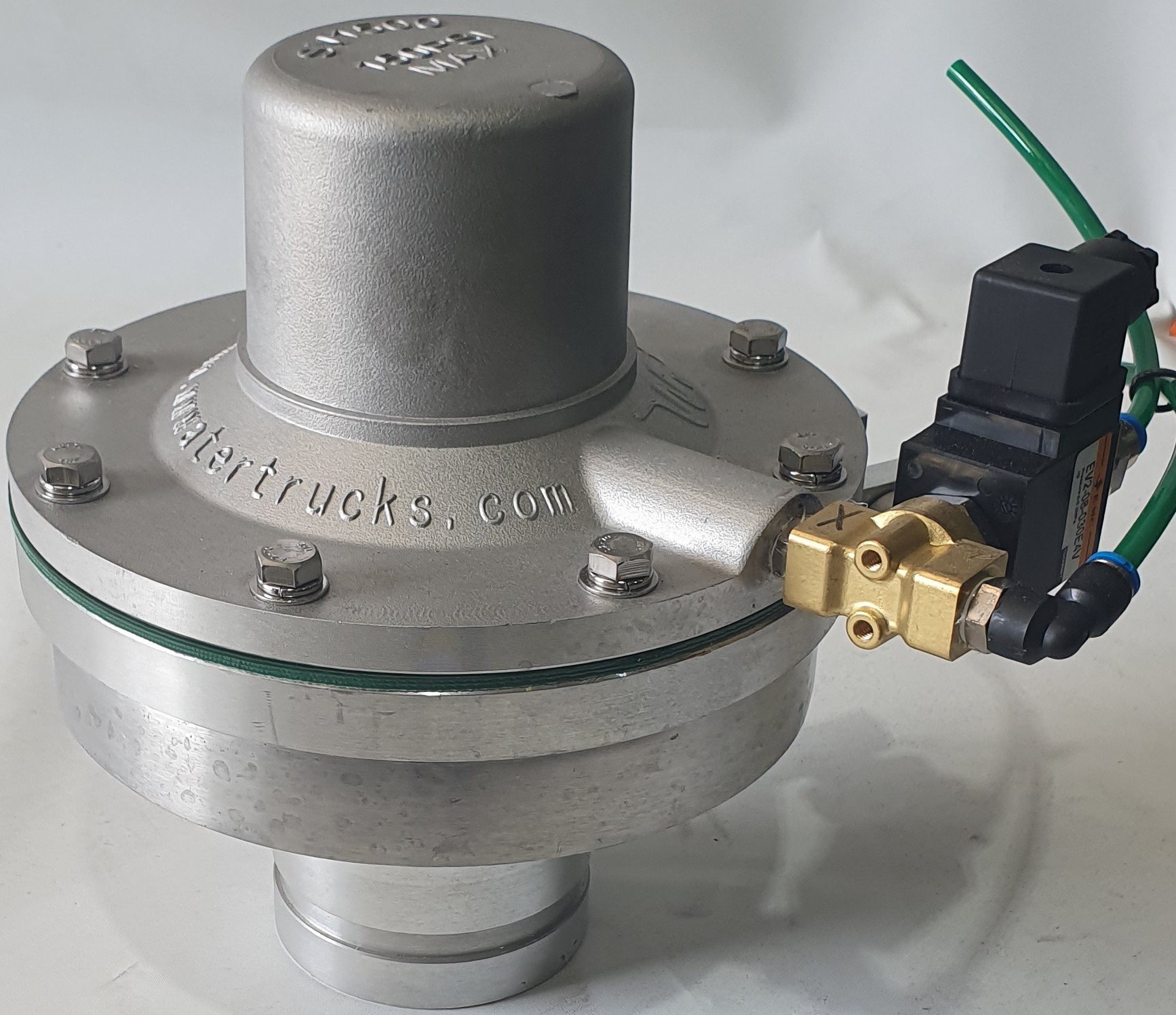

SV1500 Electric Actuated Spray Valve 80mm 1500LPM-Weld on Base - 12V
PART #: SV1500-80WB-EA-12V
We can ship your order on your own freight Account. Just leave you Freight Company's Name, The name of your account and your account number in the box below and we will do the rest.
Pick up is available form our Footscray warehouse Located at 15 Mephan Street, Footscray, Victoria. items can be collected between 9:00AM to 4:30PM Monday to Thursday and 9.00am to 12.00pm Fridays. Please bring a copy of your invoice with you.
The SV1500 Electric Actuated Spray Valve is a fully serviceable spray head valve cast from Marine grade alloy with an output capacity of up to 1500 litres per minute and provides a dense even spray discharge of up to 6.7 metres (22 feet) and a spray width of up to 11 metres (36 feet).
A fully adjustable cast aluminium spray ring allows infinite flow and spray pattern variation. Water pressure holds the valve closed while water pressure opens the valve (valve opening pressure 0.55 bar / 8 psi).
An internal spring closes the valve when the water pump is shut down or an absence of water pressure exists and eliminates the need for additional shut off valves.
- Valve base with ‘O’ ring
- Includes mounting ring (Optional threaded base or grooved base)
- Polymer diaphragm sandwich plates with a rubber seal
- Stainless steel internal spring
- Stainless steel mounting bolts, eccentric and spring washers
- Adjustable Spray Band
- Valve inlet port OD 76 mm (3”)
- Fully serviceable and complete parts support held in stock
- 12 month warranty
- BSP threaded, Grooved or Weld on Base - Please select when adding to cart.
SPRAY VALVE INCLUDES
- Diaphragm, Plastic Inserts (Bottom Insert with Gasket), Centre Bolt & Spring
- Hood bolts - Stainless Steel
- Mounting Flange with eccentric washers & bolts or grooved base (hardware stainless steel)
- Adjustable Spray Band with adjusting knob
- Air fitting - 6mm airline
- BSP Threaded & Grooved Base: 0.23m (w) x 0.25m (l) x 0.27m (h)
Dimensions: 0.26m (w) x 0.26m (l) x 0.22m (h)
Weight: 7.5 kg
|Brand||Water Wise Truck Parts|
