SV500-38-CL Electric Actuated Spray Valve 500LPM Camlock Base [Voltage: 12V]

PART #: SV500-38CL-EA-12V

In Stock

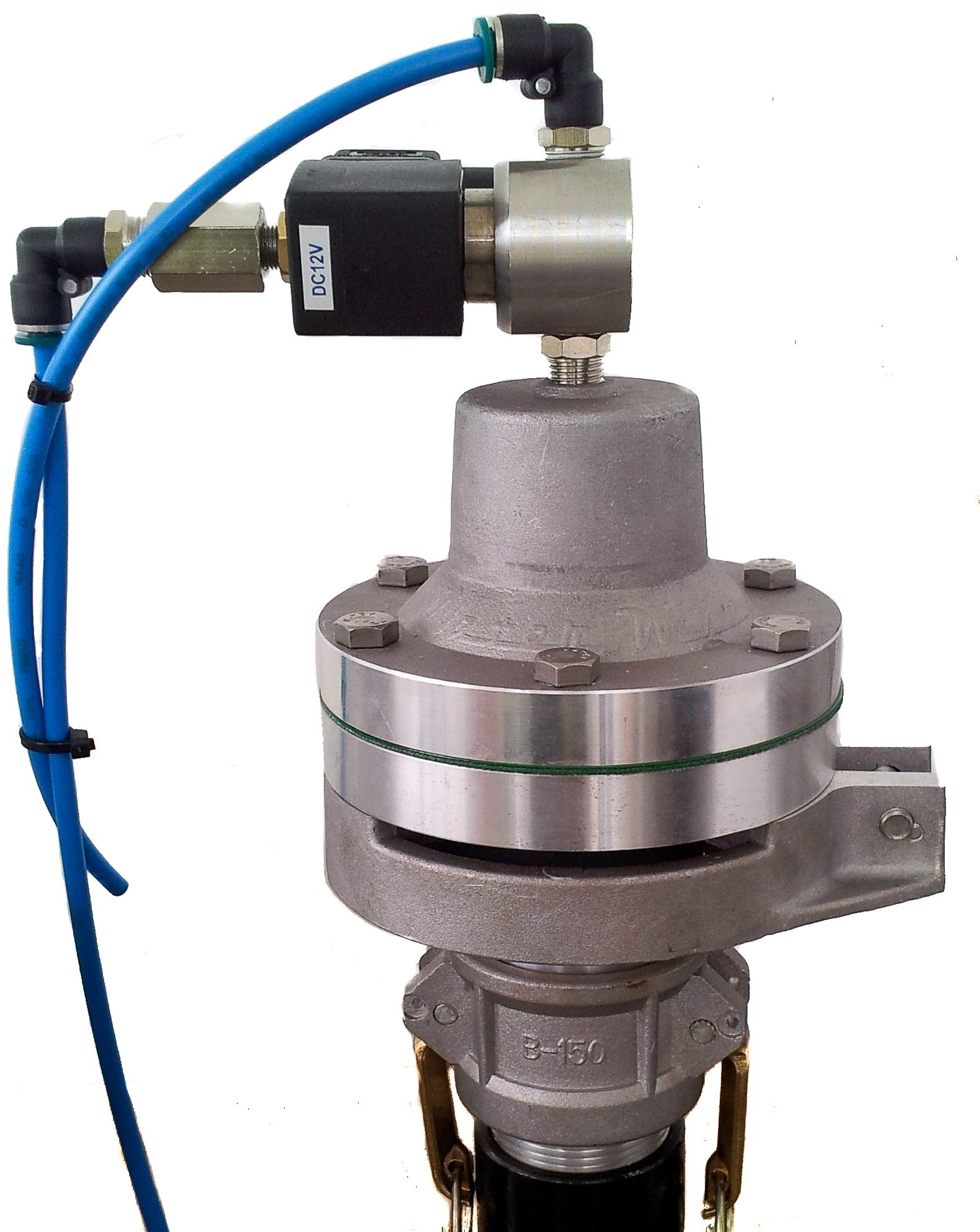

The SV500-38CL-EA is a fully serviceable spray head valve cast from Marine grade alloy with an output capacity of up to 500 Litres per Minute (120 US Gallons per Minute) and provides a dense even spray discharge of up to 12 metres (40 feet) and a spray width of up to 11 metres (36 feet).

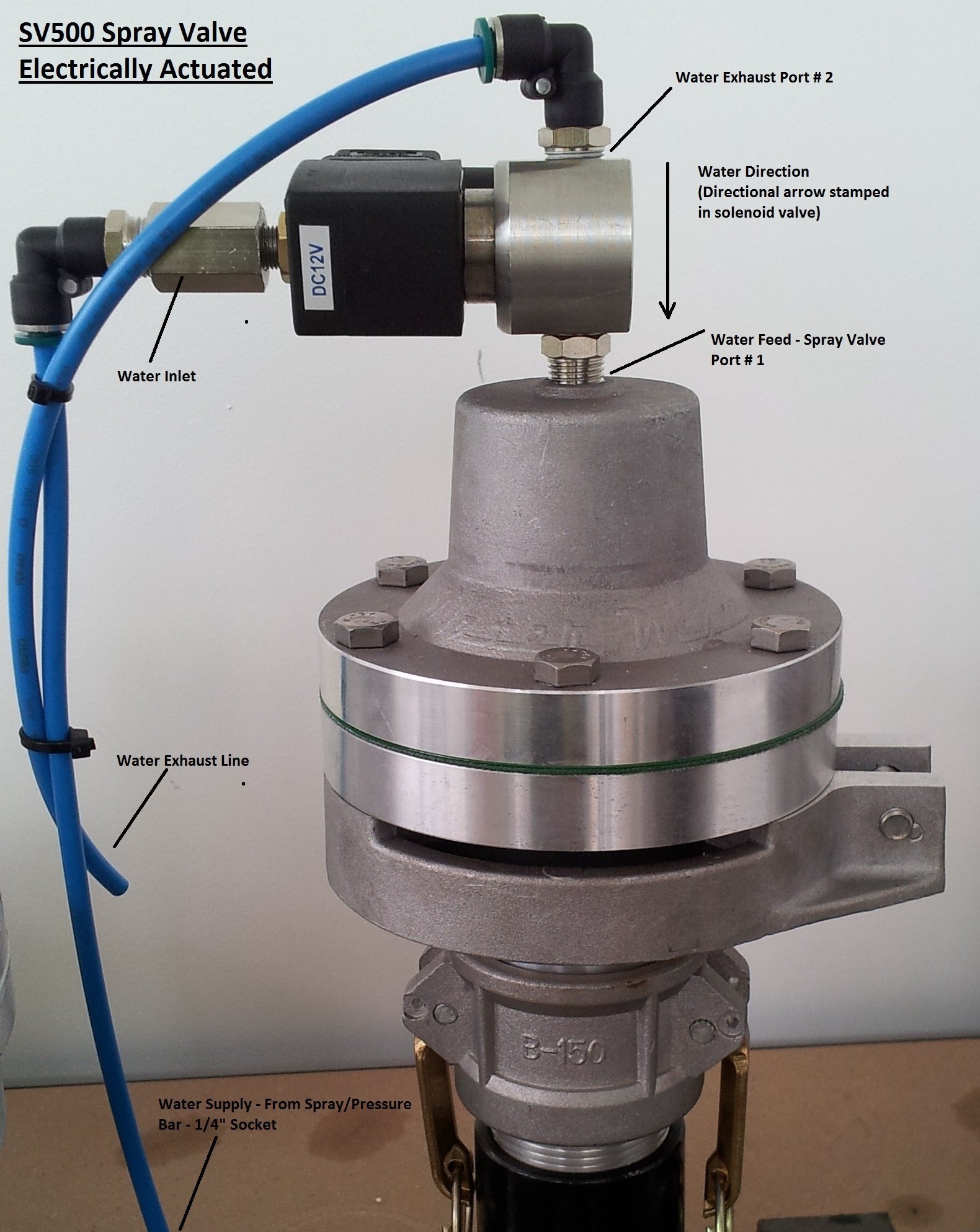

A fully adjustable cast aluminium spray ring allows infinite flow and spray pattern variation. Water pressure holds the valve closed but when the solenoid coil is energised water flow is diverted opening the spray valve (approximate valve opening pressure 0.55 bar / 8 psi).

An internal spring closes the valve when the water pump is shut down or an absence of water pressure exists and eliminates the need for additional shut off valves.

  • Electric/Water electrical actuated 24V or 12V - Please select when adding to cart.

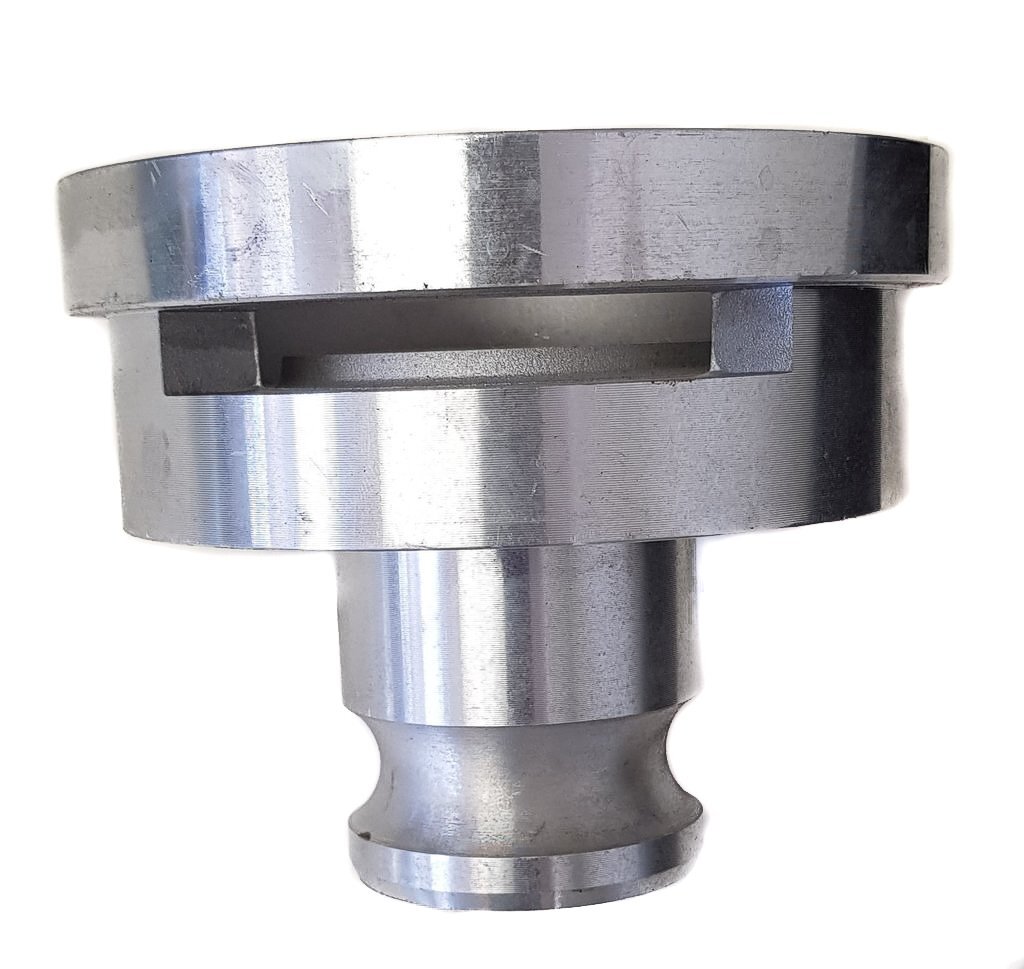

  • Valve base with 38mm (1 1/2”) Camlock fitting
  • Polymer diaphragm sandwich plates
  • Stainless steel internal spring and hardware
  • Adjustable Spray Band
  • 360 degree rotation
  • Valve inlet port OD 25 mm (1”)
  • Fully serviceable and complete parts support available
  • 12 month warranty

Dimensions: 0.160m (w) x 0.150m (l) x 0.190m (h)
Weight: 2.6kg
Cubic: 0.004800000m3


Brand Water Wise Truck Parts
Shipping Weight 2.3000kg
