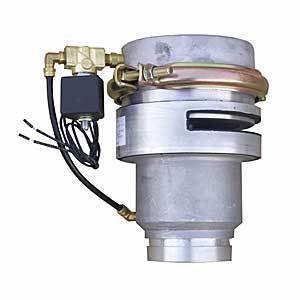

Bertolini Type 80mm (3") - Electric Actuated-12V

PART #: SVINT-ELEC-108-12VDC

$493.90
In Stock
Voltage

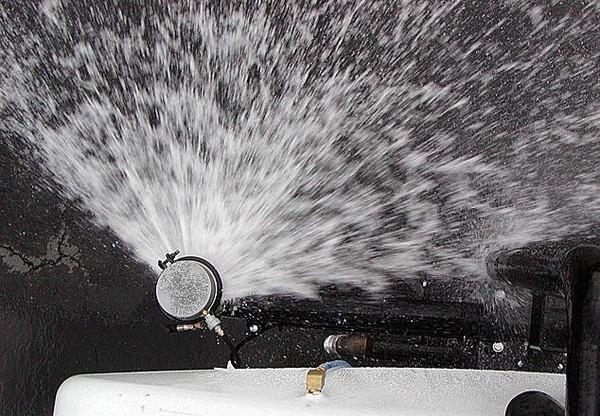

The SVINT3-ELEC is cast from Marine grade alloy with an output capacity of up to 1000 litres per minute (265 US Gallons per minute) and provides a dense even spray discharge of up to 6.7 metres (22 feet) and a spray width of up to 11 metres (36 feet). An electric actuated solenoid valve (12 or 24VDC) opens the valve while an internal spring closes the valve and eliminates the need for additional shut off valves.

Contact us for bulk pricing.

VOLTAGE

12 or 24 VDC - Please select when adding to shopping cart.

FEATURES
  • Steel internals (shaft with flat washer and spring)
  • Grooved base (Roll groove/victaulic coupling/clamping system)
  • Valve inlet port 3”
  • Adjustable spray ring to modify spray pattern & spray volume
  • Fully Serviceable (Complete Spare Parts Held In Stock)
  • Maximum Solenoid Working Pressure - 3 Bar (58 psi)
KITS
  • 6mm x 1/8 Air Fitting Stud Male Push Fit (PC0601)
  • 6mm x 1/8 Plastic Elbow Push Fit (PL0601)
  • Nipple 1/4 x 1/4 (PSM0202)
  • Extension Nipple 1/4 to 1/4 (PSMF0202)
  • Solenoid Valve 3/2 (Brass) 12V (svdasol12v)
  • Bertolini Type 80mm (3) - Air Actuated (svint-108)
SHIPPING

Dimensions: 0.180m (w) x 0.240m (l) x 0.240m (h)
Weight: 5.2kg
Cubic: 0.01037m3

(bertolini-type-80mm-3-ele)

SKU bertolini-type-80mm-3-ele
Brand Water Wise Truck Parts
Shipping Weight 5.2000kg
