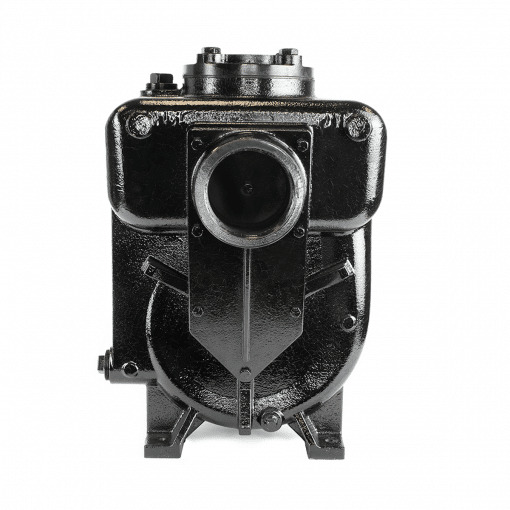

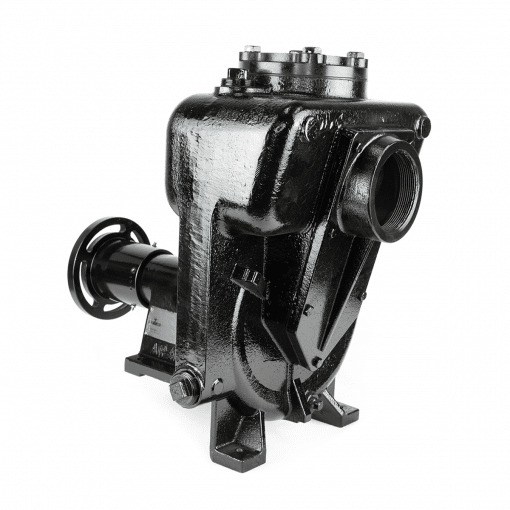

Water Pump 4" x 4" SELF PRIMING - Cast Iron with Hydraulic Motor

PART #: HYD-B4Z-102ATPB69876

Water Pump 4 x 4 Self Priming complete with hyd motor

$6,517.50
In Stock

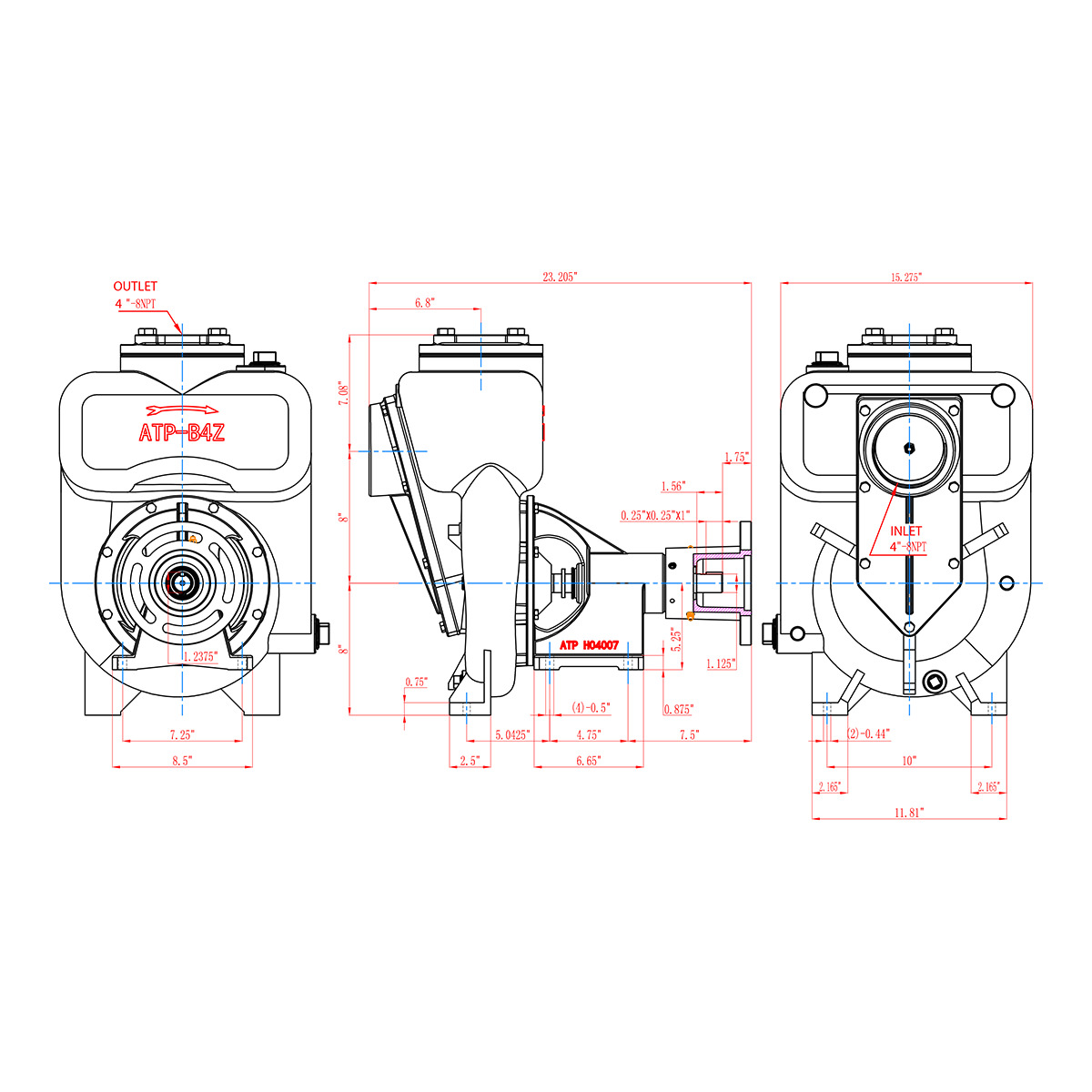

The ATP B4Z-S is a Self Priming Clockwise Rotation Mechanical Seal pump.  It is a 4” (100mm) x 4” (100mm) Centrifugal Frame Mounted Water Pump used when suction fill or self loading is required.

This pump has Female NPT threads (Rolled Groove Nipples can also be provided) on both the suction and discharge side for easy removal and repair, and at 2800 RPM performs at a rate up to 1200 LPM (320 GPM) at 77 PSI.

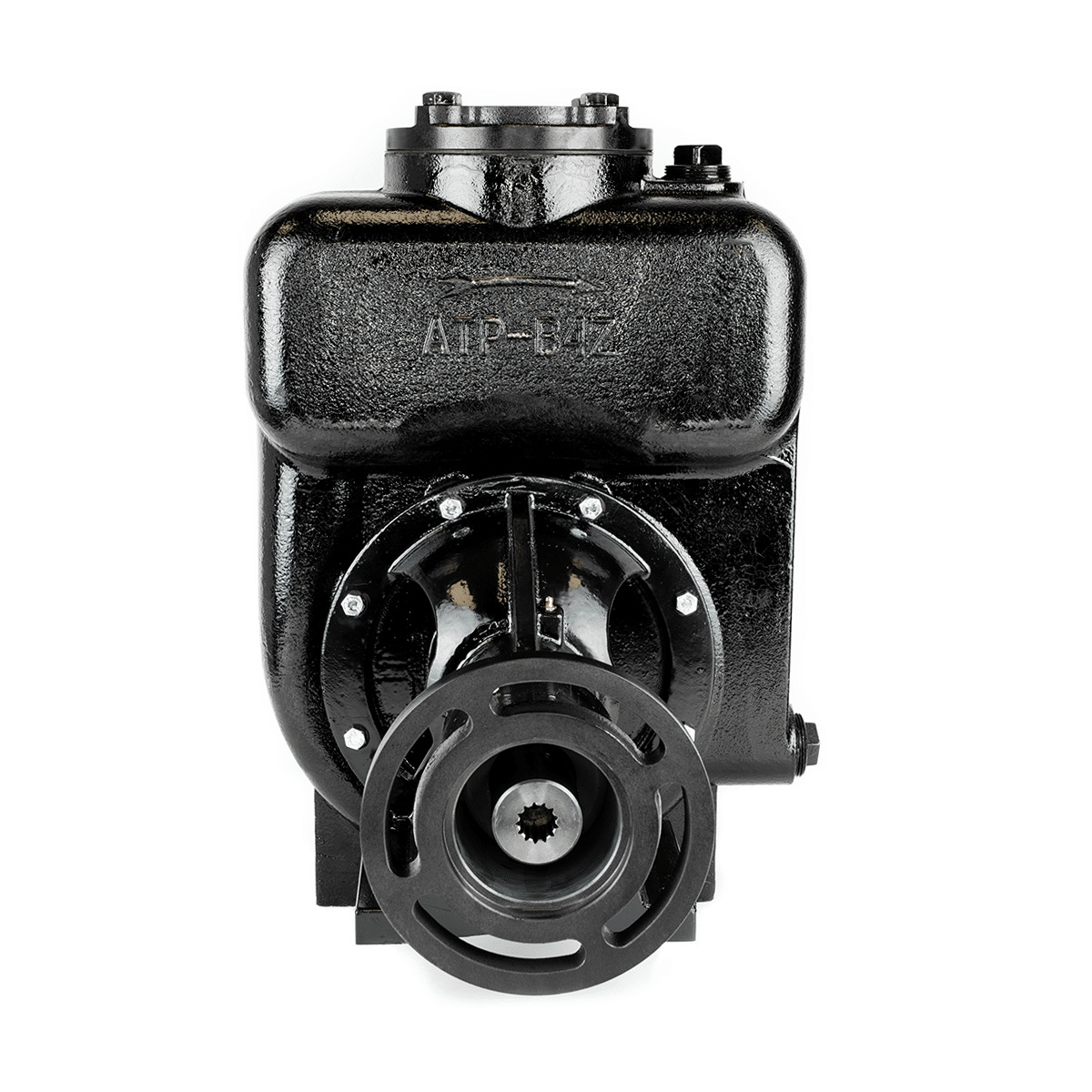

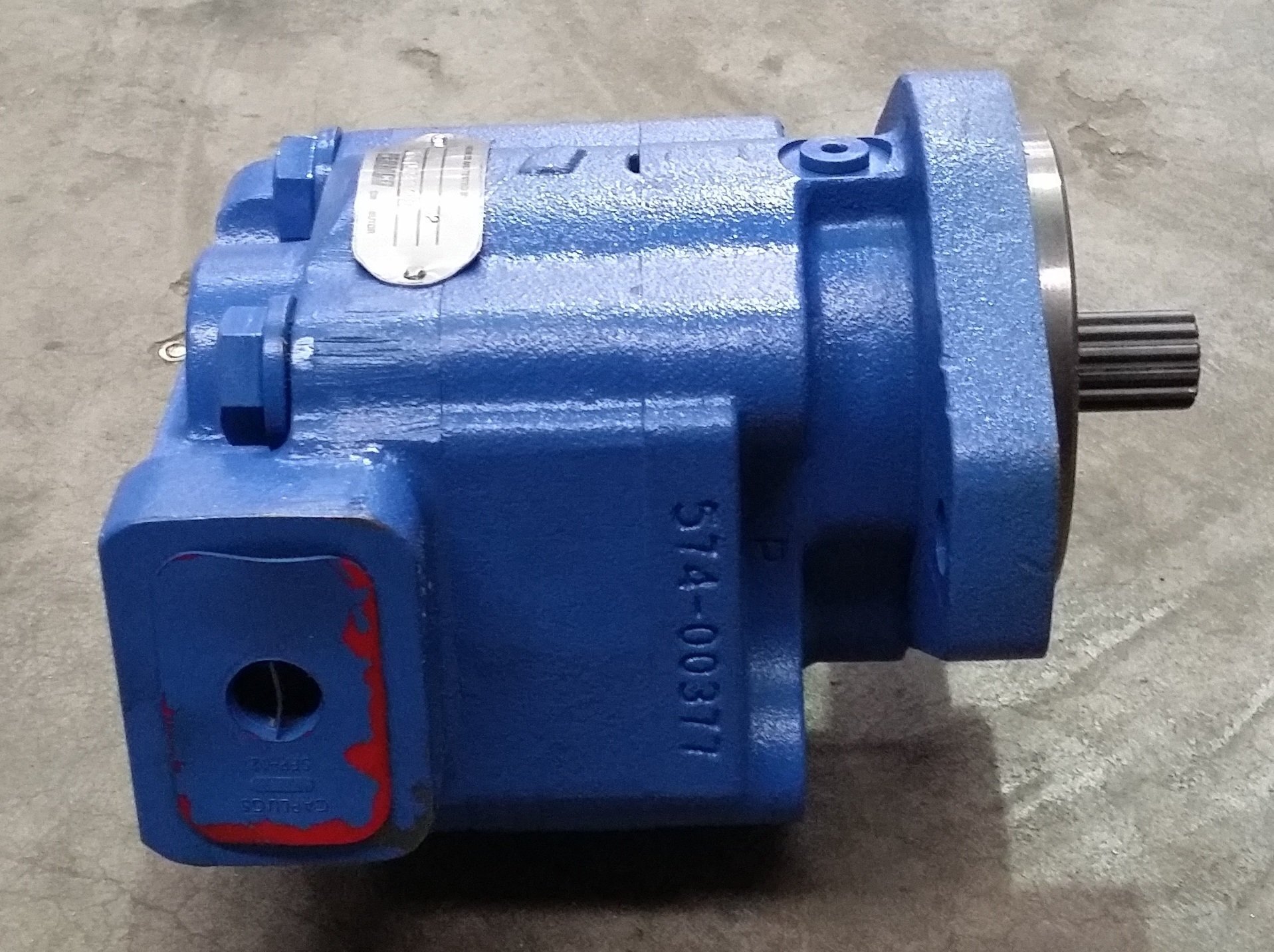

THIS PUMP INCLUDES HYDRAULIC DRIVE ADAPTER AND A PERMCO 33cc/rev HYDRAULIC DRIVE MOTOR.

FEATURES
  • Hydraulic Motor & Hydraulic Motor Adapter
  • Replaces - Berkeley B4ZRKS
  • Mechanical Seal
SHIPPING

Dimensions: 0.500mm (w) x 0.600mm (l) x 0.600mm (h)
Weight: 74kg
Cubic: 0.150000000m3

(HYD-B4Z-102ATPB69876)

SKU HYD-B4Z-102ATPB69876
Brand Water Wise Truck Parts
Shipping Weight 74.0000kg
