Water Wise B3 Bare Shaft Hydraulic Water Pump Kit 100mm (4") x 80mm (3") - CW or CCW Rotation-Clockwise (CW)
PART #: P100-080-B3-CW-HYD
We can ship your order on your own freight Account. Just leave you Freight Company's Name, The name of your account and your account number in the box below and we will do the rest.
Pick up is available form our Footscray warehouse Located at 15 Mephan Street, Footscray, Victoria. items can be collected between 9:00AM to 4:30PM Monday to Thursday and 9.00am to 12.00pm Fridays. Please bring a copy of your invoice with you.

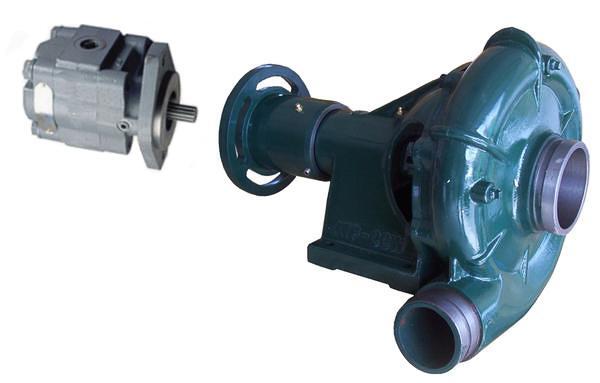

The B3 water pump is cast iron with a 100mm (4”) suction and a 80mm (3”) discharge and an output capacity of up to 2800 litres per minute direct coupled to a hydraulic gear motor (1" or 1 1/2” Gear Width 2000 RPM @ 2000 psi, 80 - 106 LPM)
Clockwise or Counterclockwise Rotation - Please select when adding to cart

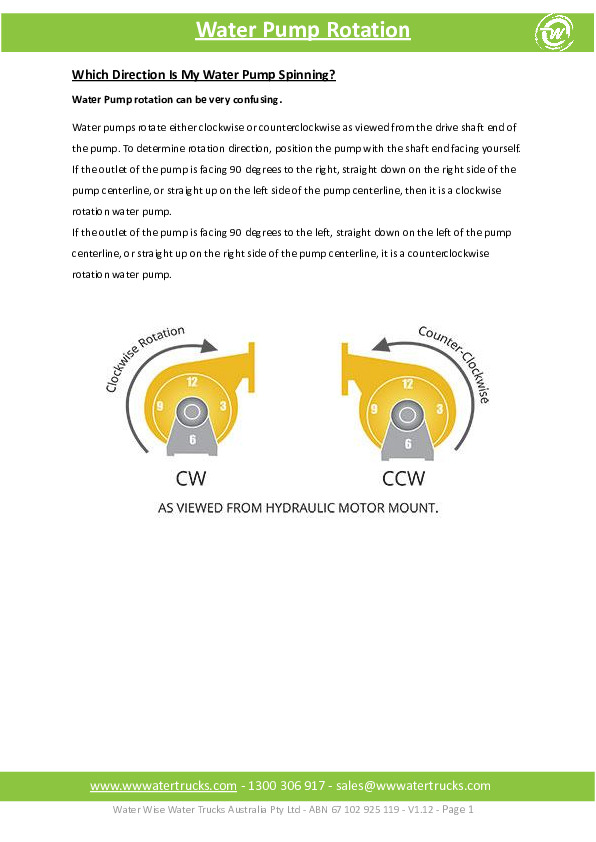

Which direction should my pump be spinning?
Water pumps rotate either clockwise or counterclockwise as viewed from the drive shaft end of the pump. To determine rotation direction position the pump with the shaft end facing yourself. If the outlet of the pump is facing 90 degrees to the right, straight down on the right side of the pump centerline, or straight up on the left side of the pump centerline, then it is a clockwise rotation pump.
If the outlet of the pump is facing 90 degrees to the left, straight down on the left of the pump centerline, or straight up on the right side of the pump centerline, it is a counterclockwise pump
- Steel keyed Shaft
- Grooved Suction and Discharge

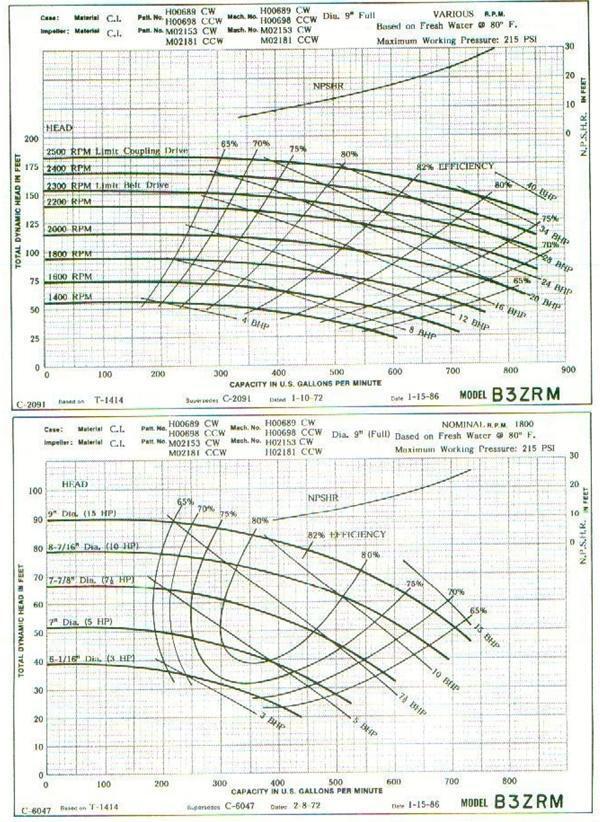

- Maximum Dynamic Head 27 metres
- Impeller Diameter 230 mm (9")
- Close Coupled Hydraulic Motor (Screw on hydraulic adapter converts bare shaft water pump to hydraulic drive water pump)
- Gland packed seal
- Fully serviceable with parts support
- 33 cc Hydraulic Drive Gear Motor - Permco (HYD-PGM330)
- Bare Shaft Water Pump, 2800L/min, Clockwise Rotation (P100-080-B3-CW)
- Hydraulic Drive Motor Coupling/ Mount NEW Style (P100-080-B3-HDA)
FITTINGS KITS AVAILABLE
- 80mm (3) Roll Grooved Nipple (080NRGST)
- 80mm (3) Roll Grooved Coupling - Galvanised (080RGCGS)
- 100mm (4) Roll Grooved Nipple (100NRGST)
- 100mm (4) Roll Grooved Coupling - Galvanised (100RGCGS)

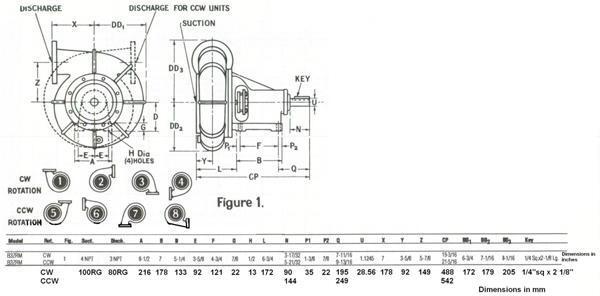

Cast iron with 4" suction and 3" discharge - Replaces Berkeley B3ZRM
Dimensions: 0.500mm (w) x 0.500mm (l) x 0.600mm (h)
|Brand||Water Wise Truck Parts|
