Six (6) Function Pneumatic Switch In Cab Control Box (Plastic)
PART #: CS110121PLPN-WT-P6
6 x Toggle Switch Pneumatic Box - PNEUMADYNE SWITCHES
$963.70
In Stock
Calculate Shipping
Ship Using Your Freight Account - FREE
We can ship your order on your own freight Account. Just leave you Freight Company's Name, The name of your account and your account number in the box below and we will do the rest.
We can ship your order on your own freight Account. Just leave you Freight Company's Name, The name of your account and your account number in the box below and we will do the rest.
Express Post - $40.80 (ETA: 1 days)
Express Post satchels can be deliverd to PO Boxes Australia wide.
Express Post satchels can be deliverd to PO Boxes Australia wide.
Pick Up - FREE (ETA: 1 days)
Pick up is available form our Footscray warehouse Located at 15 Mephan Street, Footscray, Victoria. items can be collected between 9:00AM to 4:30PM Monday to Thursday and 9.00am to 12.00pm Fridays. Please bring a copy of your invoice with you.
Pick up is available form our Footscray warehouse Located at 15 Mephan Street, Footscray, Victoria. items can be collected between 9:00AM to 4:30PM Monday to Thursday and 9.00am to 12.00pm Fridays. Please bring a copy of your invoice with you.

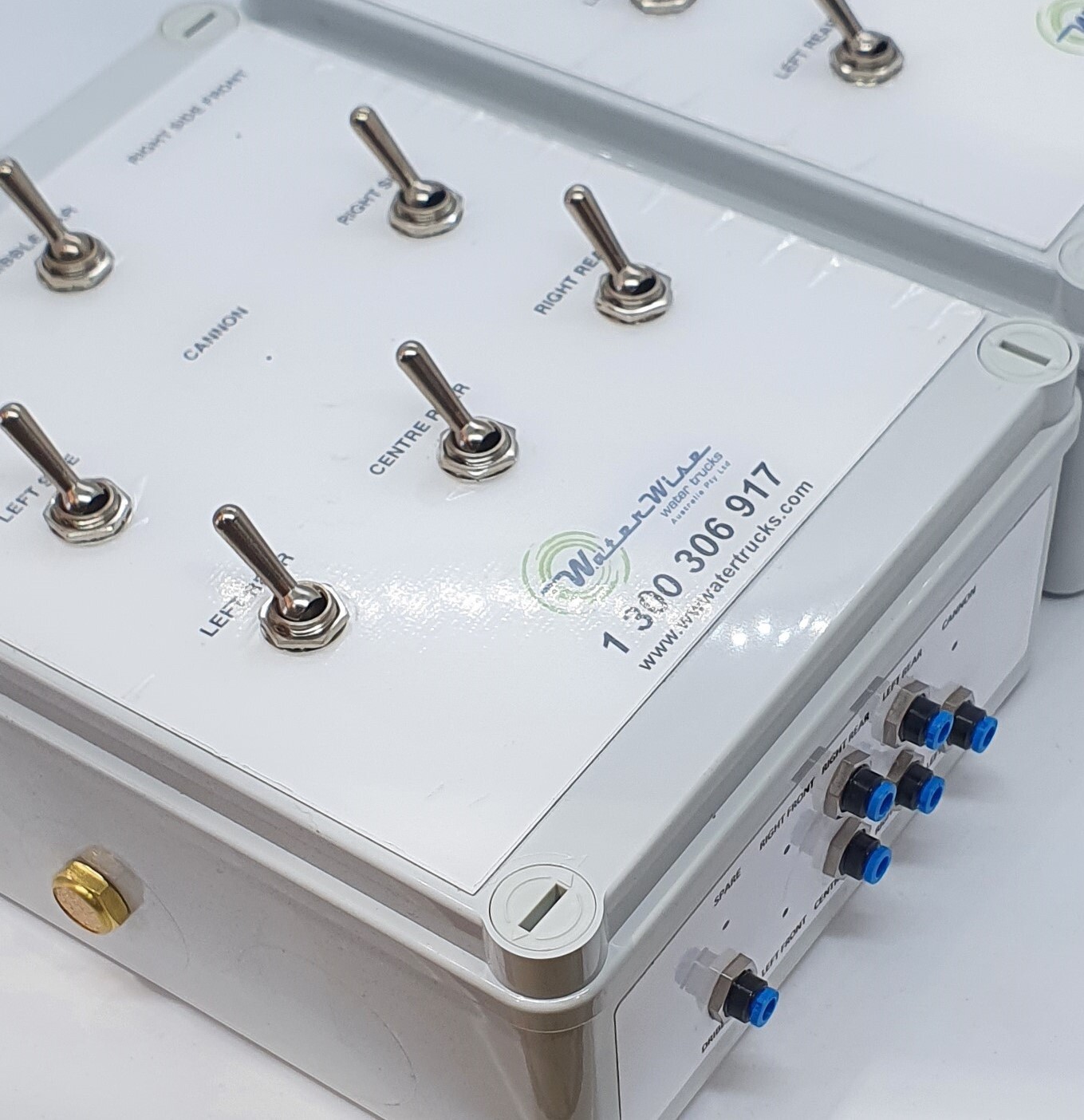

The CS110121PLPN-WT-P6 control box is a plastic box 170mm wide, 220mm long and 80mm deep, internally plumbed, externally labelled with six (6) pneumatic toggle switches.
Functions can be added as required.
FEATURES
- 6 x Pneumadyne Pneumatic Switches, Face Plate, Outlet label, Mounted & Plumbed in an enclosure
- 3 x Rear Spray Valves - Normally Open (N/O)
- 2 x Side Spray Valves - Normally Open (N/O)
- 1 x Dribble Bar - Normally Closed (N/C)
- Internally plumbed with 4mm high-quality flexible tubing

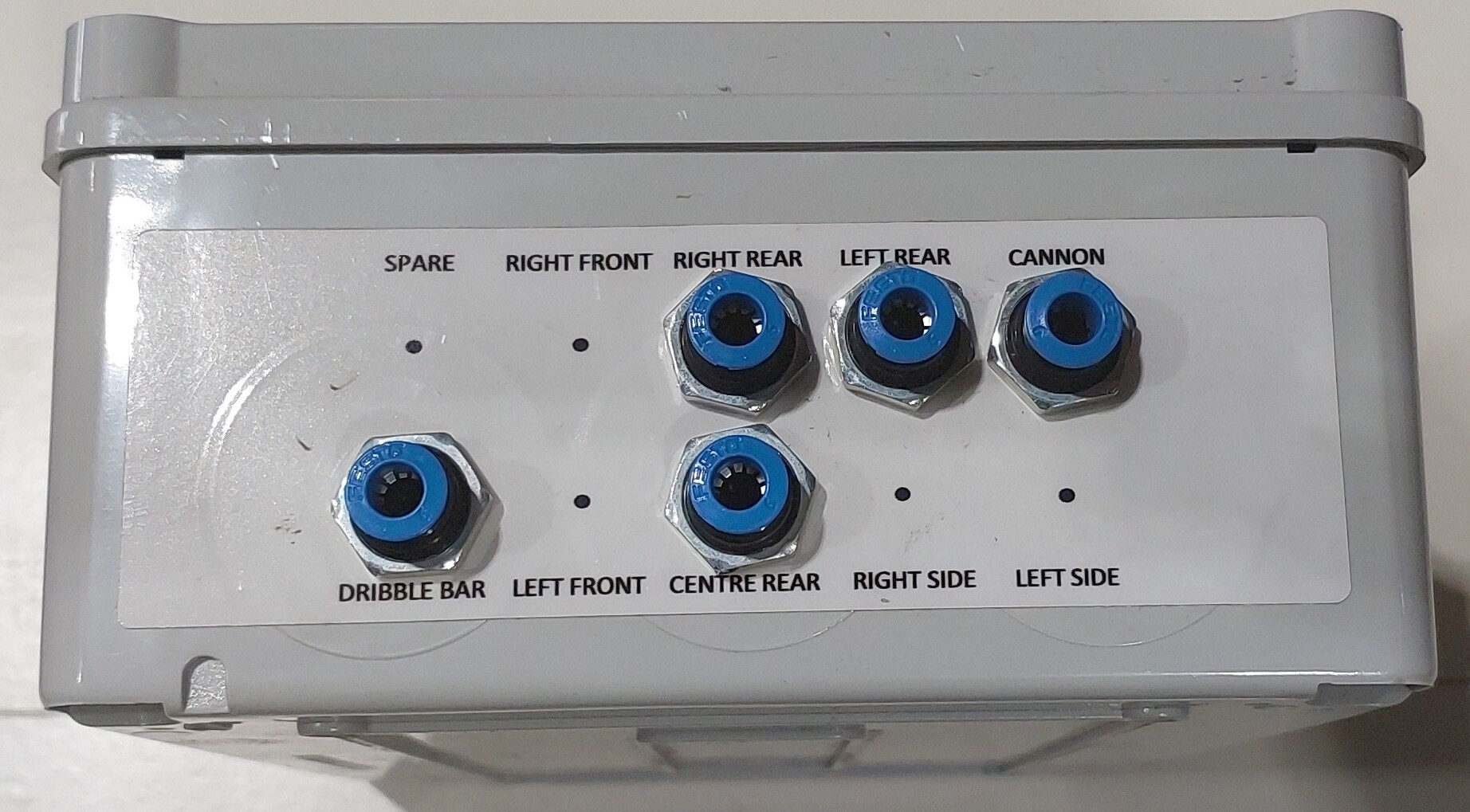

- External bulkhead ports for all airlines (6mm) at bottom of box
- Fully tested
- Single 6mm pneumatic supply line
- Dustproof box
- Approximate weight 2 kg
- Fully serviceable
Contact us to customise functions.
Note: The approximate cost is $86 for each additional Single Acting switch and approximately $164 for each additional Double Acting switch.
*Exclusive to Water Wise Trucks Parts - Custom made to order*
INCLUDES
- Air Valve Silencer 1/4 (BSLM02)
- Pneumadyne Air Switches - Toggle 3/2 (PNSW32-CO)
- Bulkhead Fitting 6mm to 4mm (PMM0406)
- Bulkhead Fitting 6mm (PM06)
- 4mm Nylon Flexible Tubing (PA4-4B-B200)
- Control Box Blank (CSSWBOX-BL)
- Control Box Face Plate (CS9FN-FP)
- Air Fitting Tee Equal 4mm (PUT04)
SHIPPING
Dimensions: 0.200m (w) x 0.23m (l) x 0.1m (h)
Weight: 2kg
Cubic: 0.0046m3
(CS110121PLPN-WT-P6)
| SKU | CS110121PLPN-WT-P6 |
| Brand | Water Wise Truck Parts |
| Shipping Weight | 2.0000kg |
