Six (6) Function Pneumatic Switch (SMC Switches) in Cab Control Plastic Box

PART #: CS110121PLPN-WT-P6-SMC

6 x Toggle Switch Pneumatic Box - SMC SWITCHES

$671.15
In Stock

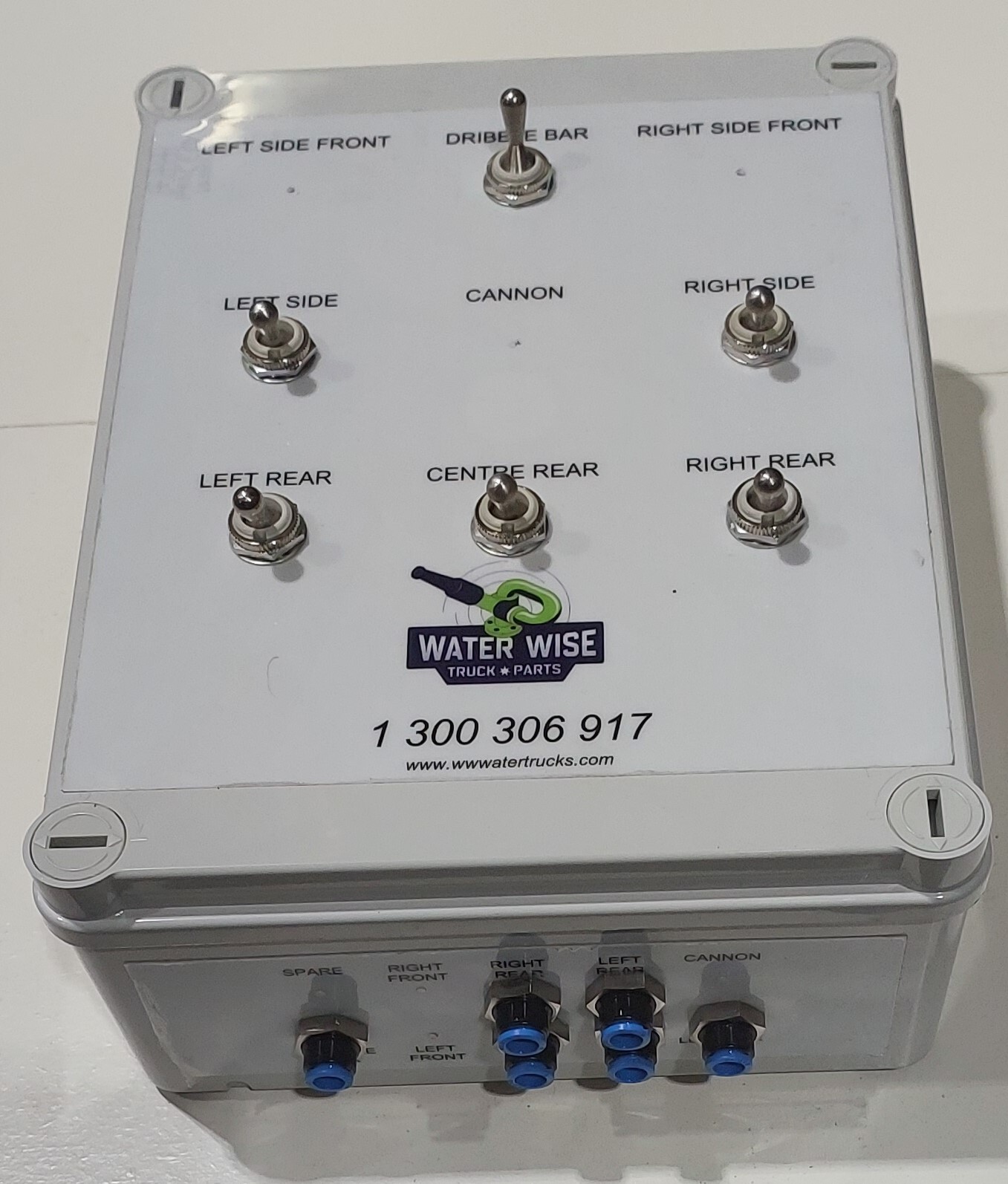

The CS110121PLPN-WT-P6 control box is a plastic box 170mm wide, 220mm long and 80mm deep, internally plumbed, externally labelled with six (6) SMC pneumatic toggle switches.

Functions can be added as required.

FEATURES
  • 6 x SMC Pneumatic Switches, Face Plate, Outlet label, Mounted & Plumbed in an enclosure
  • 3 x Rear Spray Valves - Normally Open (N/O)
  • 2 x Side Spray Valves - Normally Open (N/O)
  • 1 x Dribble Bar - Normally Closed (N/C)

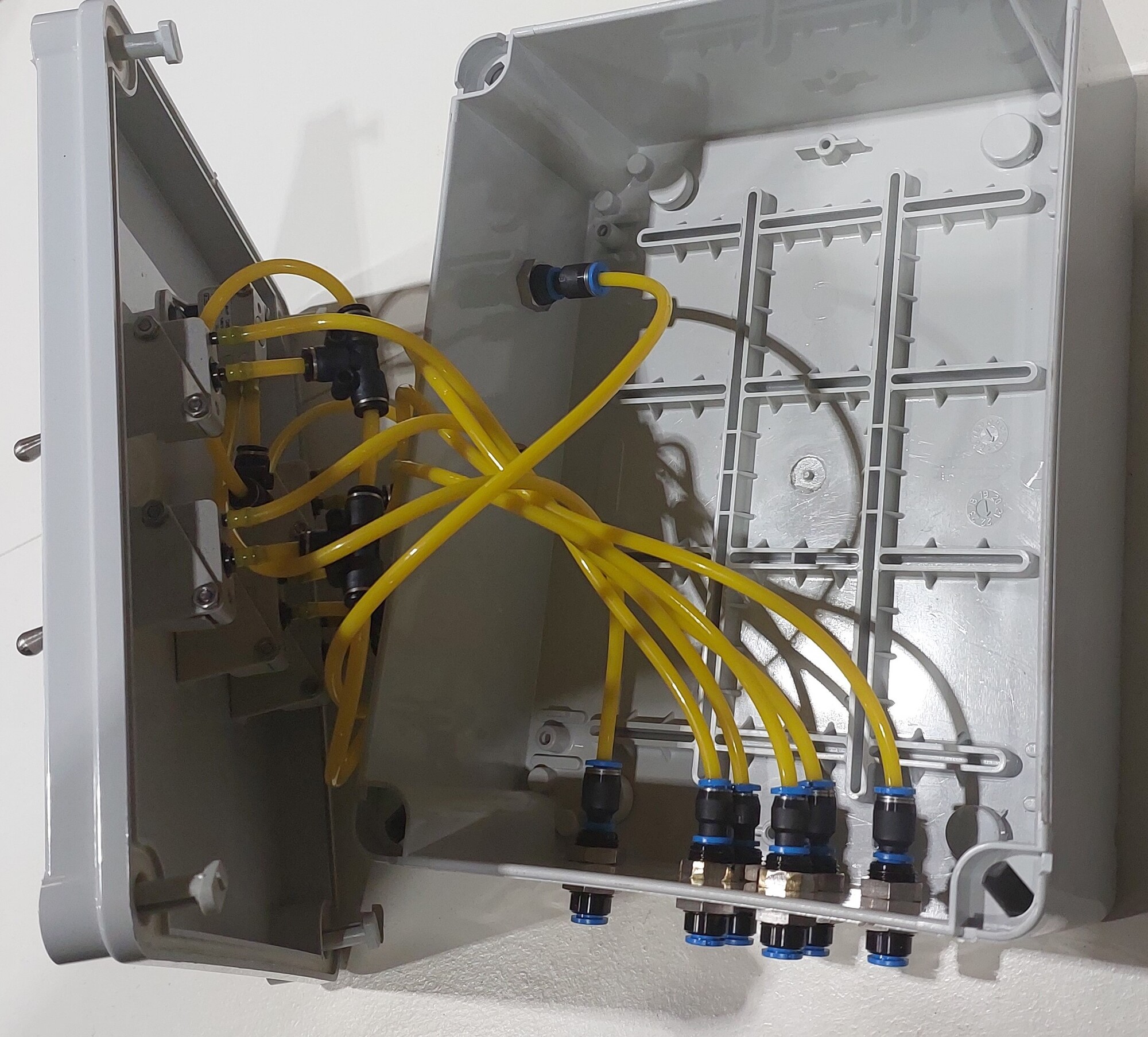

  • Internally plumbed with 4mm high-quality flexible tubing

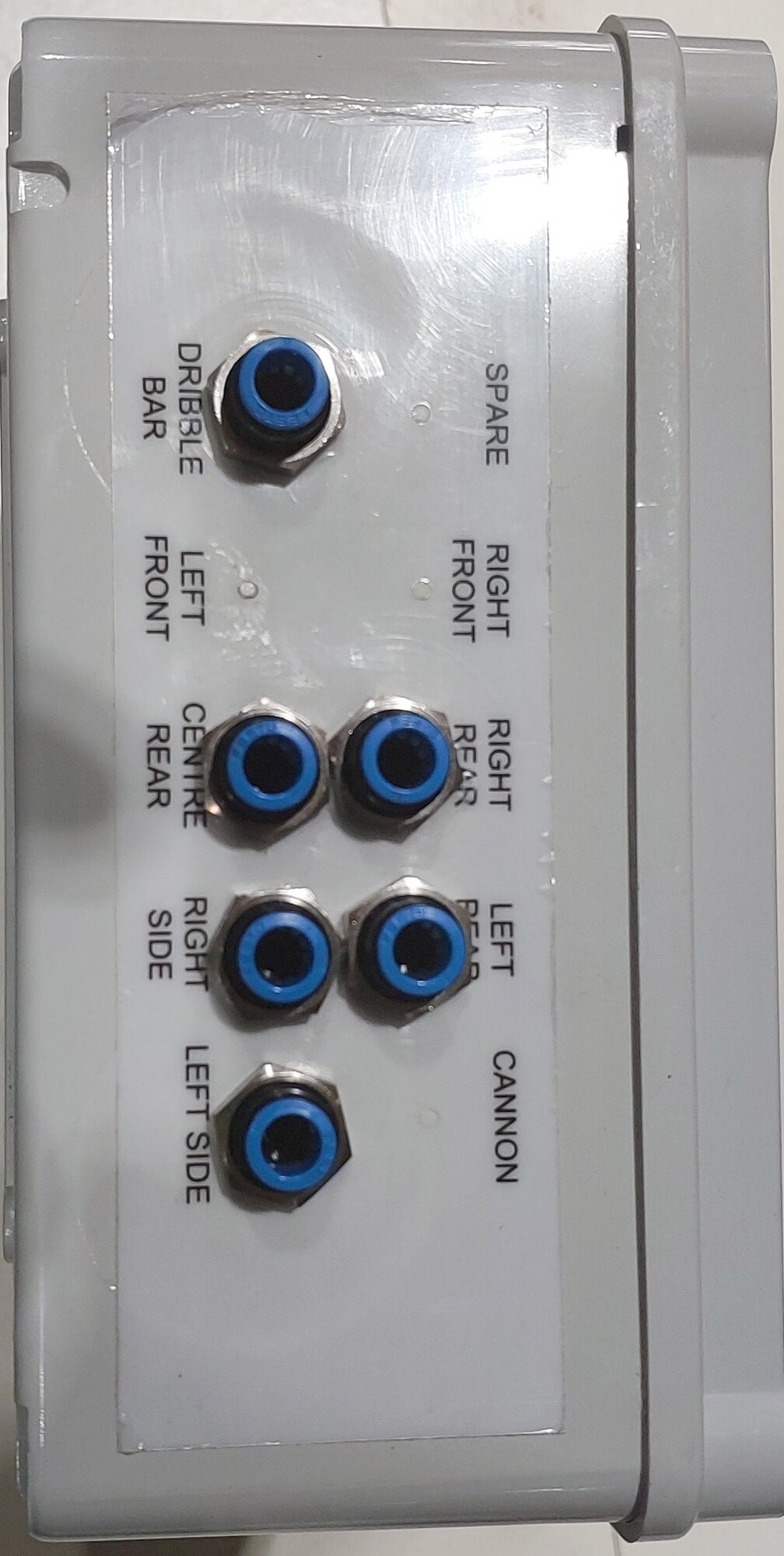

  • External bulkhead ports for all airlines (6mm) at bottom of box
  • Fully tested

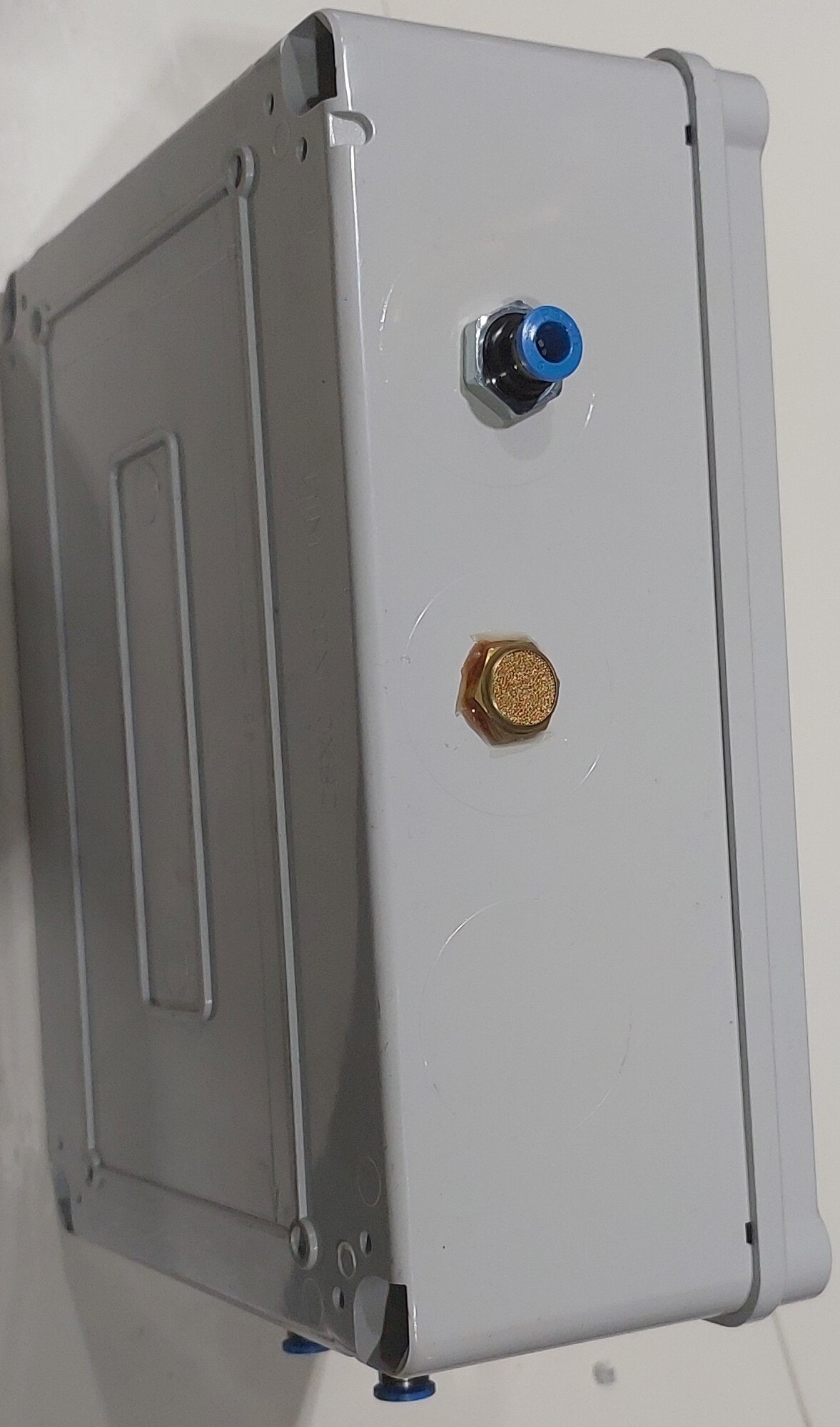

  • Single 6mm pneumatic supply line
  • Dustproof box
  • Approximate weight 2 kg
  • Fully serviceable

Contact us to customise functions.

Note: The approximate cost is $45 for each additional Single Acting switch and approximately $73 for each additional Double Acting switch.

 *Exclusive to Water Wise Trucks Parts - Custom made to order*

INCLUDES
  • Air Valve Silencer 1/4 (BSLM02)
  • SMC Air Switches - Toggle 3/2 (PNSW32-CO)
  • Bulkhead Fitting 6mm to 4mm (PMM0406)
  • Bulkhead Fitting 6mm (PM06)
  • 4mm Nylon Flexible Tubing (PA4-4B-B200)
  • Control Box Blank (CSSWBOX-BL)
  • Control Box Face Plate (CS9FN-FP)
  • Air Fitting Tee Equal 4mm (PUT0400)


SHIPPING

Dimensions: 0.200m (w) x 0.23m (l) x 0.1m (h)
Weight: 2kg
Cubic: 0.0046m3

(CS110121PLPN-WT-P6-SMC)

SKU CS110121PLPN-WT-P6-SMC
Brand Water Wise Truck Parts
Shipping Weight 2.0000kg
