SPECIAL - Electric Over Air Control System 24V - 7 Function - WIRED

PART #: CS110121SYS-24V-7-SP

SPECIAL - Electric Over Air Control System 24V - Funct

RRP $3,113.51
$1,401.00
SAVE $1,712.51 (55%)
In Stock

SPECIAL - LOWER THAN COST OF COMPONENTS - 1 UNIT ONLY

55% DISCOUNT

ORIGINAL PRICE $3113.51

The CS110121SYS-24V-7-SP is a completely wired 7 Function 24 Volt control system, the in cab control box is internally wired with switches with LED's, while the air solenoids are housed in an external weather proof (IP65 rated) box that can be mounted on the tank.

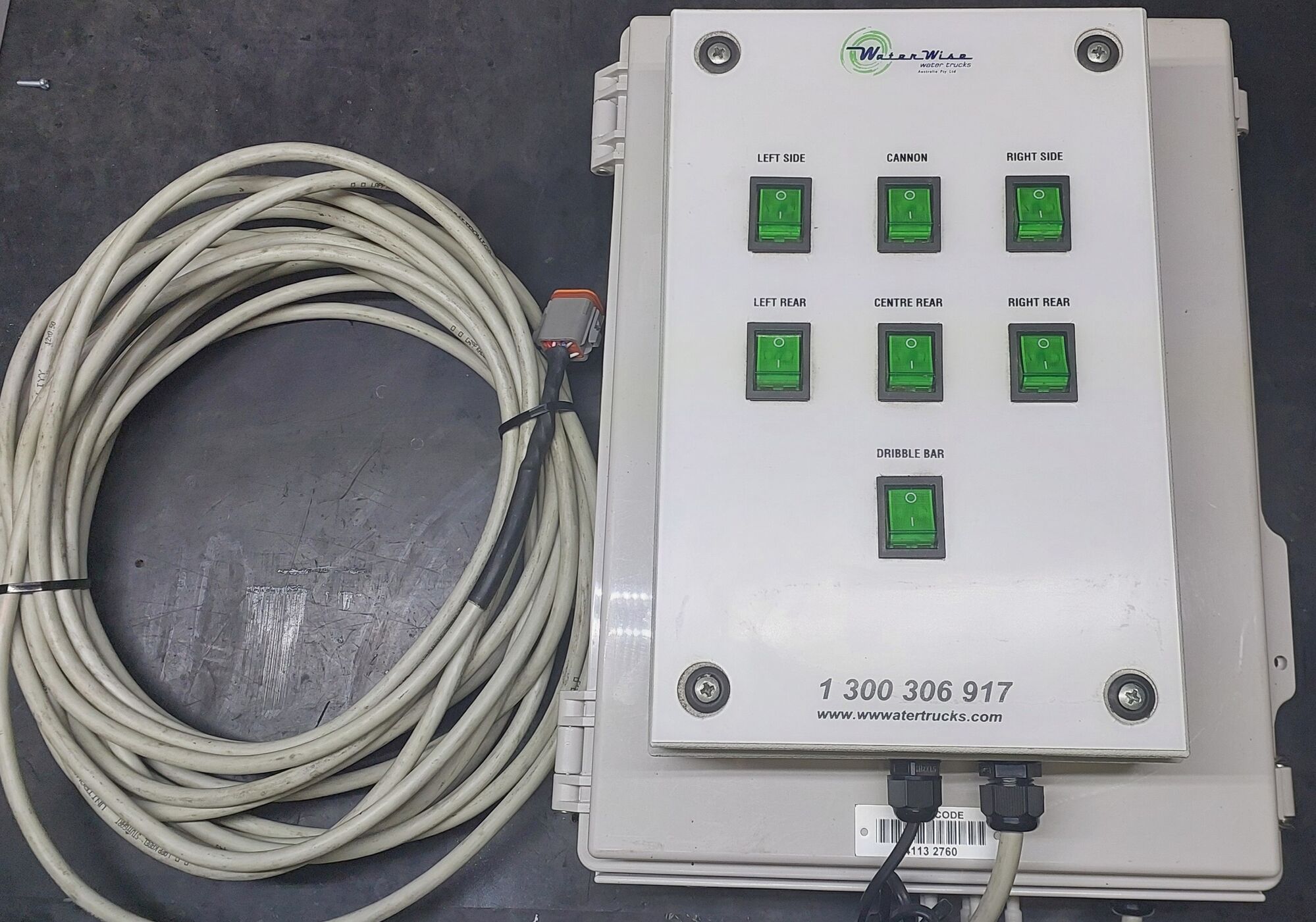

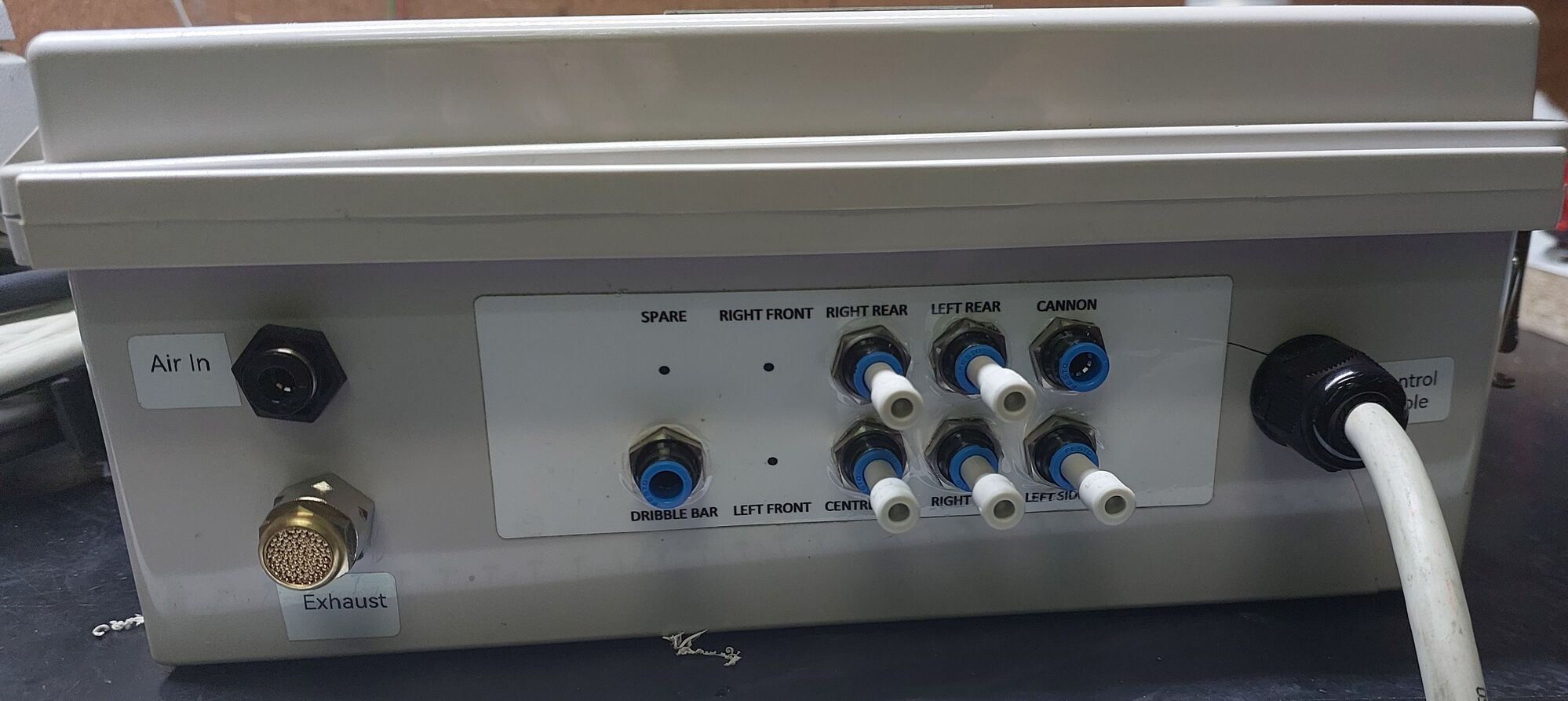

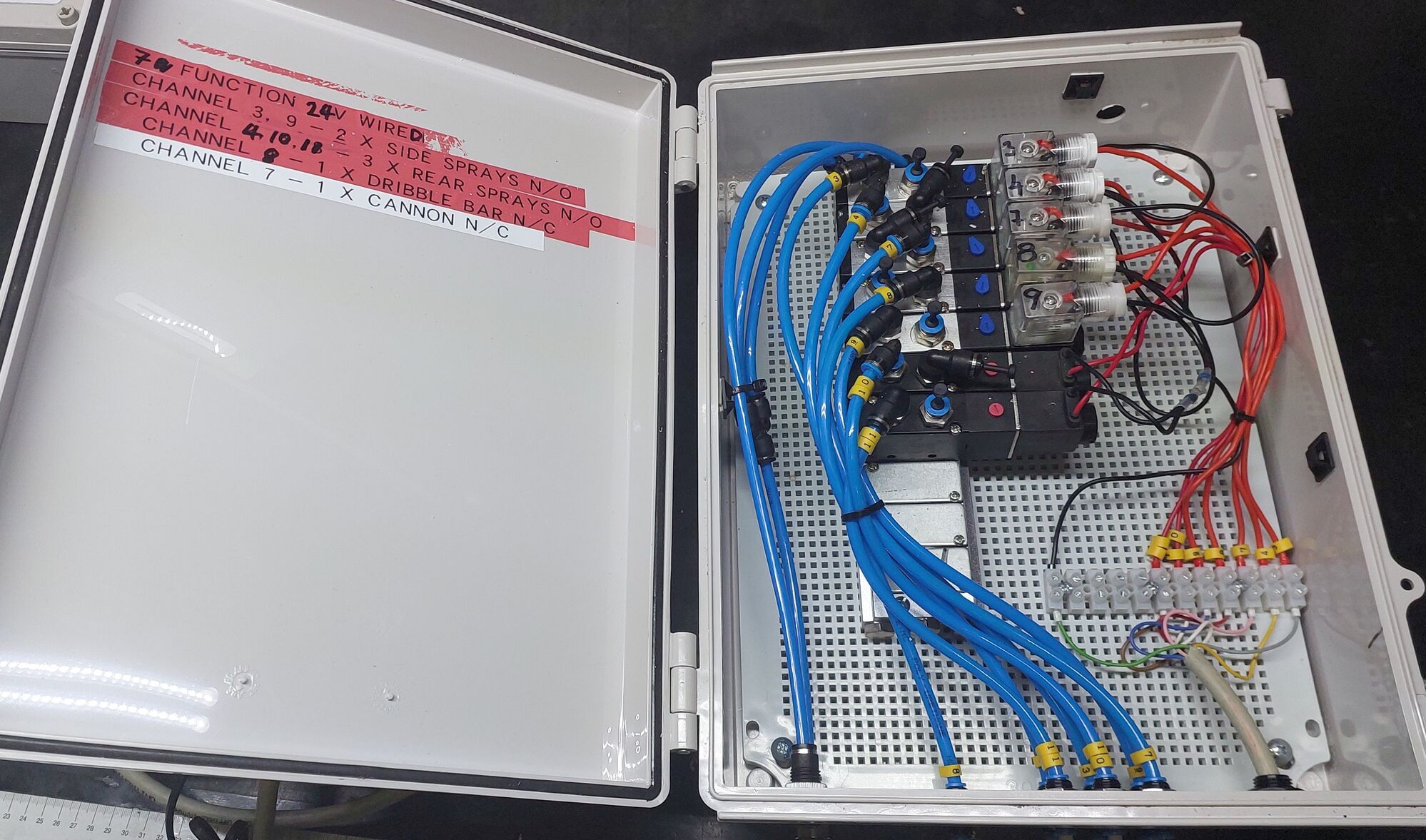

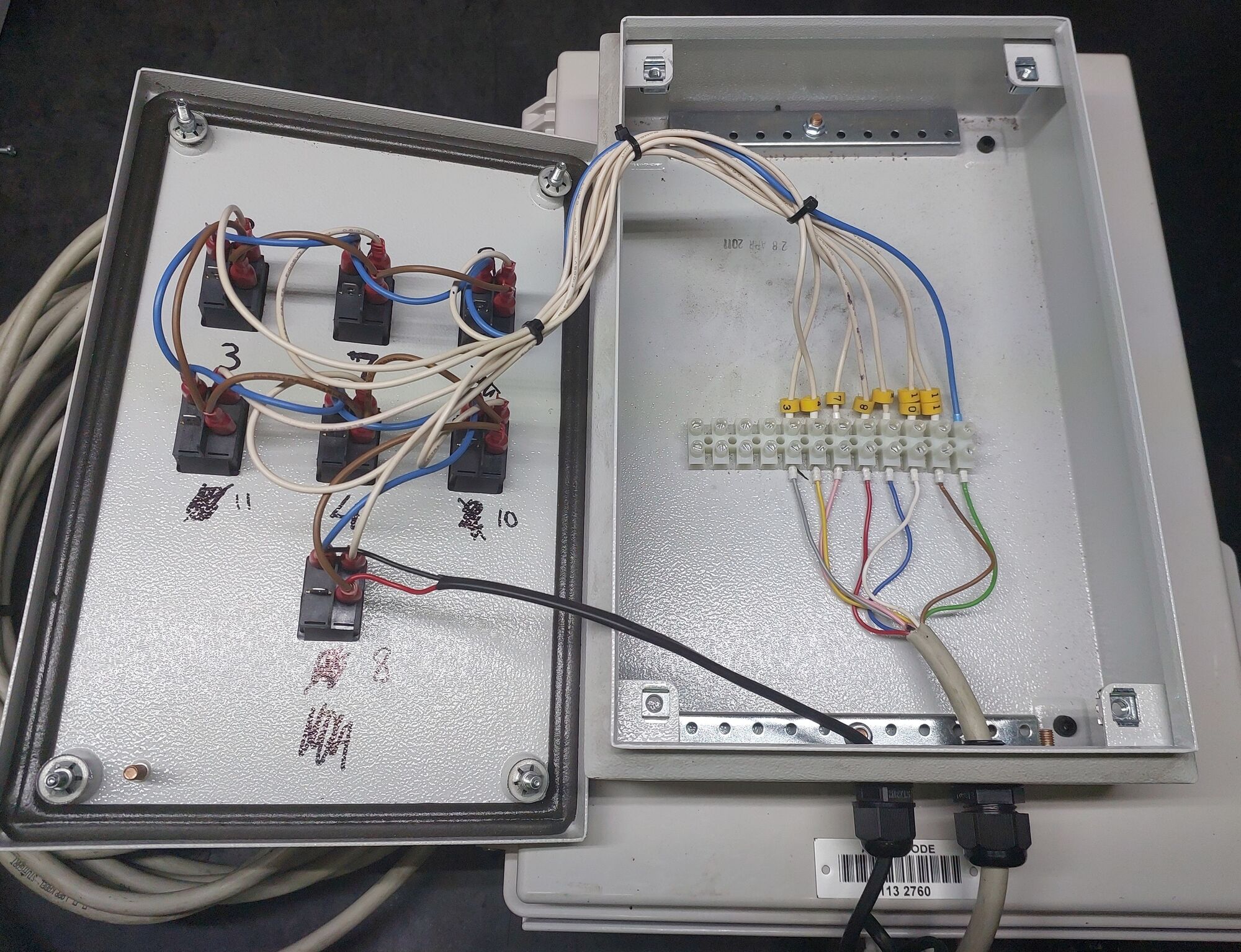

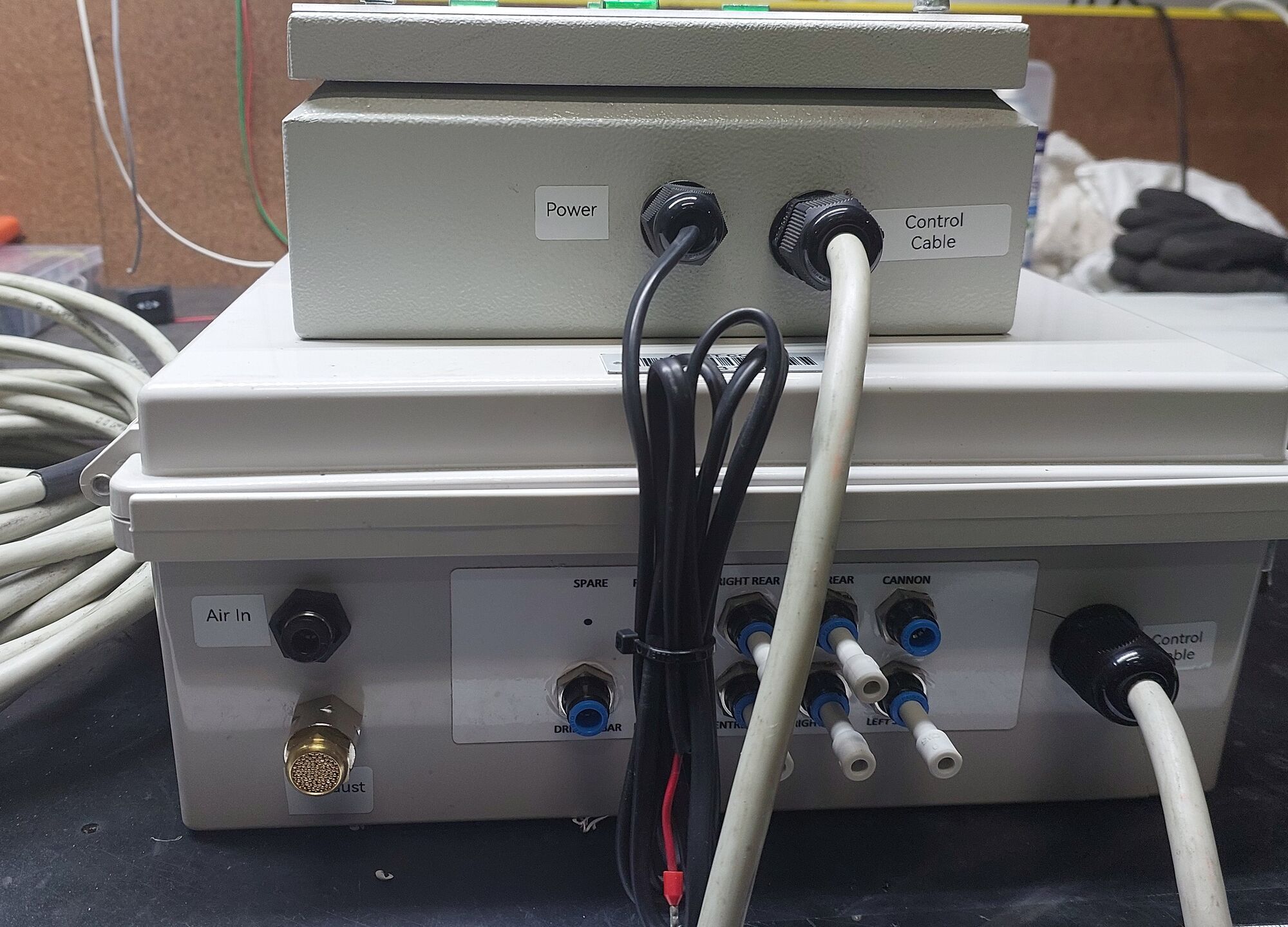

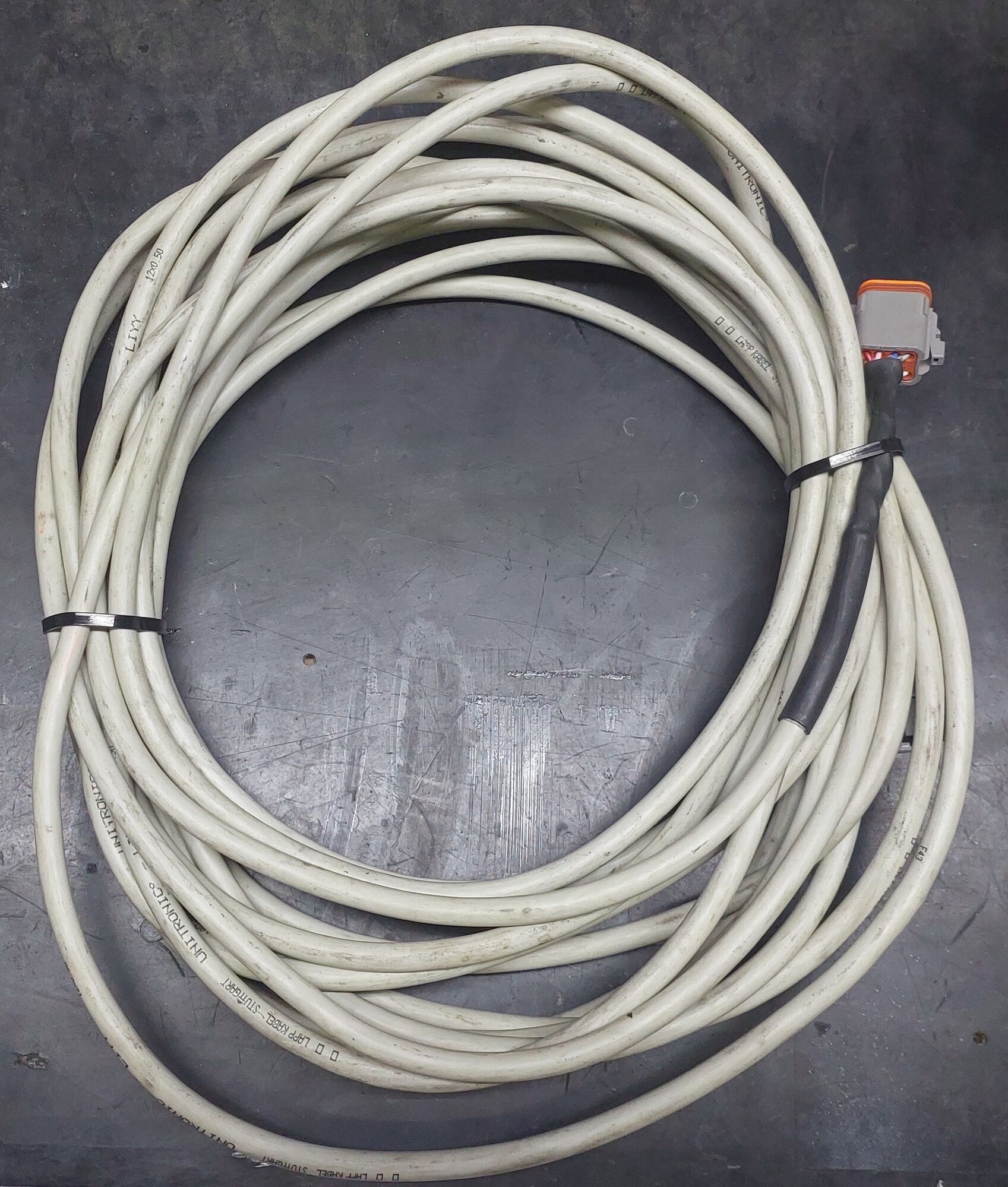

'In cab' control box has seven (7) switches fully wired with a face plate mounted in a steel enclosure (250 mm x 80 mm x 85 mm) with separate control & power leads (control lead has a Deutch plug).  Electrical control cabinet has seven (7) Solenoids mounted in weatherproof IP65 rated enclosure (300 mm x 400 mm x 150 mm).  Solenoid valves, air fittings, bulkhead fittings and internal air hoses are mounted in the enclosure. Electrical wiring (numbered and colour coded). Control cable (12 metres in length) connects between 'in cab' control box and Soleniod box.

Seven (7) Functions

  • Two (2) x Side Sprays - Normally Open (N/O) or 'One Way'
  • One (1) x Cannon  - Normally Closed (N/C) or 'One Way'
  • Three (3) x Rear Sprays - Normally Open (N/O) or 'One Way'
  • One (1) x Dribble Bar  - Normally Closed (N/C) or 'One Way'

SHIPPING

Dimensions: 0.3500m (w) x 0.300m (l) x 0.300m (h)
Weight: 5.2kg
Cubic: 0.0315m3



(CS110121SYS-24V-7-SP)

SKU CS110121SYS-24V-7-SP
Brand Water Wise Truck Parts
Shipping Weight 5.2000kg
