SV4105 Spray Valve Aluminium 80mm (3") - Water Wise Water Trucks
PART #: SV4105
AGM Type Spray Valve
We can ship your order on your own freight Account. Just leave you Freight Company's Name, The name of your account and your account number in the box below and we will do the rest.
Pick up is available form our Footscray warehouse Located at 15 Mephan Street, Footscray, Victoria. items can be collected between 9:00AM to 4:30PM Monday to Thursday and 9.00am to 12.00pm Fridays. Please bring a copy of your invoice with you.

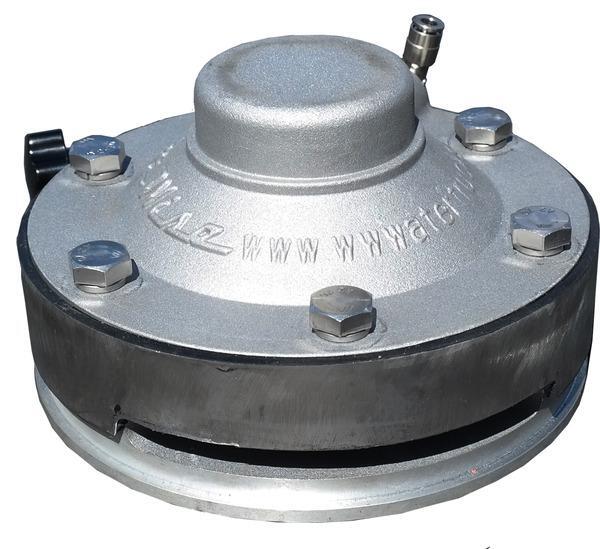

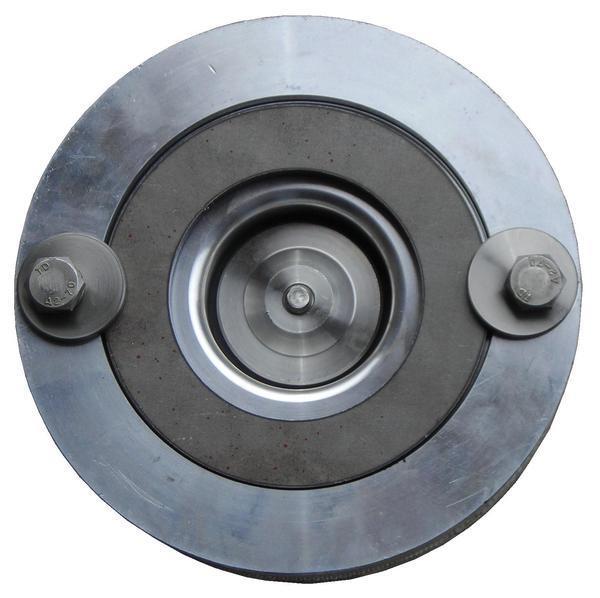

The SV4105 is cast from marine grade alloy with an output capacity of up to 1000 litres per minute (265 US Gallons per minute) and provides a dense even spray discharge of up to 6.7 metres (22 feet) and a spray width of up to 11 metres (36 feet). Air pressure holds the valve closed while water pressure opens the valve (valve opening pressure 0.55 bar / 8 psi). An internal spring closes the valve when the water pump is shut down or an absence of air pressure exists and eliminates the need for additional shut off valves. Fitted with an adjustable spray band this allows adjustment of spray pattern and output volume.
The SV4105 has a stainless steel equivalent the SV4104
It is also a direct replacement for SRTSV4105
Electric/Water actuation option available
- Output capacity up to 1000 litres per minute (265 US Gallons per minute)
- Stainless steel diaphragm sandwich plates.
- Stainless steel spring, fasteners and eccentric washers.
- Valve base with ‘o’ ring.
- Valve inlet port OD 63 mm (2.5 inch)
- Fully serviceable
- Includes Mounting Ring
- Adjustable Spray Band to Modify Spray Pattern
- Air fitting included (6mm)
- Fully Serviceable (Complete Spare Parts in Stock)
Dimensions: 0.160mm (w) x 0.200mm (l) x 0.200mm (h)
|Brand||Water Wise Truck Parts|
