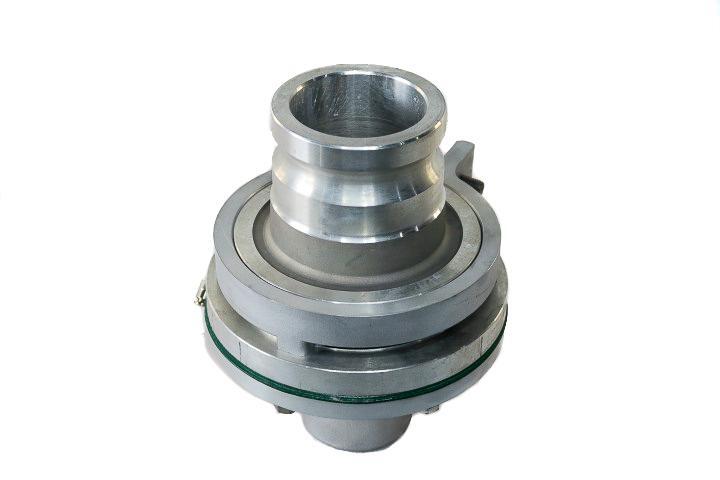

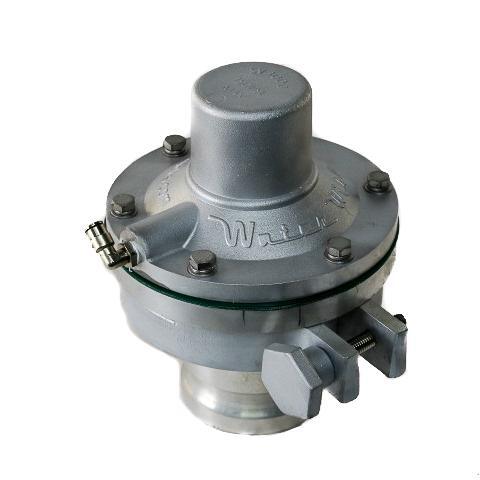

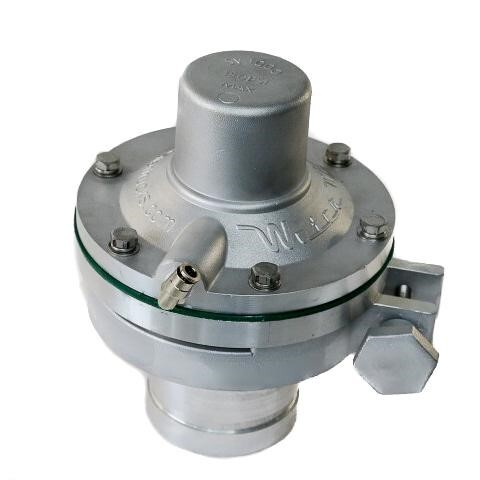

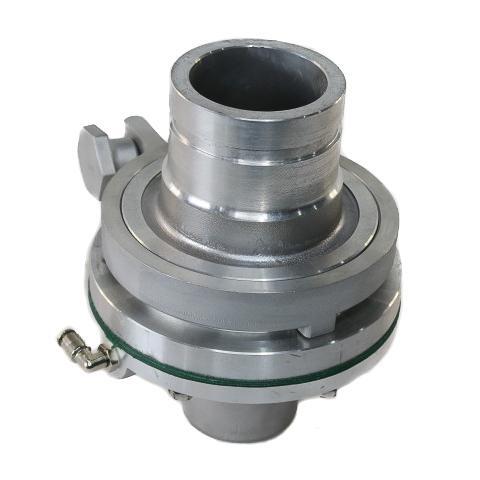

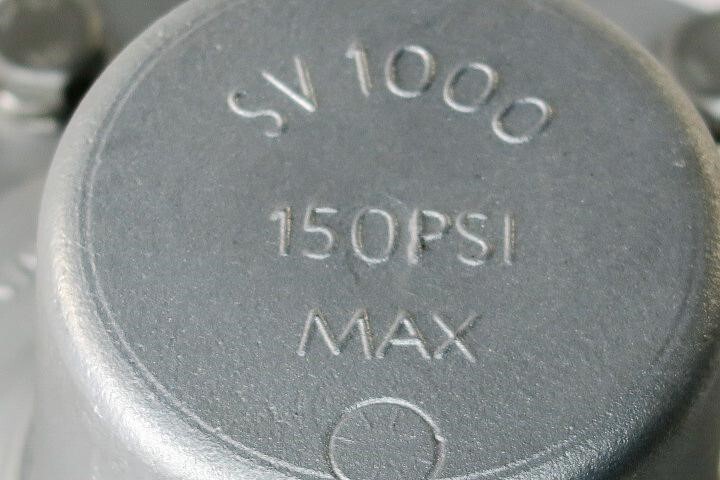

SV1000 Spray Valve 80mm (3") 1000LPM - Water Wise Truck Parts - Camlock

PART #: SV1000-80CL

$425.70
In Stock
Base

The SV1000 is a fully serviceable spray head valve cast from Marine grade alloy with an output capacity of up to 1000 litres per minute and provides a dense even spray discharge of up to 6.7 metres (22 feet) and a spray width of up to 11 metres (36 feet). A fully adjustable cast aluminium spray ring allows infinite flow and spray pattern variation. Air pressure holds the valve closed while water pressure opens the valve (valve opening pressure 0.55 bar / 8 psi). An internal spring closes the valve when the water pump is shut down or an absence of air pressure exists and eliminates the need for additional shut off valves.

Electric/Water actuation option available

FEATURES
  • Valve base with 75mm (3") male camlock or 75mm (3") groove.
  • Polymer diaphragm sandwich plates with a rubber seal.
  • Stainless steel internal spring.
  • Stainless steel hardware
  • Valve inlet port OD 75 mm (3”)
  • Adjustable Spray Band
  • Air Fitting on side of spray valve to avoid breakage
  • Fully serviceable and complete parts support held in stock
SHIPPING

Dimensions: 0.210m (w) x 0.220m (l) x 0.260m (h)
Weight: 4.2kg
Cubic: 0.012012000m3



(sv1000-spray-valve-80mm-3)

SKU sv1000-spray-valve-80mm-3
Brand Water Wise Truck Parts
Shipping Weight 4.2000kg
