SV500-80RG Water Wise Spray Valve 80mm 500LPM Grooved

PART #: SV500-80RG

SV500-80RG Water Wise Spray Valve 80mm 500LPM Grooved

Sold Out - Backorder Available

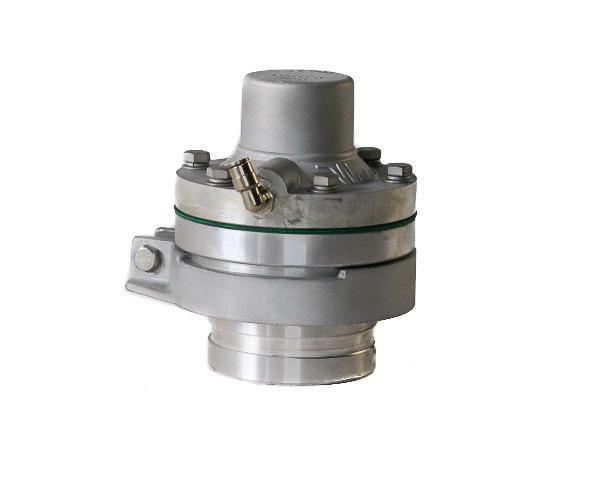

The SV500-80RG is a fully serviceable spray head valve cast from Marine grade alloy with an output capacity of up to 500 litres per minute (132 US Gallons per minute) and provides a dense even spray discharge of up to 12 metres (40 feet) and a spray width of up to 11 metres (36 feet).

A fully adjustable cast aluminium spray ring allows infinite flow and spray pattern variation. Air pressure holds the valve closed while water pressure opens the valve (approximate valve opening pressure 0.55 bar / 8 psi).

An internal spring closes the valve when the water pump is shut down or an absence of air pressure exists and eliminates the need for additional shut off valves.

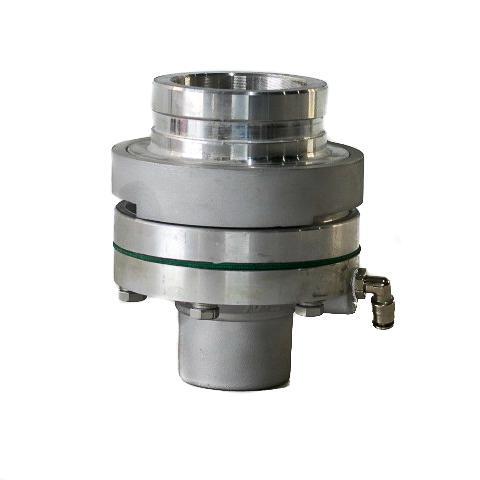

  • Valve base with 80mm (3”) Grooved

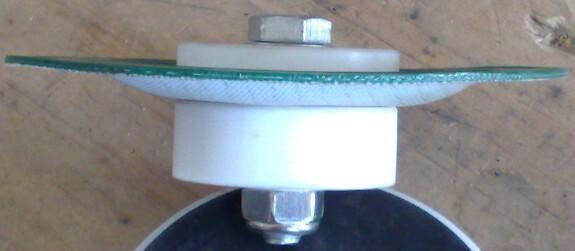

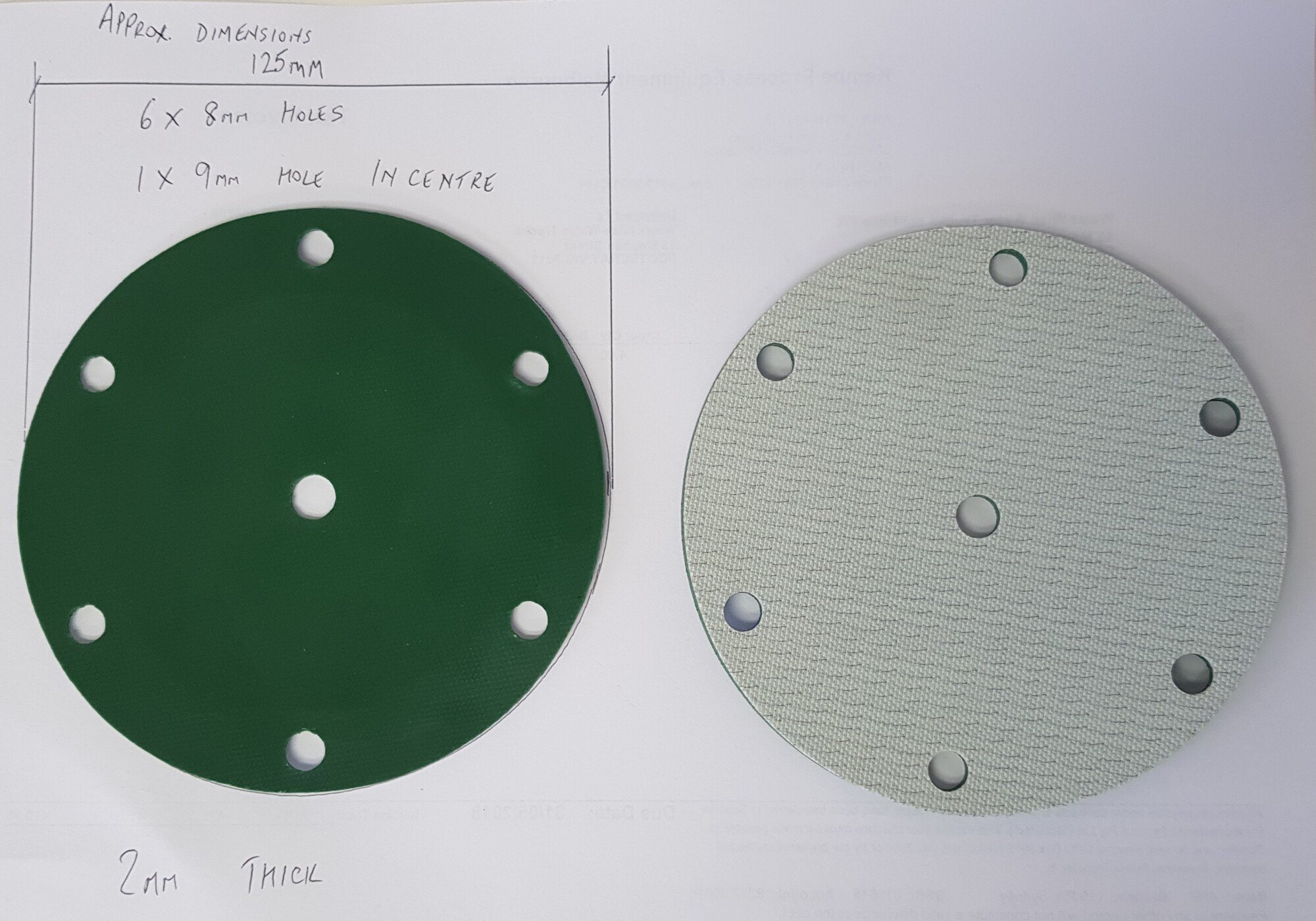

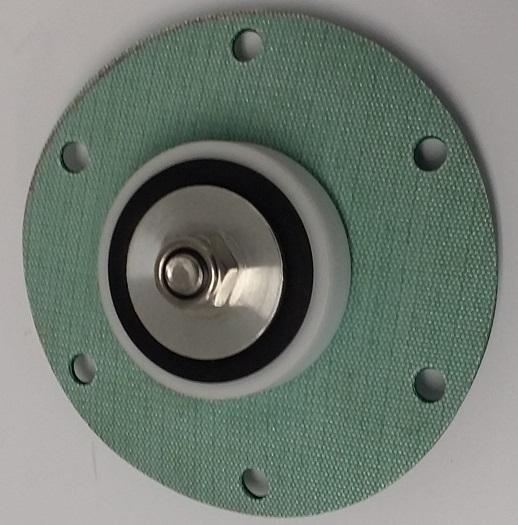

  • Polymer diaphragm sandwich plates

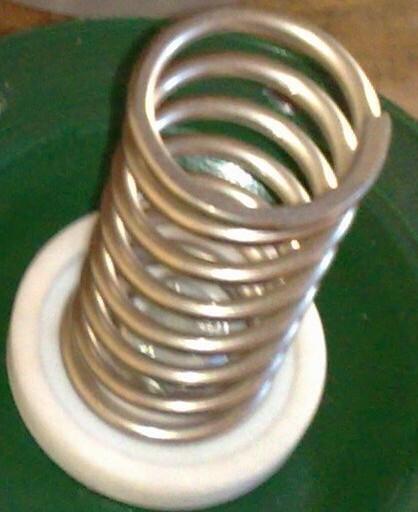

  • Stainless steel internal spring and hardware
  • Adjustable Spray Band
  • 360 degree rotation
  • Valve inlet port OD 38 mm (1 1/2”)
  • Air Fitting on side of spray valve to avoid breakage
  • Fully serviceable and complete parts support available
  • 12 month warranty

Dimensions: 0.160m (w) x 0.150m (l) x 0.190m (h)
Weight: 2.4kg
Cubic: 0.00456m3


SKU SV500-80RG
Brand Water Wise Truck Parts
Shipping Weight 2.4000kg
