SPECIAL - Electric Over Air Control System 12V - 4 Function - WIRED

PART #: CS110121SYS-12V-4-SP

SPECIAL - Electric Over Air Control System 12V - Funct

RRP $2,179.63
$915.00
SAVE $1,264.63 (58%)
Sold Out - Backorder Available

SPECIAL - LOWER THAN COST OF COMPONENTS - 1 UNIT ONLY

58% DISCOUNT

ORIGINAL PRICE $2179.63

The CS110121SYS-12V-4-SP is a completely wired 4 Function 12 Volt control system, the in cab control box is internally wired with switches with LED's, while the air solenoids are housed in an external weather proof (IP65 rated) box that can be mounted on the tank.

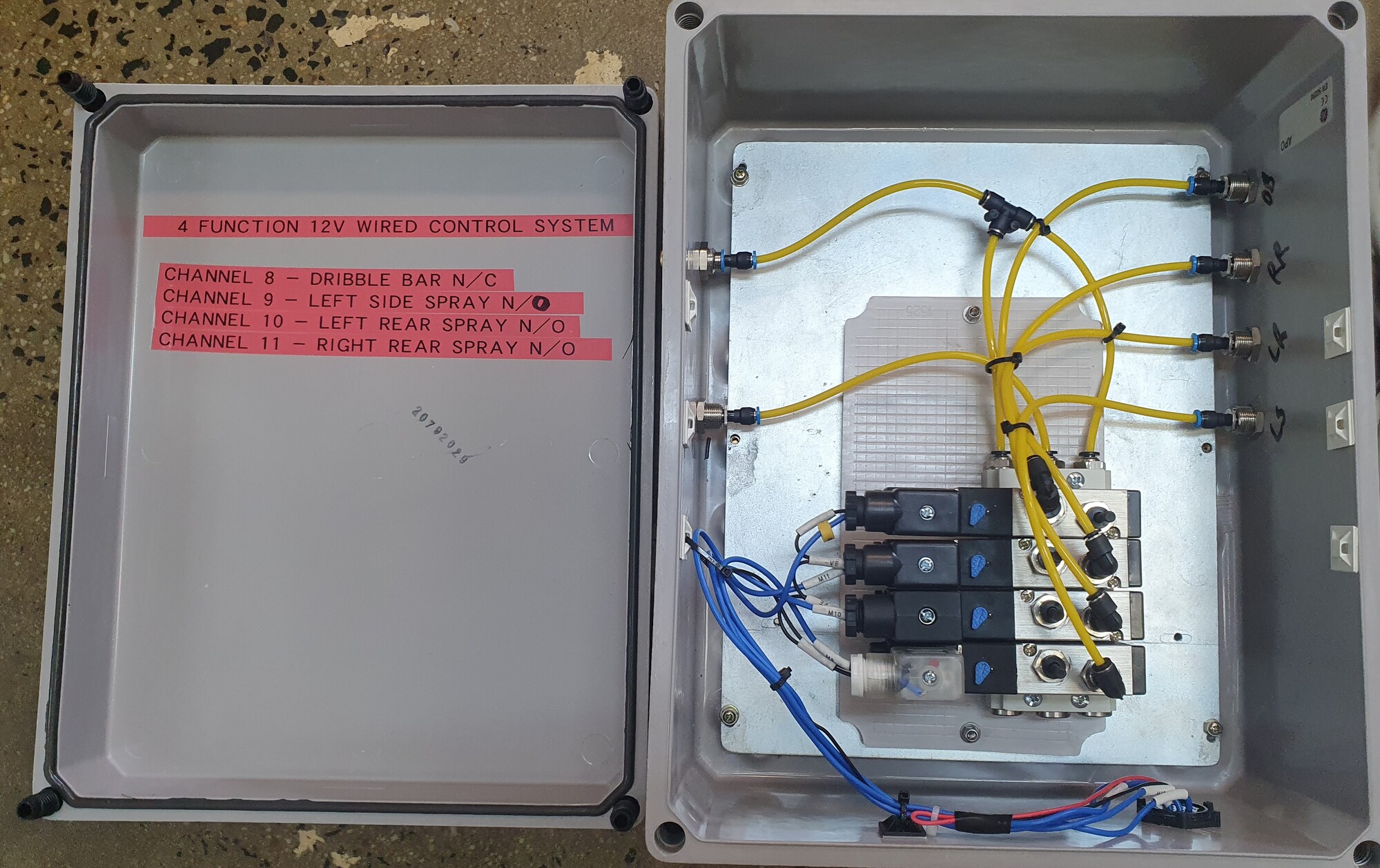

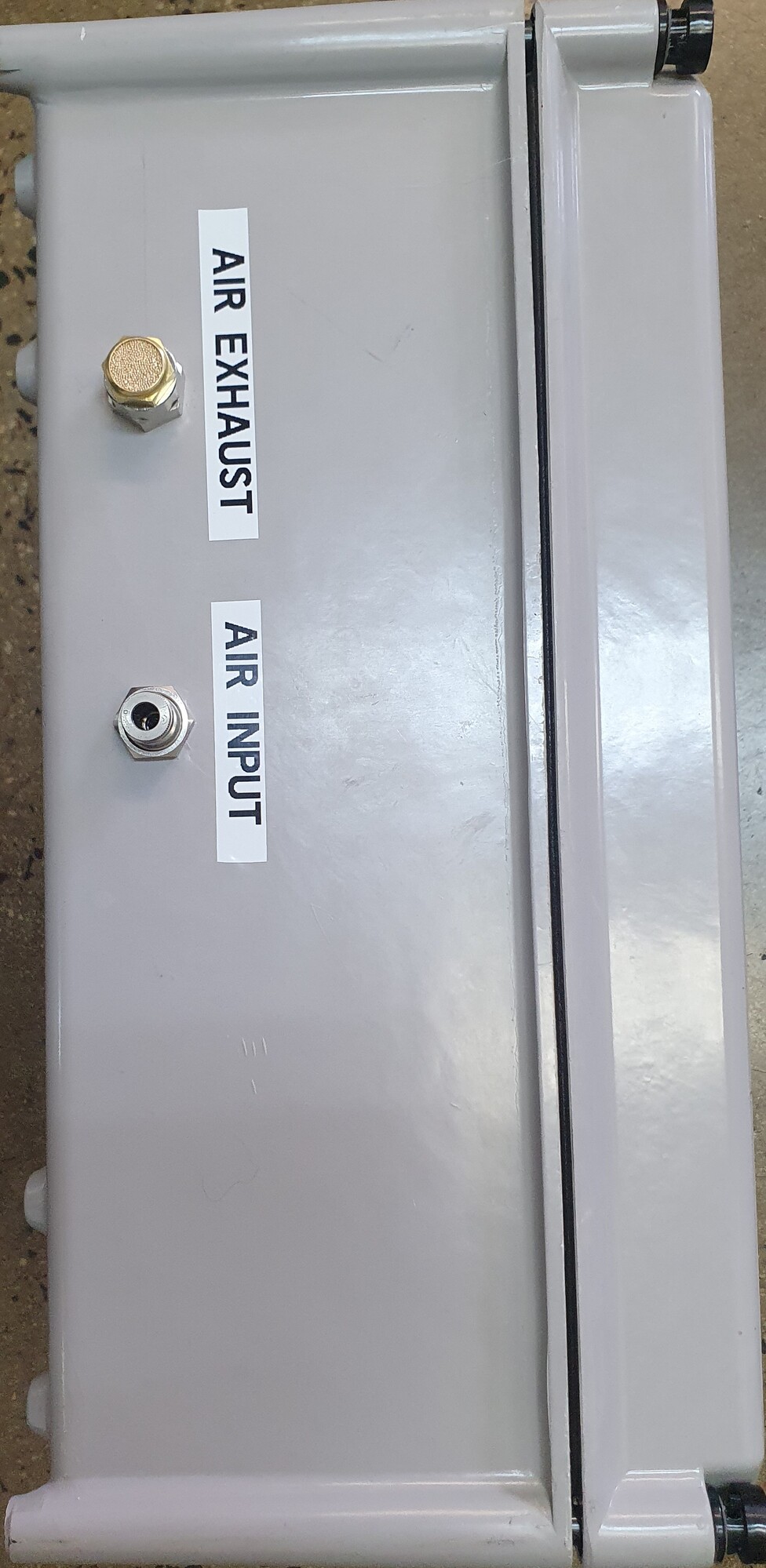

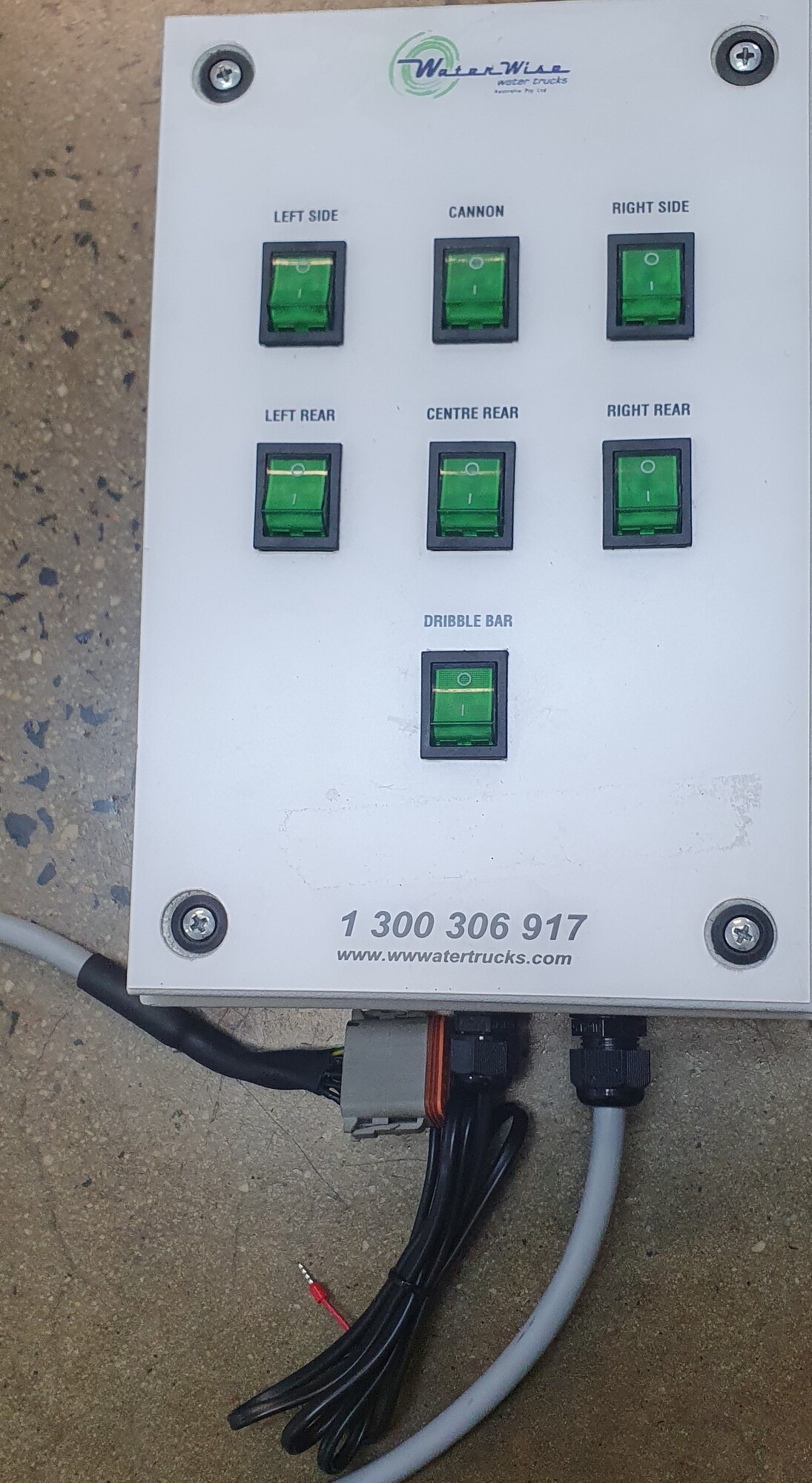

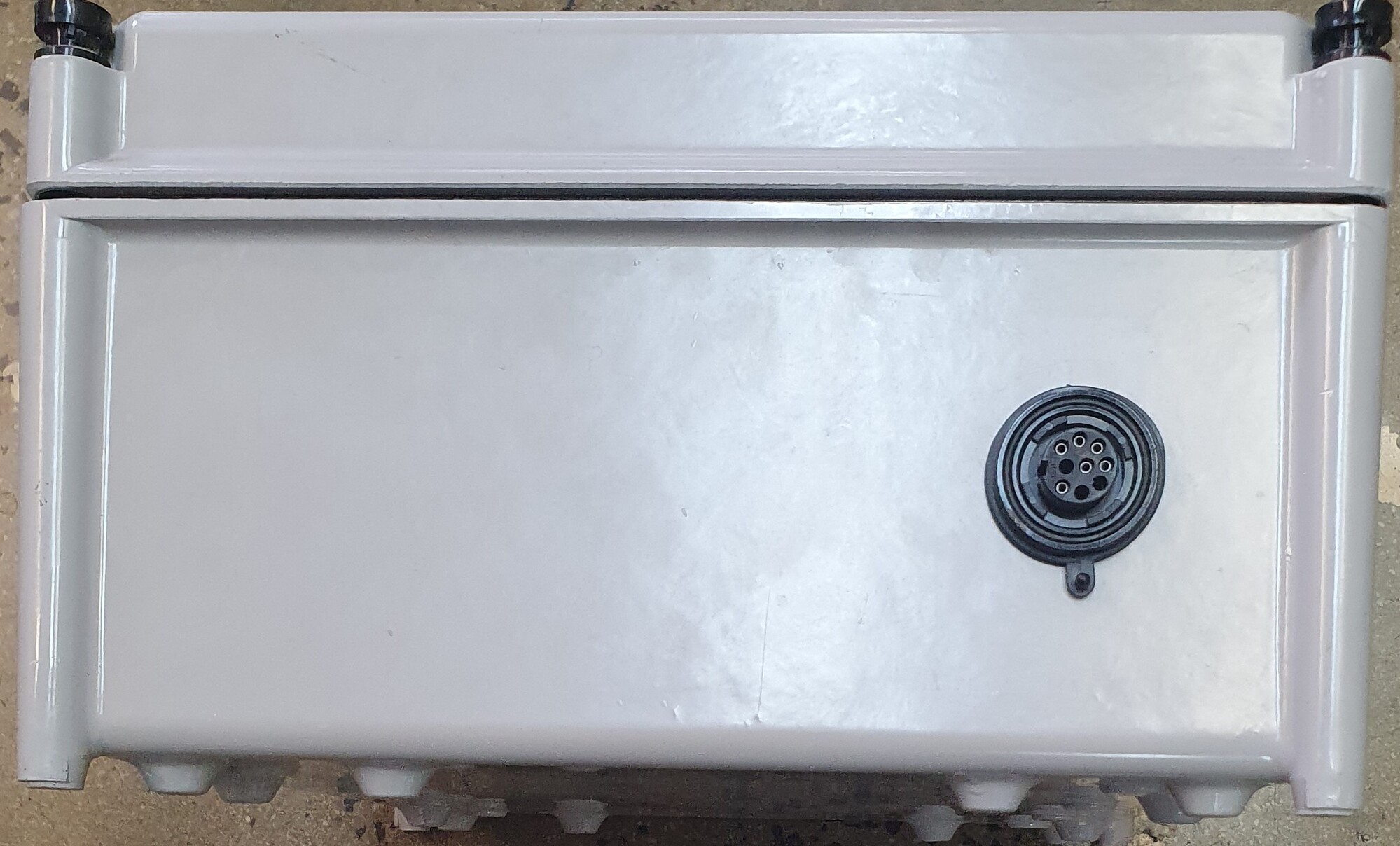

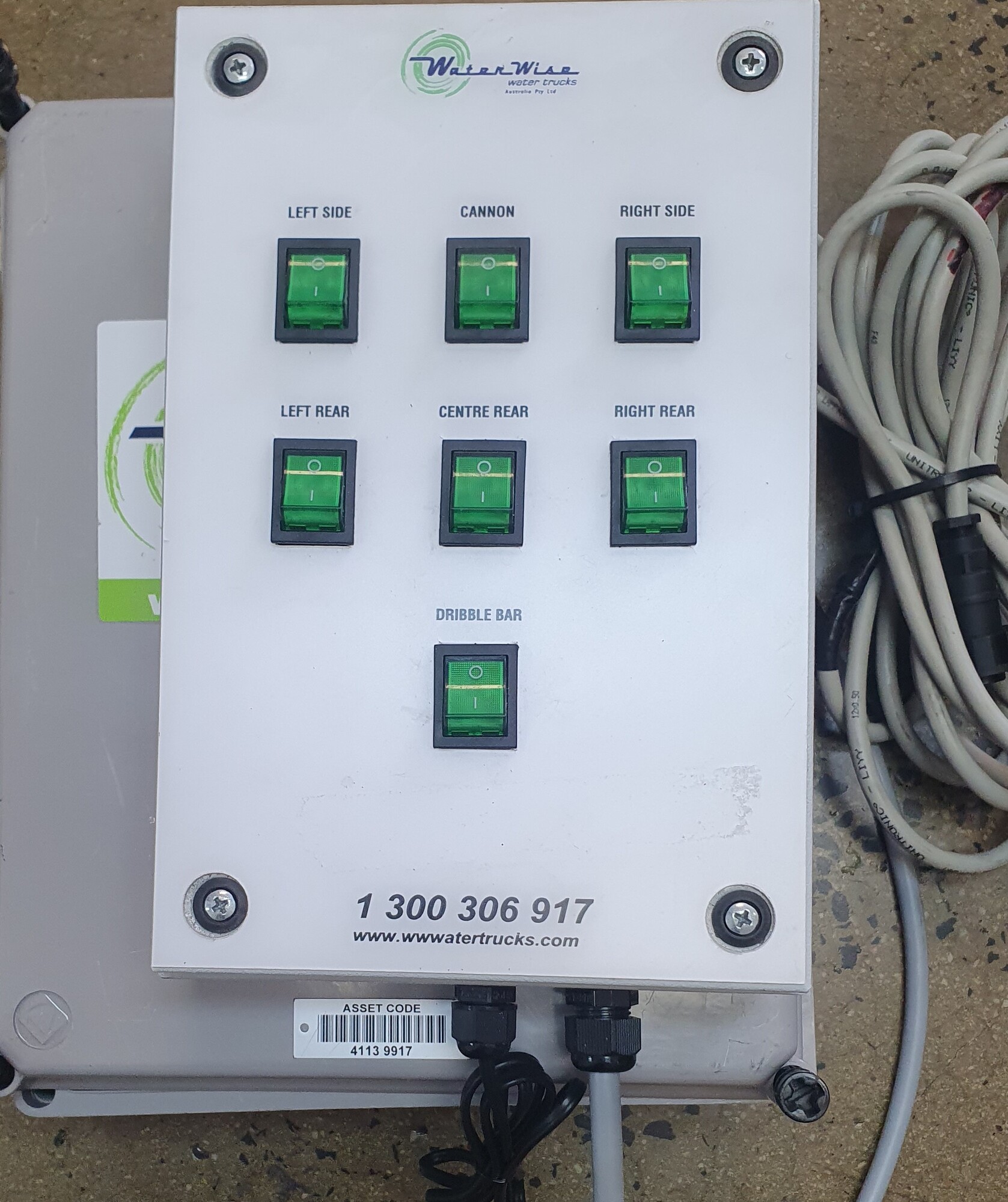

'In cab' control box has seven (7) switches fully wired with a face plate mounted in a STEEL enclosure (300 mm x 200 mm x 90 mm) with separate control cable & power leads.  Electrical solenoid cabinet has four (4) solenoids mounted on a manifold in fibreglass weatherproof IP65 rated enclosure (380 mm x 310 mm x 180 mm).  Solenoid valves, air fittings, bulkhead fittings and internal air hoses are mounted in the enclosure. Electrical wiring (numbered and colour coded). Wiring and air schematic. Control cable (6 metres in length) has a Deutsch socket fitted on one end and a round Military style plastic plug on the other.  The 'in cab'control box has a lead (300 mm in length) fitted with a Deutsch plug and a power lead (1 metre in length).

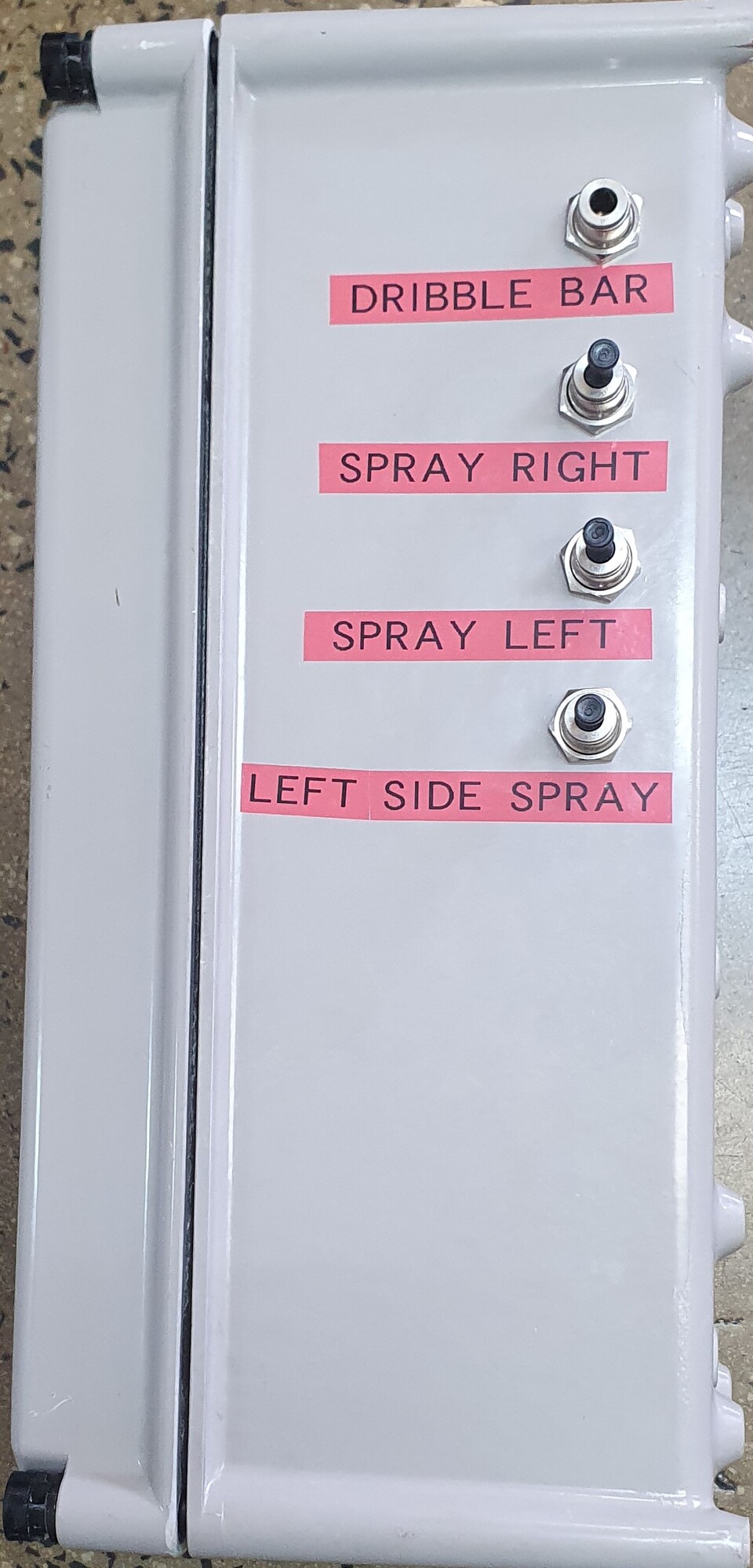

Four (4) Functions

  • One (1) x Side Spray - Normally Open (N/O) or 'One Way'
  • Two (2) x Rear Sprays - Normally Open (N/O) or 'One Way'
  • One (1) x Dribble Bar  - Normally Closed (N/C) or 'One Way'

SHIPPING

Dimensions: 0.310m (w) x 0.380m (l) x 0.300m (h)
Weight: 8.7kg
Cubic: 0.03534m3



(CS110121SYS-12V-4-SP)

SKU CS110121SYS-12V-4-SP
Brand Water Wise Truck Parts
Shipping Weight 8.7000kg
Shipping Width 0.310m
Shipping Height 0.300m
Shipping Length 0.380m
Shipping Cubic 0.035340000m3
Assembled Length 0.390m
Assembled Height 0.310m
Assembled Width 0.320m
