SPECIAL - Electric Over Air Control System 12V - 6 Function - WIRELESS
PART #: CS110121SYS-12V-6-SP-WS
SPECIAL - Electric Over Air Control System 12V
Express Post satchels can be deliverd to PO Boxes Australia wide.
Pick up is available form our Footscray warehouse Located at 15 Mephan Street, Footscray, Victoria. items can be collected between 9:00AM to 4:30PM Monday to Thursday and 9.00am to 12.00pm Fridays. Please bring a copy of your invoice with you.
SPECIAL - LOWER THAN COST OF COMPONENTS - 1 UNIT ONLY
The CS110121SYS-12V-6-SP-WS is a completely wireless 6 Function 12 Volt control system, the in cab control hand piece (transmitter) has functions that are individually labeled while the receiver & air solenoids are housed in an external weather proof (IP65 rated) box that can be mounted on the tank.

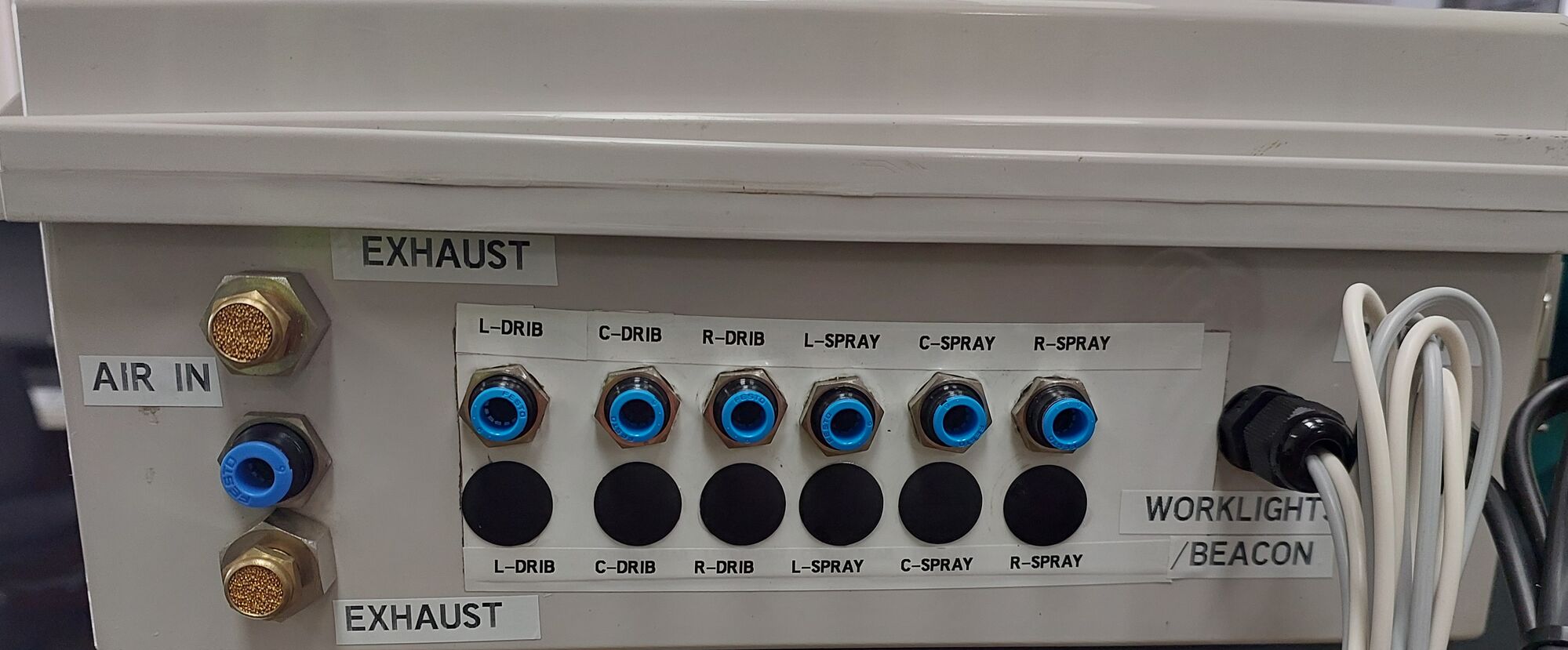

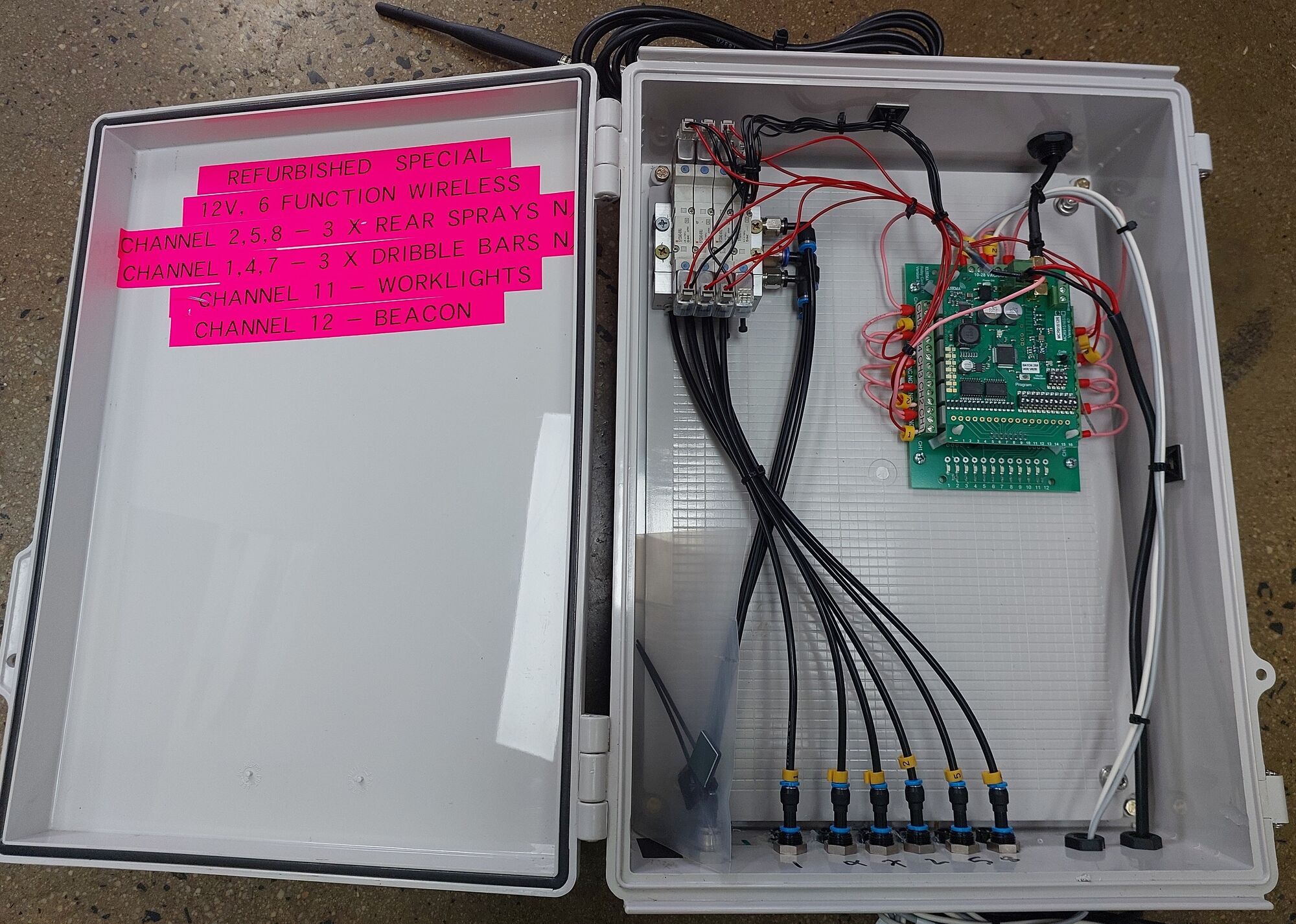

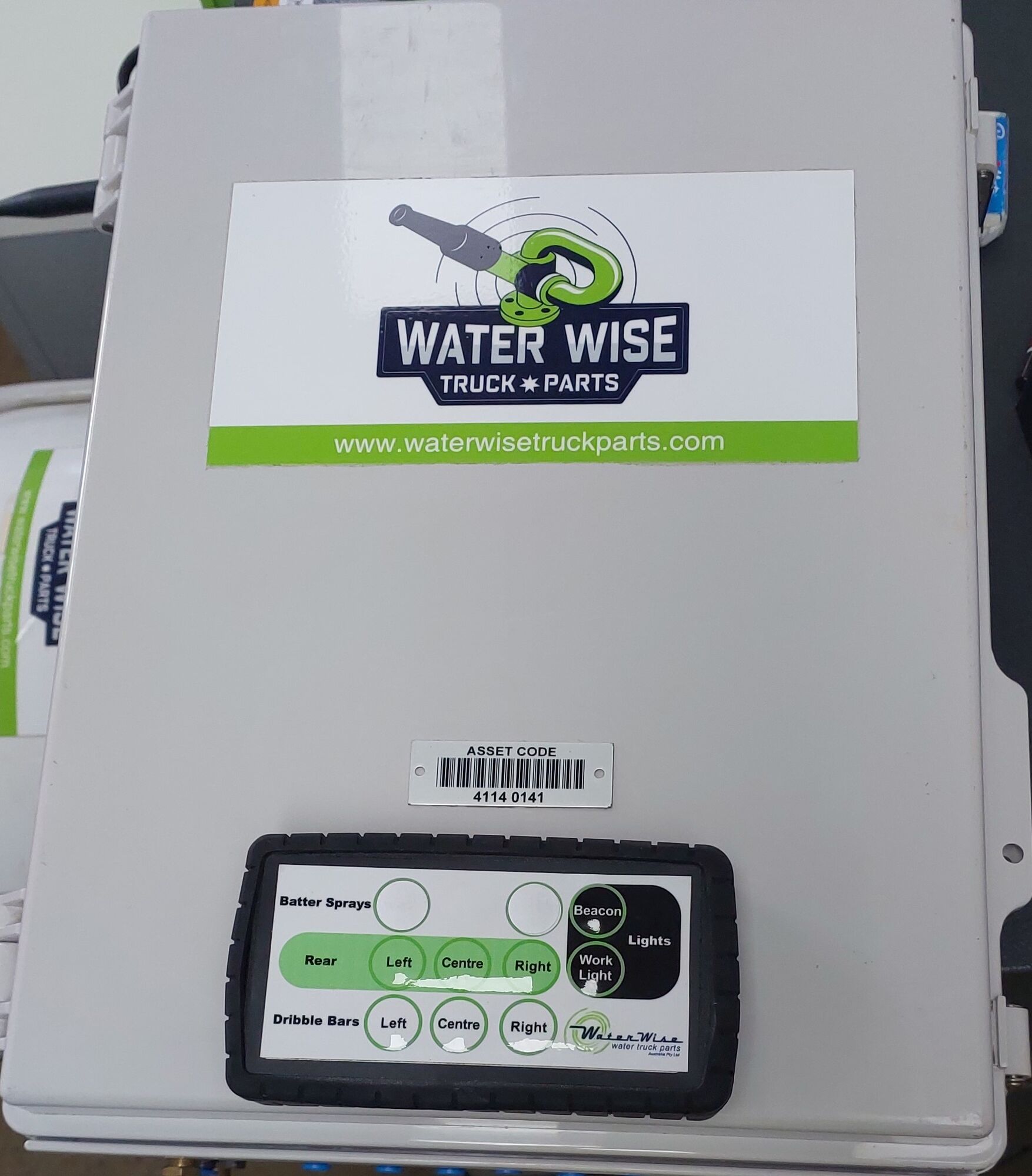

'In cab' control hand piece has six (6) buttons with a face plate in a plastic enclosure with a rubber sleeve (140 mm x 75 mm x 30 mm). Electrical control cabinet has four (4) SMC solenoids mounted in weatherproof IP65 rated enclosure (360 mm x 300 mm x 150 mm) with an external power lead. The solenoid valves, air fittings, bulkhead fittings and internal air hoses are mounted in the enclosure. Electrical wiring & airlines are numbered.

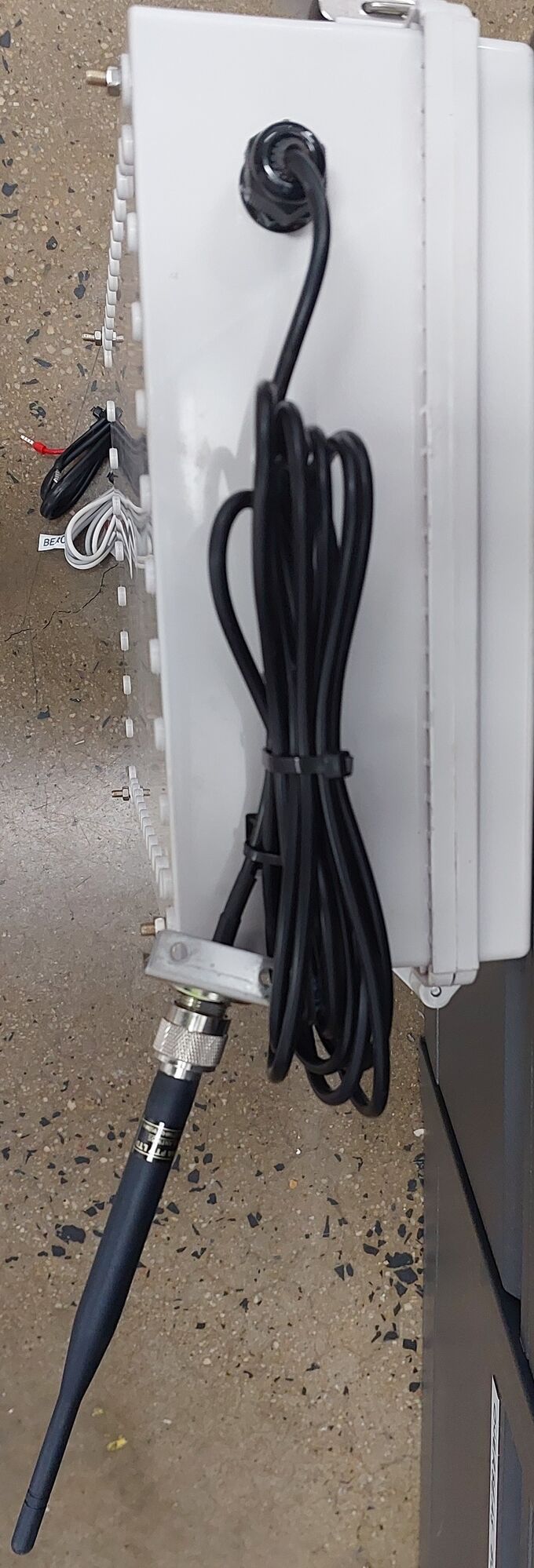

System also includes an externally mounted (relocatable) aerial
May require Quick Exhaust Valves fitted to spray valves or butterfly valves (Part # PQEV-14)
Six (6) Functions
- Three (3) x Rear Sprays - Normally Closed (N/C) or 'One Way' (One Airline)
- Three (3) x Dribble Bars - Normally Closed (N/C) or 'One Way' (One Airline)
- NEW SMC solenoid valves, transmitter & receiver.
- NEW 6mm bulkheads to suit 6mm airline
Dimensions: 0.360m (w) x 0.300m (l) x 0.1500m (h)
