SPECIAL - Pneumatic Switch Control Box - Plastic Enclosure (4 Function)

PART #: CS110121PLPN-WT-P4-SP

SPECIAL - Air Switch Control Box - Plastic Enclosure

RRP $642.81
$321.41
SAVE $321.40 (50%)
In Stock

SPECIAL PRICING - WELL BELOW COST

ONE (1) UNIT ONLY

50% DISCOUNT

ORIGINAL PRICE $642.81

Pneumatic control box (IP67 Rated) can be used to control spray valves & butterfly valves (4 Function)

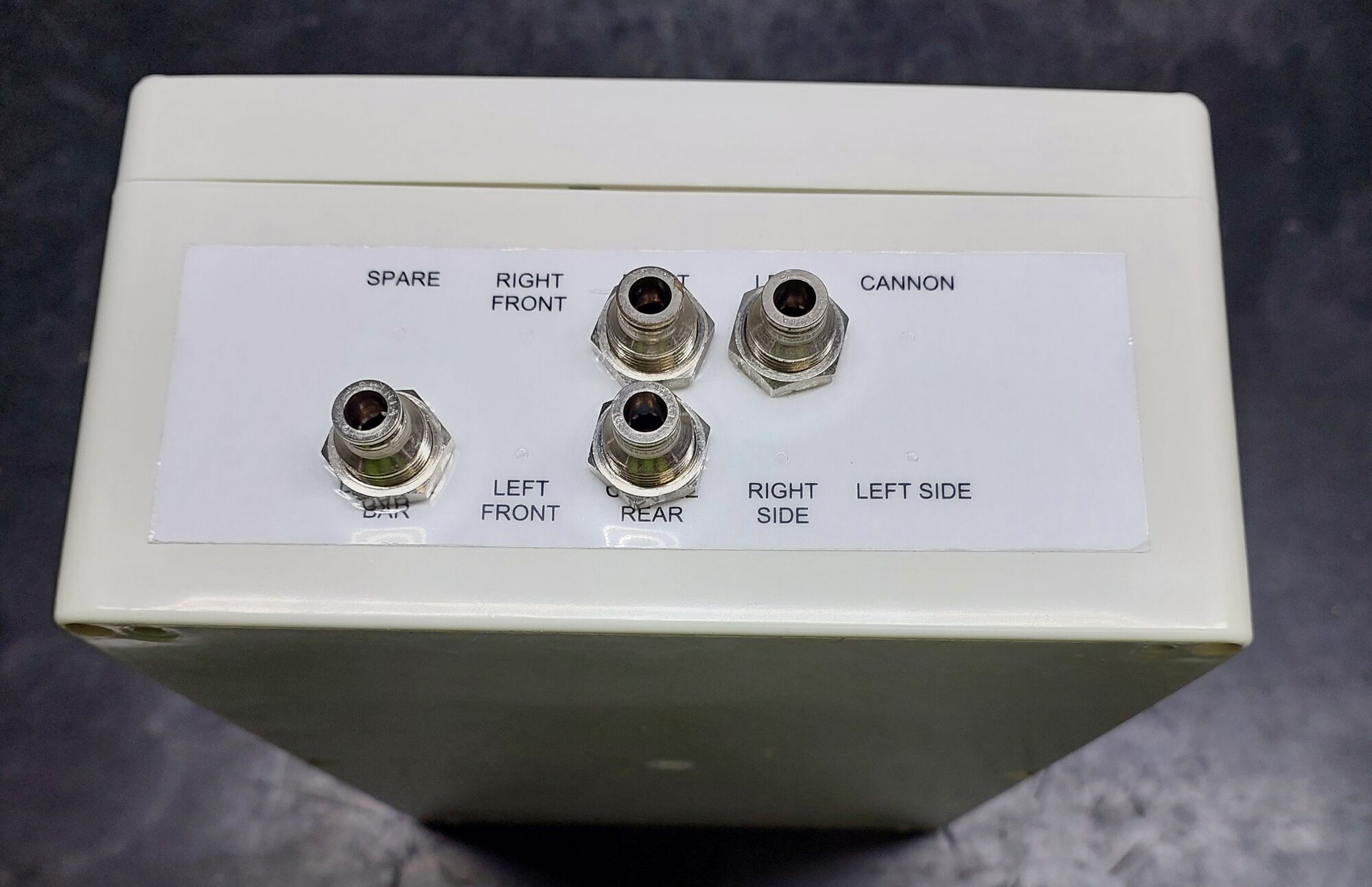

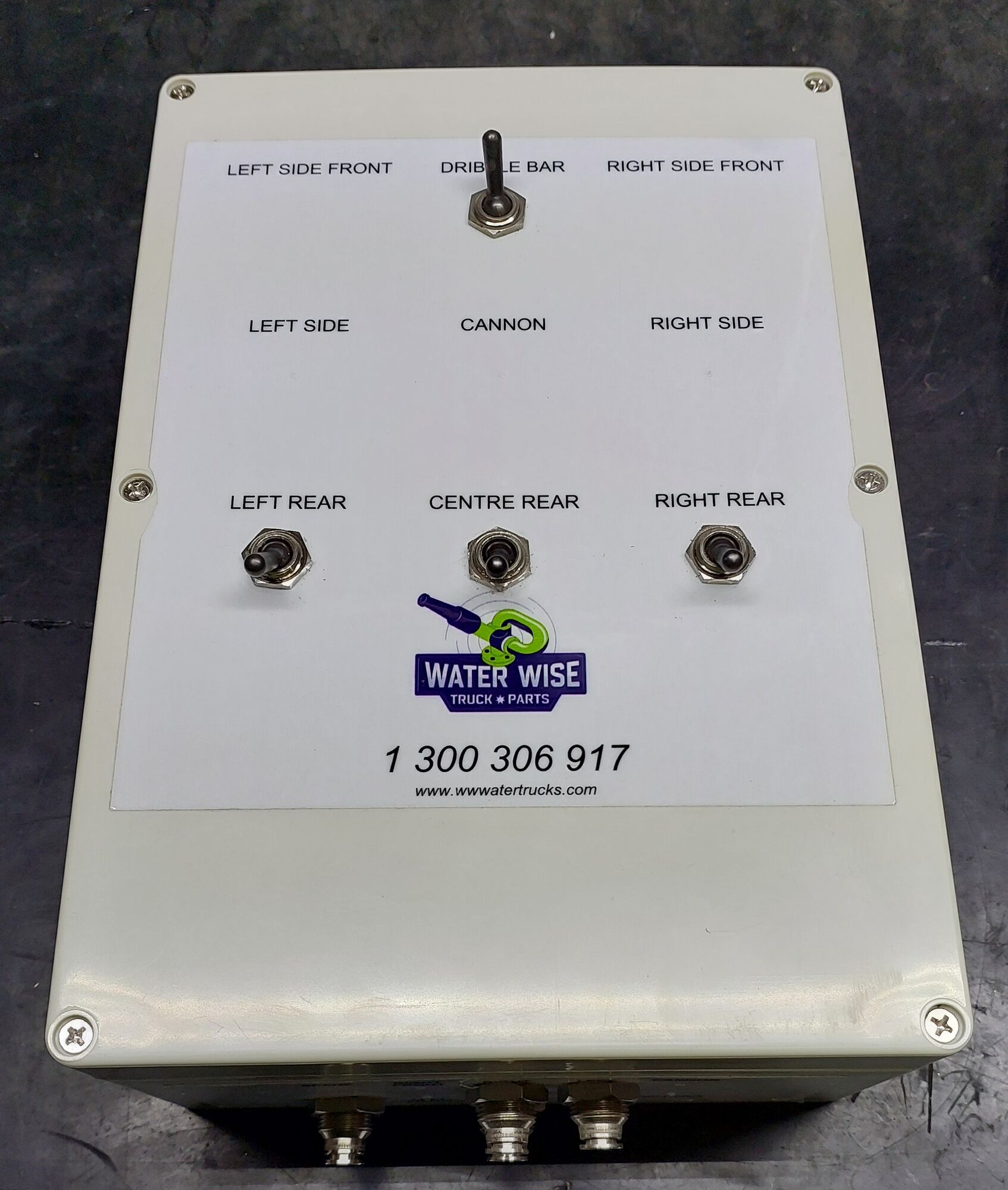

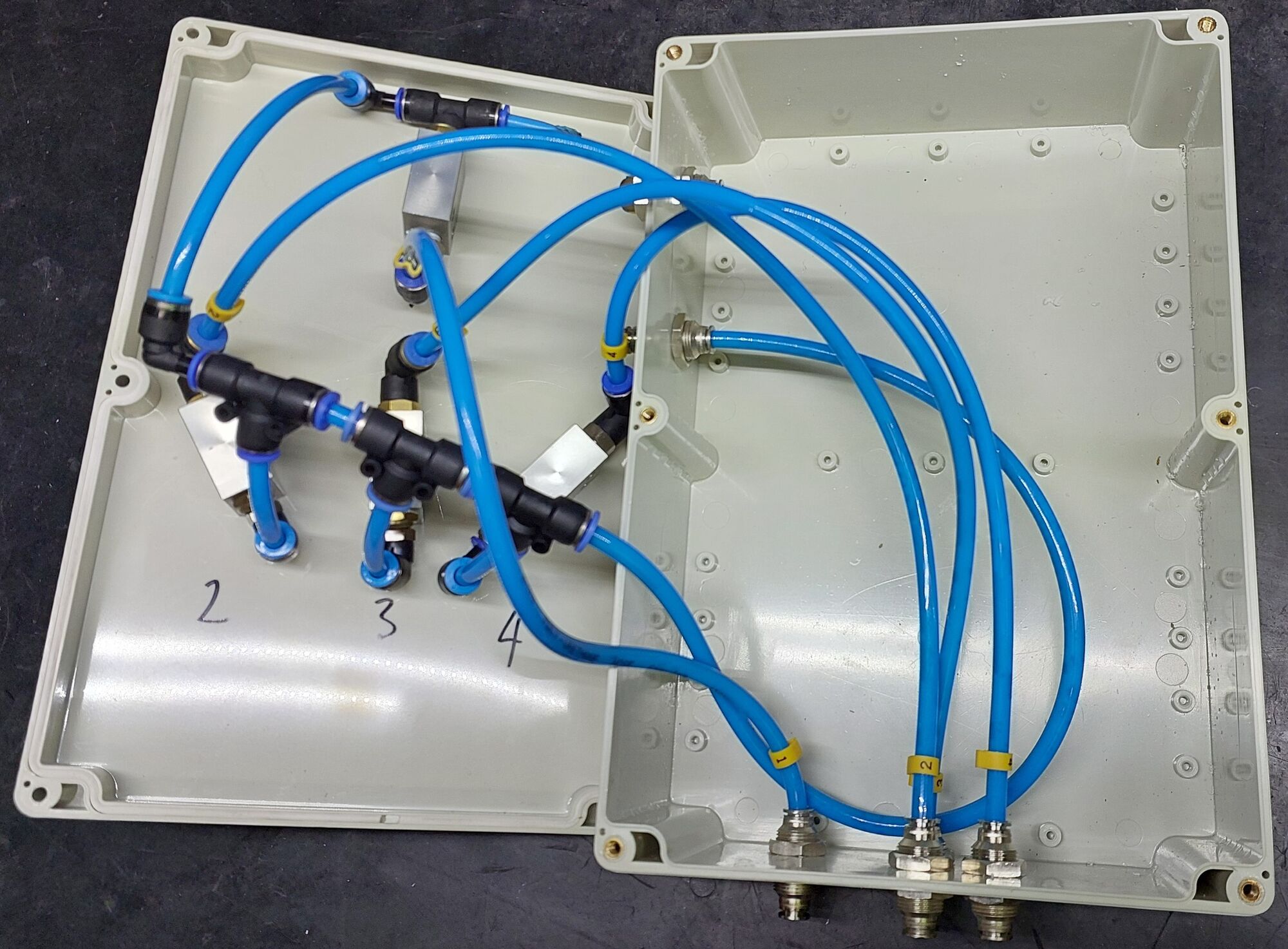

The box comes with a single air inlet (6mm air line), four (4) Pneumatic (aluminium body & metal toggle) toggle switches.  Three (3) switches are set as Normally Open (N/O) for spray valves and One (1) switch is set as Normally Closed (N/C) for a single acting or one way butterfly valve all switches are plumbed to 6mm bulkheads in an plastic enclosure (185 x 260 x 95)  individually labelled on the box face plate & outlet or bulkhead face plate.

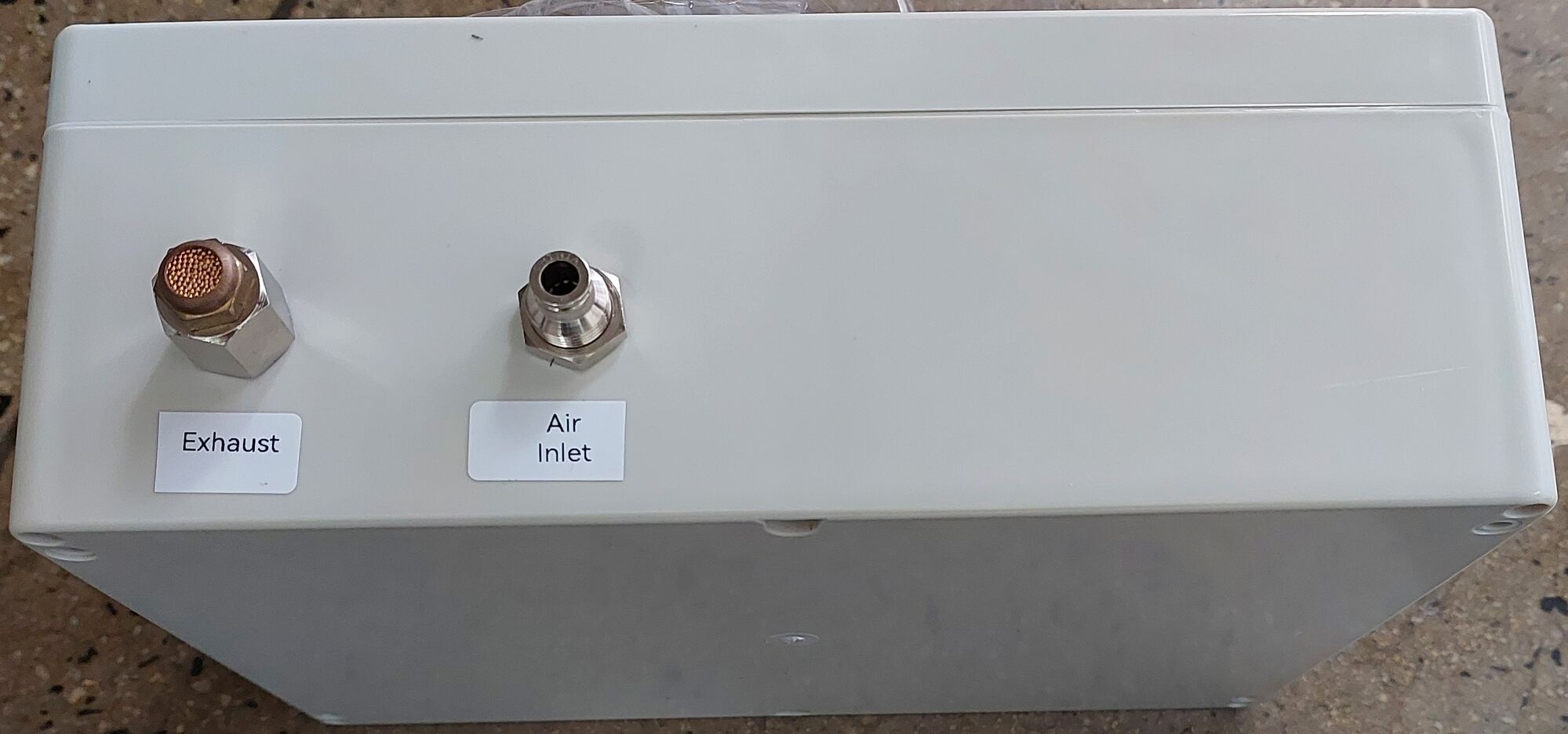

The enclosure is also fitted with a brass exhaust.

RRP $642.81

SHIPPING

Dimensions: 0.185m (w) x 0.26m (l) x 0.095m (h)
Weight: 1.5kg
Cubic: 0.00457m3



(CS110121PLPN-WT-P4-SP)

SKU CS110121PLPN-WT-P4-SP
Brand Water Wise Truck Parts
Shipping Weight 1.5000kg
Shipping Width 0.185m
Shipping Height 0.095m
Shipping Length 0.260m
Shipping Cubic 0.004569500m3
