SPECIAL - Pneumatic Switch Control Box - Plastic Enclosure (3 Function)
PART #: CS110121PLPN-WT-P3-SP
SPECIAL - Air Switch Control Box - Plastic Enclosure
RRP $567.81
$317.97
SAVE $249.84 (44%)
In Stock
Calculate Shipping
Ship Using Your Freight Account - FREE
We can ship your order on your own freight Account. Just leave you Freight Company's Name, The name of your account and your account number in the box below and we will do the rest.
We can ship your order on your own freight Account. Just leave you Freight Company's Name, The name of your account and your account number in the box below and we will do the rest.
Express Post - $38.40 (ETA: 1 days)
Express Post satchels can be deliverd to PO Boxes Australia wide.
Express Post satchels can be deliverd to PO Boxes Australia wide.
Pick Up - FREE (ETA: 1 days)
Pick up is available form our Footscray warehouse Located at 15 Mephan Street, Footscray, Victoria. items can be collected between 9:00AM to 4:30PM Monday to Thursday and 9.00am to 12.00pm Fridays. Please bring a copy of your invoice with you.
Pick up is available form our Footscray warehouse Located at 15 Mephan Street, Footscray, Victoria. items can be collected between 9:00AM to 4:30PM Monday to Thursday and 9.00am to 12.00pm Fridays. Please bring a copy of your invoice with you.
SPECIAL PRICING - WELL BELOW COST
44% DISCOUNT
ORIGINAL PRICE $567.81

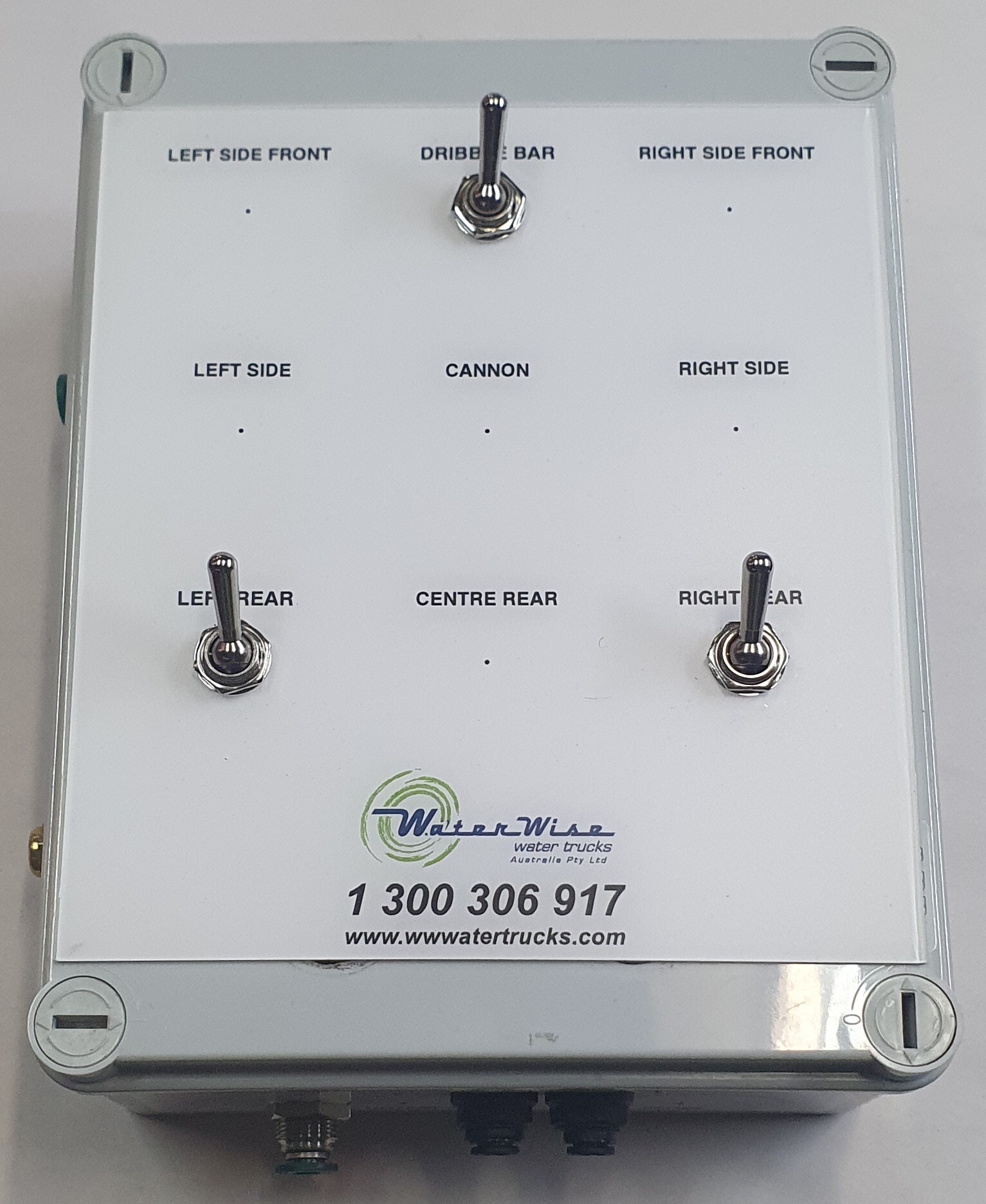

Pneumatic control box can be used to control spray valves & butterfly valves (3 Function)

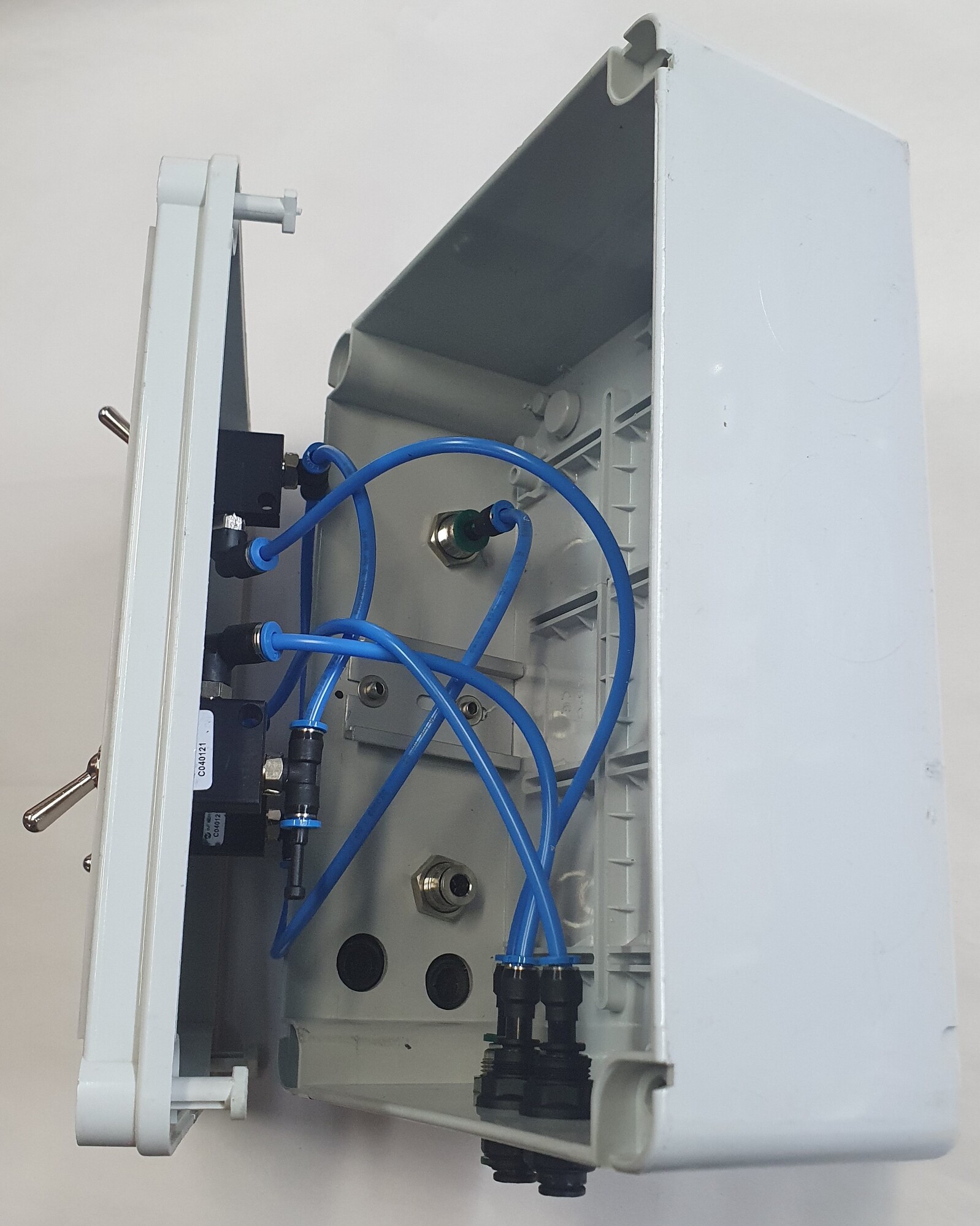

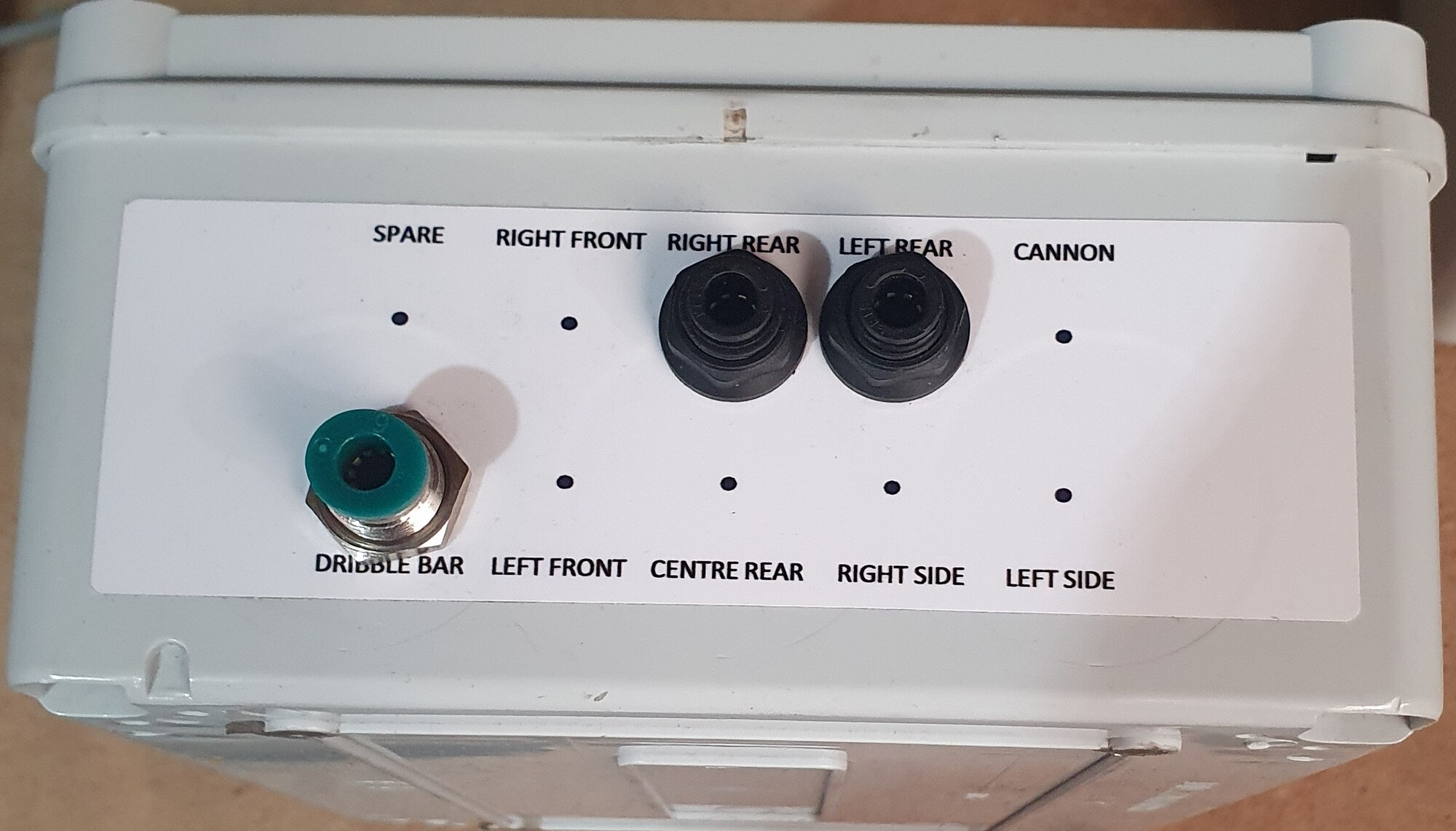

The box comes with a single air inlet (6mm air line), three (3) Pneumadyne (aluminium body & metal toggle) pneumatic toggle switches. Two (2) switches are set as Normally Open (N/O) for spray valves and One (1) switch is set as Normally Closed (N/C) for a single acting or one way butterfly valve all switches are plumbed to 6mm bulkheads in an plastic enclosure (180 x 230 x 90) individually labelled on the box face plate & outlet or bulkhead face plate.
The box comes with a single air inlet (6mm air line), three (3) Pneumadyne (aluminium body & metal toggle) pneumatic toggle switches. Two (2) switches are set as Normally Open (N/O) for spray valves and One (1) switch is set as Normally Closed (N/C) for a single acting or one way butterfly valve all switches are plumbed to 6mm bulkheads in an plastic enclosure (180 x 230 x 90) individually labelled on the box face plate & outlet or bulkhead face plate.
The enclosure is also fitted with a brass exhaust.
RRP $567.81
SHIPPING
Dimensions: 0.18m (w) x 0.23m (l) x 0.09m (h)
Weight: 0.9kg
Cubic: 0.0037m3
(CS110121PLPN-WT-P3-SP)
| SKU | CS110121PLPN-WT-P3-SP |
| Brand | Water Wise Truck Parts |
| Shipping Weight | 0.9000kg |
| Shipping Width | 0.180m |
| Shipping Height | 0.090m |
| Shipping Length | 0.230m |
| Shipping Cubic | 0.003726000m3 |
